MTF Series – MTF 6-L
MTF Series – MTF 6-L

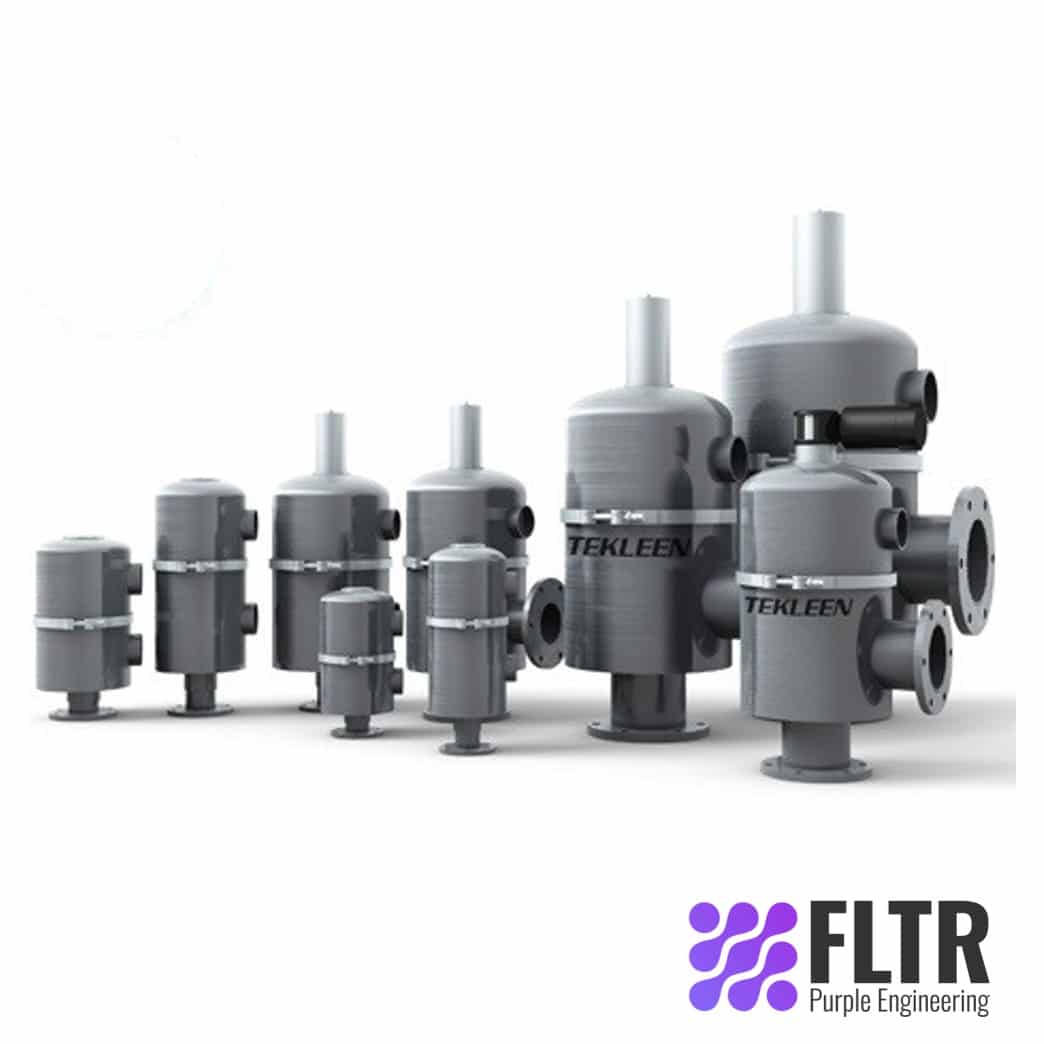

MTF 6-L – TEKLEEN® Minitwist series are low-flow, fully automatic, self-cleaning water filtration systems. These filters can handle flow rates from 10-20,000 gpm with screens as small as 10µ. The MTF filters use very little water for rinsing so the main flow is not interrupted. MTF Series are rated to 150 psi and up to 210°F. Filters are made with a 316L stainless steel body and are designed to satisfy a wide variety of industrial and irrigation application requirements.
Request a Quote for
MTF Series – MTF 6-L
Send us the details and we will get back to you.
TEKLEEN® Minitwist series are low-flow, fully automatic, self-cleaning water filtration systems. These filters can handle flow rates from 10-20,000 gpm with screens as small as 10µ. The MTF filters use very little water for rinsing so the main flow is not interrupted.
MTF Series are rated to 150 psi and up to 210°F. Filters are made with a 316L stainless steel body and are designed to satisfy a wide variety of industrial and irrigation application requirements.
Standard Features
- Line Sizes: 1″ – 24″
- Flow Rate: 10 – 20,000 GPM
- Screen Opening: 10µ – 4,000µ
- Material: SST or Carbon Steel
- Pressure: 40 – 150 PSI
- Temperature to: 160°F (210°F Optional)
- Flush Valve Size: 1″, 1.5″, & 2″
- NSF Approved
Basic Functionality
Contact us to request a quote today.
| Filter Model | Flange Size | Screen Area | Max Flow | Empty Weight |
| (mm) | (m²) | (m³/h) | (kgs) | |
| MTF 6-L | 150 | 0.4645 | 227 | 79.45 |
