1SY / 1UY / 1 HY Series – Filters for Liquid and Gas Applications
Product Code: 1SY / 1UY / 1 HY Series – Filters for Liquid and Gas Applications

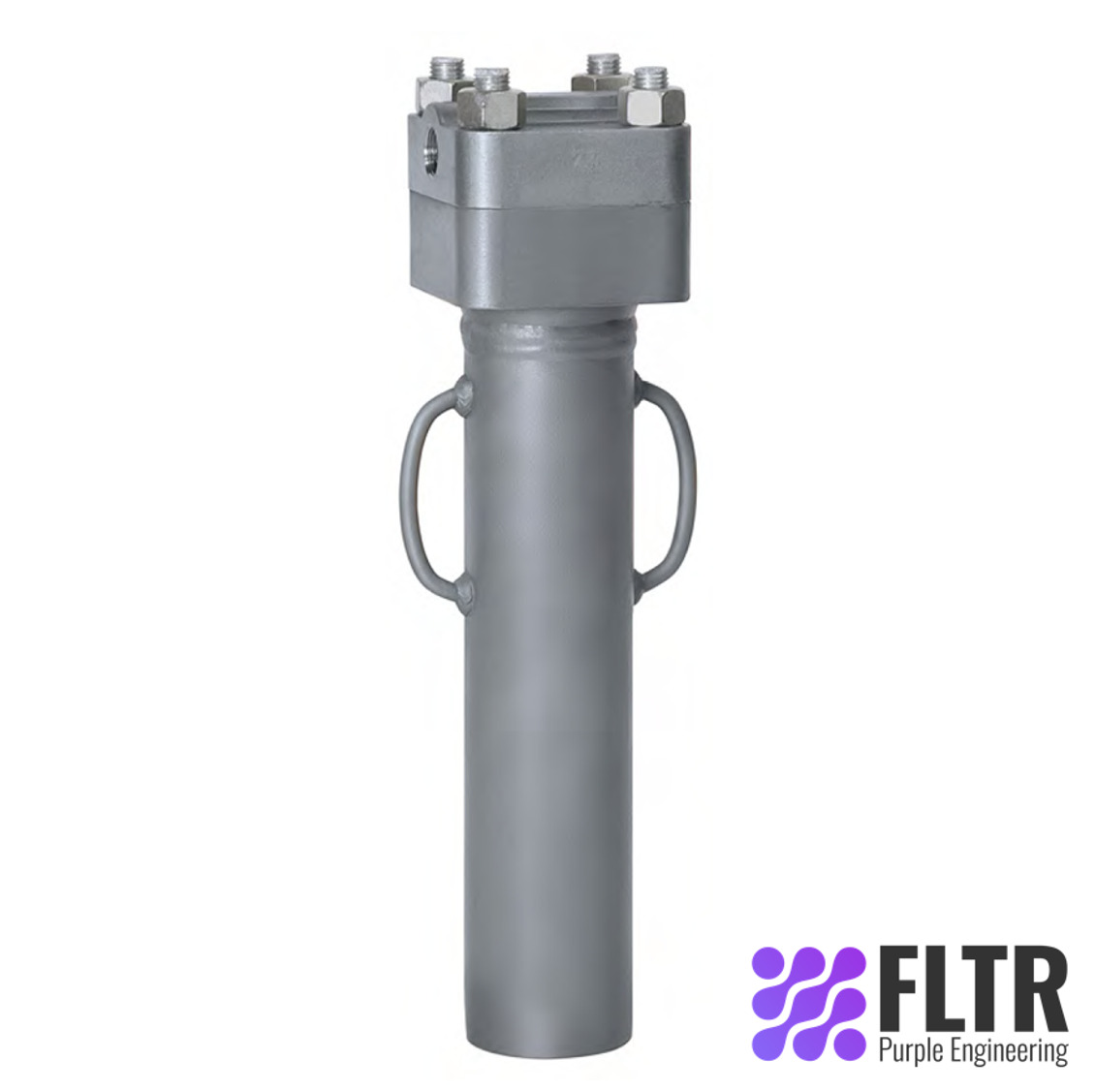

The 1SY, 1UY and 1HY (formerly Nowata) cartridge filter housings are available in 1, 2, 3 or 4 cartridge length models. These high pressure housings feature three materials of construction: The carbon steel 1SY model, the 316 stainless steel 1UY model, and the Hastelloy C276 1HY model. All models are available in either 1440 or 3000 psi. The 3000 psi model has lifting handles located on the body. These housings hold Double Open End (DOE) cartridge elements which are mounted on a rigid support post with a threaded end seal. The standard filter cartridge dimensions are 2-1/2” outside diameter by 1” inside diameter.



Request a Quote for

1SY / 1UY / 1 HY Series – Filters for Liquid and Gas Applications

Send us the details and we will get back to you.

  • Supporting Document (Optional)
  • Max. file size: 25 MB.
  • Hidden

CARTRIDGE FILTER HOUSINGS
Carbon Steel, 316 Stainless Steel, or Hastelloy Construction
High Pressure Filters (1440 or 3000 PSI) for Liquid and Gas Applications

Single cartridge housing models (1C) hold either a 9-3/4” or a 10” cartridge element. The 9-3/4” or 10” length DOE cartridge elements can stack together on the support post of the (2C), (3C) and (4C) housing models. A single, 19-1/2” or 20” long cartridge can be utilized in the (2C) model. . Likewise, a single 29-1/4” or 30” length cartridge can be installed in the (3C) model, or 3 single lengths can be used. The (4C) model holds 4 single lengths or one 40” long cartridge.

The filter head has inline, 1” FNPT, Inlet and Outlet connections. The tubular body is flange mounted to the head. The body of the filter is connected to the head by 4 bolts and sealed with an o-ring. Each model has a 1/4” FNPT, drain. The head mounts directly in the flow line. The filter may be mounted in any position. The fluid or gas passes through the cartridge media where particles of contaminant are removed and trapped. The clean fluid or gas then flows into the rigid cartridge support post and out of the housing.

  • Available in 1, 2, 3 or 4 cartridge length models
  • 1440 or 3000 psi working pressure
  • Multiple o-ring materials available (Buna is standard)
  • For fluid filtration, gas filtration and gas/liquid coalescing
  • 1” internal pipe thread inlet/outlet connections 1/4” internal pipe thread drain is standard
  • Optional 1/4” internal pipe thread differential pressure ports
  • Built to ASME code standards (optional U stamp available

OPTIONAL CONSTRUCTION FEATURES

• 1” FNPT, internal pipe thread, 1” flanged or 1” socket weld connections.
• Viton, Ethylene Propylene and Florocarbon Encapsulated Viton seals.
• Vent or differential taps.
• Reverse flow gas coalescing version for lube oil separation.

Contact us to request a quote today.

Model No. of Cartridges Max Pressure (psi) Weight (lbs) A
Overall Length
B
Length to Piping
C(1)
Body Length
D
Head Size

Body Diameter
F(2)
Bolt Size (4 each)
1SY1 / 1UY1 / 1HY1 1C 1440 27 14½ 13 12 45∕8 5∕8
1SY2 / 1UY2 / 1HY2 2C 36 24½ 23 22 45∕8 5∕8
1SY3 / 1UY3 / 1HY3 3C 45 34½ 33 32 45∕8 5∕8
1SY4 / 1UY4 / 1HY4 4C 54 44½ 43 42 45∕8 5∕8
1SY1 / 1UY1 / 1HY1 1C 3000 85 16 14¼ 13 63∕8 1
1SY2 / 1UY2 / 1HY2 2C 110 26 24¼ 23 63∕8 1
1SY3 / 1UY3 / 1HY3 3C 135 36 34¼ 33 63∕8 1
1SY4 / 1UY4 / 1HY4 4C 160 46 44¼ 43 63∕8 1



Dimensions in inches except where noted. Due to our continuing program of product improvement, specifications are for reference only and subject to change without notice. Dimensions are approximate values and not intended for piping specifications.
NOTES:

(1) Additional clearance required to remove housing body
(2) Closure bolt diameter.
(*3) Handles provided on the 3000 psi model only. (*4) 1/4 Inch FNPT drain.

1SY Series Carbon Steel Construction

The 1SY model head and body are made of carbon steel. The filter has, as standard, a brass internal cartridge support and retainer. Brass internals are used for water and mildly corrosive filter applications.
For use in glycol filtration, order the no cost option of plated carbon steel internals. 316 stainless steel internals are also available. The housing seal is a Buna o-ring. All cartridge models are available in either 1440 or 3000 psi working pressures.



1UY 316 Series Steel Construction

The 1UY model head and body are made of 316 stainless steel for use in corrosive applications.
This filter unit has a 316 stainless steel internal cartridge support and retainer. The housing seal is a Buna o-ring. 316 stainless steel bolting is available on special order. All the models are available in either 1440 or 3000 psi working pressures.



1HY Hastelloy C276 Construction

The 1HY model head and body are made of Hastelloy C276 for use in highly corrosive applications.
The filter has Hastelloy C276 internal cartridge support and retainer. The housing seal is a Buna o-ring. Four heat treated carbon steel bolts attach the body to the head. All models are rated for either 1440 or 3000 psi working pressure.

High Pressure Filters (1440 or 3000 PSI) for Liquid and Gas Applications
