Features
• Fire Service Protection: Designed to protect water spray system components from clogging.
• Durable Construction: Epoxy-coated steel body with flanged connections for reliability.
• Certified Quality: UL listed and FM approved for assured performance.
• High Pressure: Designed for maximum working pressure of 175psi (12.1 bar).

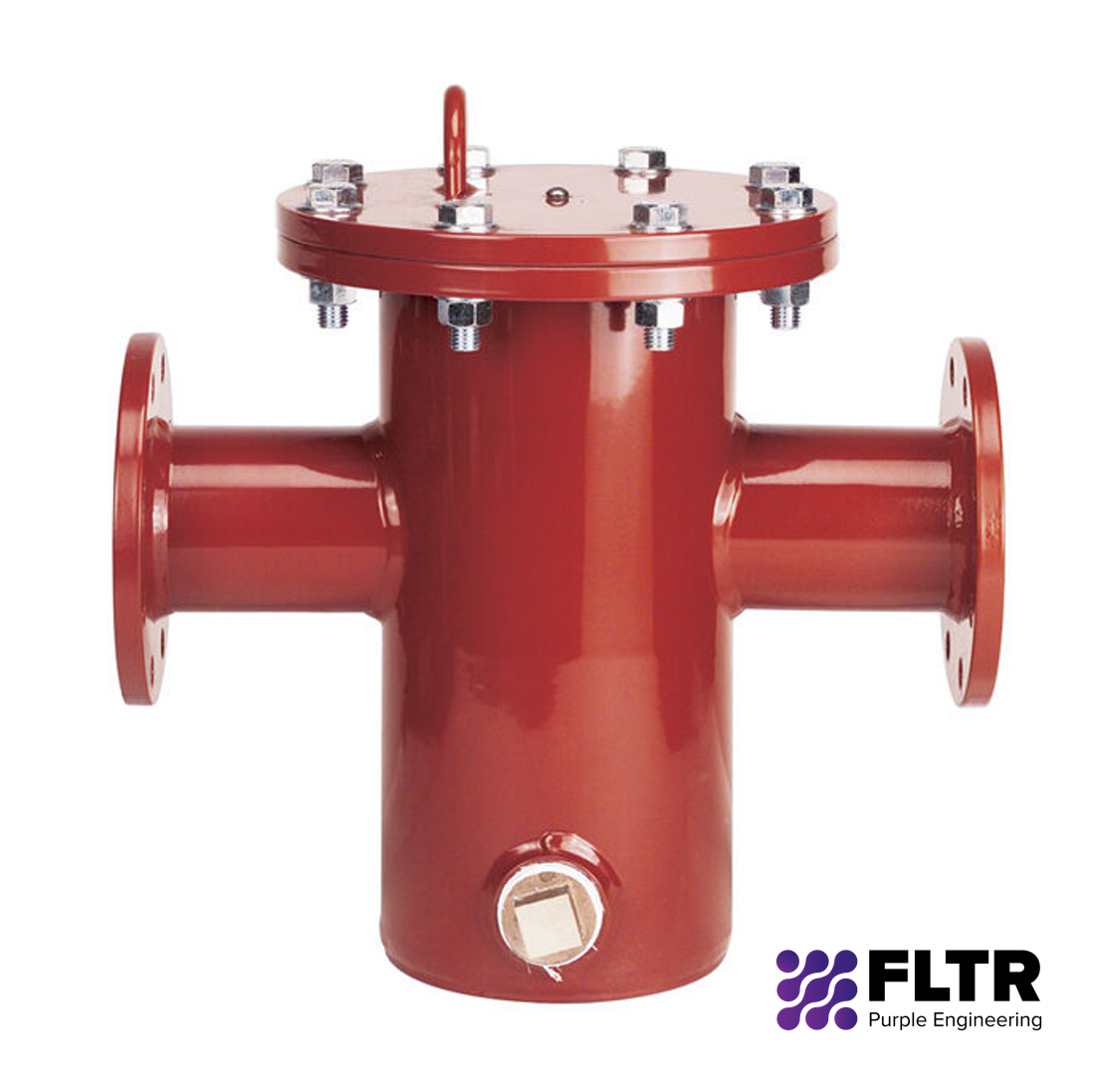

Series 97FB-FSFE
UL/FM Fire Service Strainers Sizes: 3″ – 10″
Series 97FB-FSFE UL/FM Fire Service Strainers are used in water spray fire protection systems to prevent clogging caused by particles. These strainers feature an epoxy-coated steel body with flanged connections, a large solids trap, and a 304 stainless steel strainer element, ensuring optimal performance and easy maintenance.

Features
• Epoxy-Coated Steel Body: Provides durability and corrosion resistance.
• Convenient Design: Angle-designed basket and large solids trap to minimize screen blockage.
• Reliable Connections: Flanged connections ensure secure and reliable installation.
• High-Quality Components: Includes a 304 stainless steel strainer element and cleanout port.

Materials
• Body and Cover: Corrosion-resistant fusion-bonded epoxy-lined and coated steel.
• Screen: 304 stainless steel, 0.25 diameter perforation.
• Clean-Out Plug: Brass or bronze.
• Flanges: AWWA Class “D”.
Pressure (Non-Shock) – Temperature
Maximum Working Pressure: 175psi (12.1 bar) Water Temperature: Up to 140°F (60°C)

Standards
The dimensions and drilling of flanges conform to ANSI B16.1, Class 125 and Class 150 flanges.

Typical Service Applications
These strainers are suitable for various fire service protection applications, including:
• Water spray systems
• Automatic water sprinklers
• Fire protection system components

Opt for our Series 97FB-FSFE UL/FM Fire Service Strainers for efficient and durable filtration in fire service applications. Contact FLTR to request a quote today!
