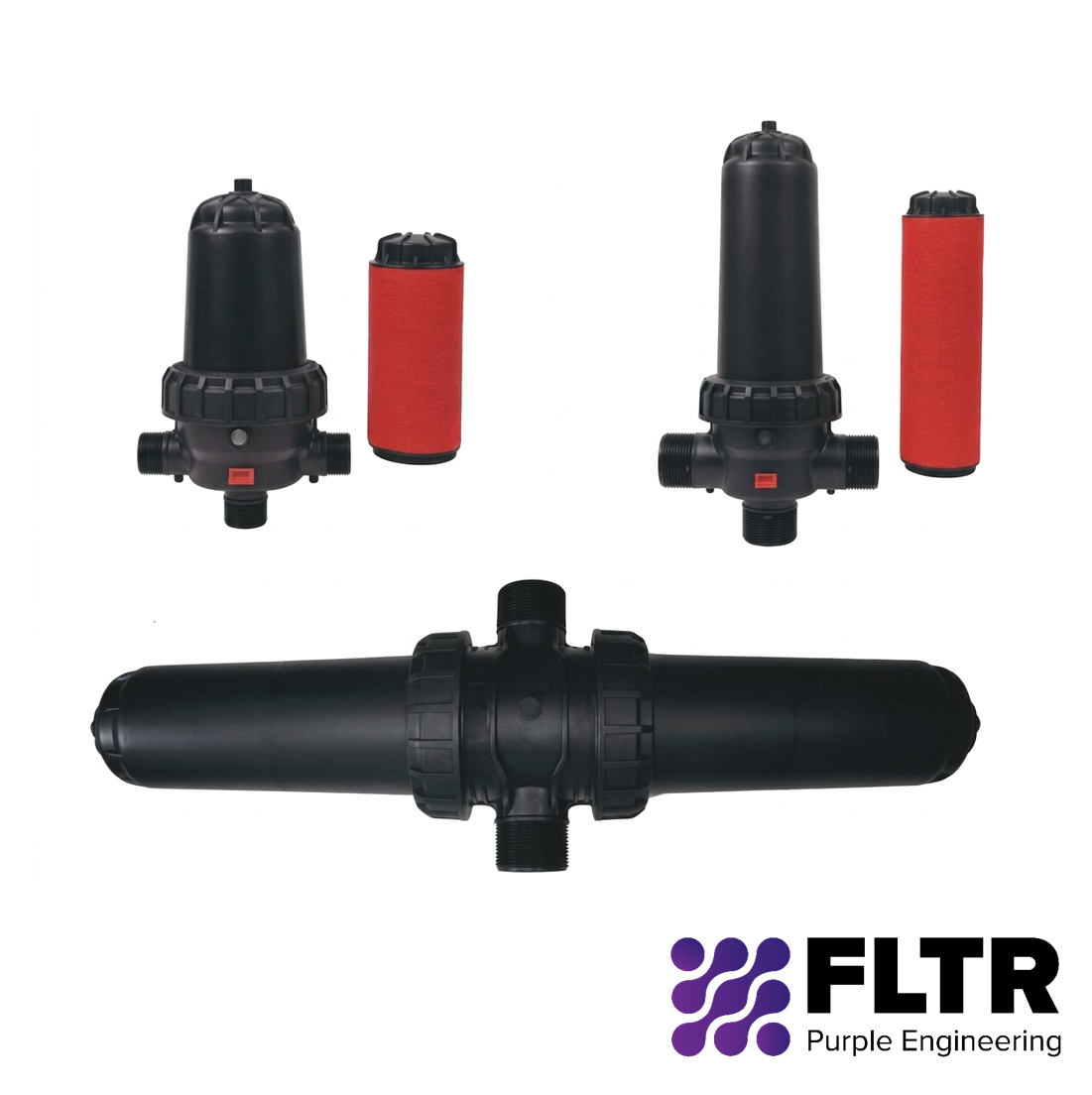

AGL Disc Filters
AGL Disc Filters
AGL disc filters are manufactured in technical plastic with a hydraulic design, which miniminimizes the head loss, favors energy saving and optimizes its performance.
Request a Quote for
AGL Disc Filters
Send us the details and we will get back to you.
AGL disc filters are manufactured in technical plastic with a hydraulic design, which Mini minimizes the head loss, favors energy saving and optimizes its performance.
- Manual cleaning
- Low cost with ellectent performance
- Resistant to chemical products
- Easy installation, easy maintenance
- Water and enery saving
- BSP, NPT or grooved connections for option which can be installed in any position
- Maximum quality and safety in filtration
- Screw locking system
- Equipped with pressure gauges intakes
- Fulfillment of any filtration needs
Contact us to request a quote today.
| MODEL | CONNECTIONS BSP/NPT |
FILTRATION GRADES (mesh) |
MAX FLOW (m3/h) |
MAX PRESSURE (bar) |
FILTERING SURFACE (cm2) |
WEIGHTS (kg) |
| F63TD-AGL | 2″ | 40/80/120/150/200/300 | 30 | 10 | 1050 | 3.6 |
| F63TD-L-AGL | 2″ | 40/80/120/150/200/300 | 30 | 10 | 1660 | 4.8 |
| F90TD-X-AGL | 3″ | 40/80/120/150/200/300 | 40 | 10 | 1050 | 4 |
| F90TD-AGL | 3″ | 40/80/120/150/200/300 | 50 | 10 | 1660 | 5.3 |
| F90HD-AGL | 3″ | 40/80/120/150/200/300 | 55 | 10 | 2100 | 7 |
| F90HDL-AGL | 3* | 40/80/120/150/200/300 | 60 | 10 | 3320 | 9.5 |
Applied to medium flow rate water filtering for landscape irrigation, agriculture irrigation, municipal garden irrigation.
