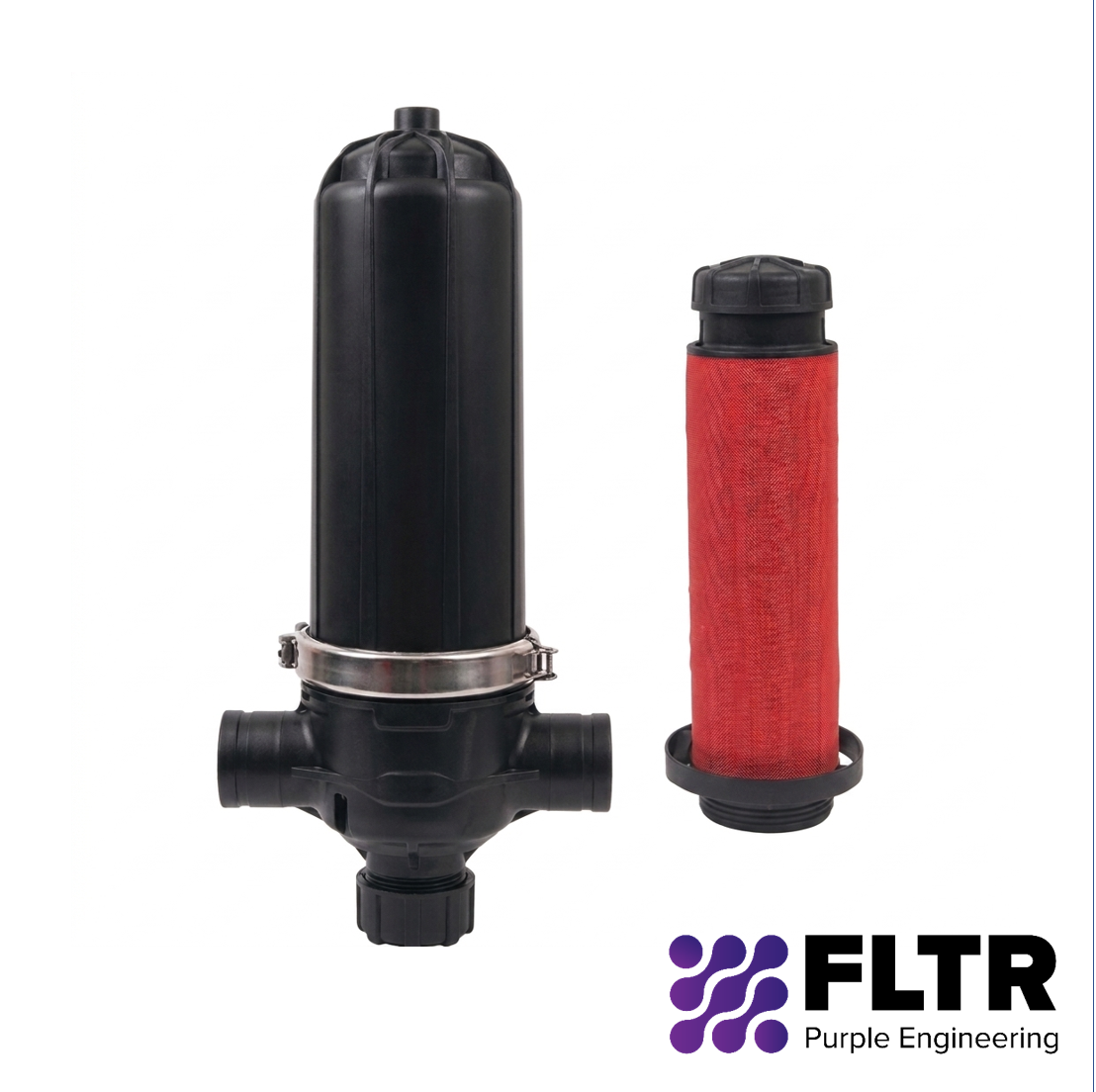

Automatic Disc Filters

Manufacturer:

Automatic Disc Filters

Automatic disc filters that allow obtaining the maximum filtration quality and minimum energy consumption during each backflushing process. Modular configurations can be designed to customer preference or space availability. Going with hydraulic backwash valves, as well as a built-in computer chip for automatic scheduling work, it works as an automatic unattended water filtration system, which ensures a continuous water supply while discharging the sewage.

Request a Quote for

Automatic Disc Filters

Send us the details and we will get back to you.

  • Supporting Document (Optional)
  • Max. file size: 25 MB.
  • This field is hidden when viewing the form
Description

Automatic disc filters that allow obtaining the maximum filtration quality and minimum energy consumption during each backflushing process. Modular configurations can be designed to customer preference or space availability. Going with hydraulic backwash valves, as well as a built-in computer chip for automatic scheduling work, it works as an automatic unattended water filtration system, which ensures a continuous water supply while discharging the sewage.

  • Automatic cleaning
  • Water and energy saving.
  • Multiple filtration grades
  • Self-cleaning filtering element
  • Modularity, versatility, compatibility
  • Compact assembled system for easy transportation and installation
  • Manufactured in plastic material
  • Easy installation, easy maintenance
  • Resistant to chemical products
Ordering Information

Contact us for request a quote today.

Specifications
MODEL CONNECTIONS
BSP/NPT
FILTRATION
GRADES
(mesh)
MAX FLOW
(m3/h)
MAX
PRESSURE
(bar)
BACKWASH FILTERING
PRESSURE
(bar)
SURFACE
(cm?)
WEIGHTS
(kg)
F63TDZ 2′ 40/80/120/150/200/300 25 10 1.5
1020
7.9
F63TDZ-L 2′ 40/80/120/150/200/300 30 10 1.8
1492
9.3
F90TDZ 3″ 40/80/120/150/200/300 32 10 1.8
1492
9.4
F90HDZ 3″ 40/80/120/150/200/300 50 10 2.0
2040
13.7
F90HDZ-L 3″ 40/80/120/150/200/300 55 10 2.0
2984
15.1
F110HDZ 4″ 40/80/120/150/200/300 50 10 2.0
2040
13.7
F110HDZ-L 4″ 40/80/120/150/200/300 64 10 2.0
2984
15.6

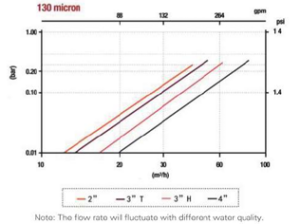

Performance

Applications

Contact us for more information.
