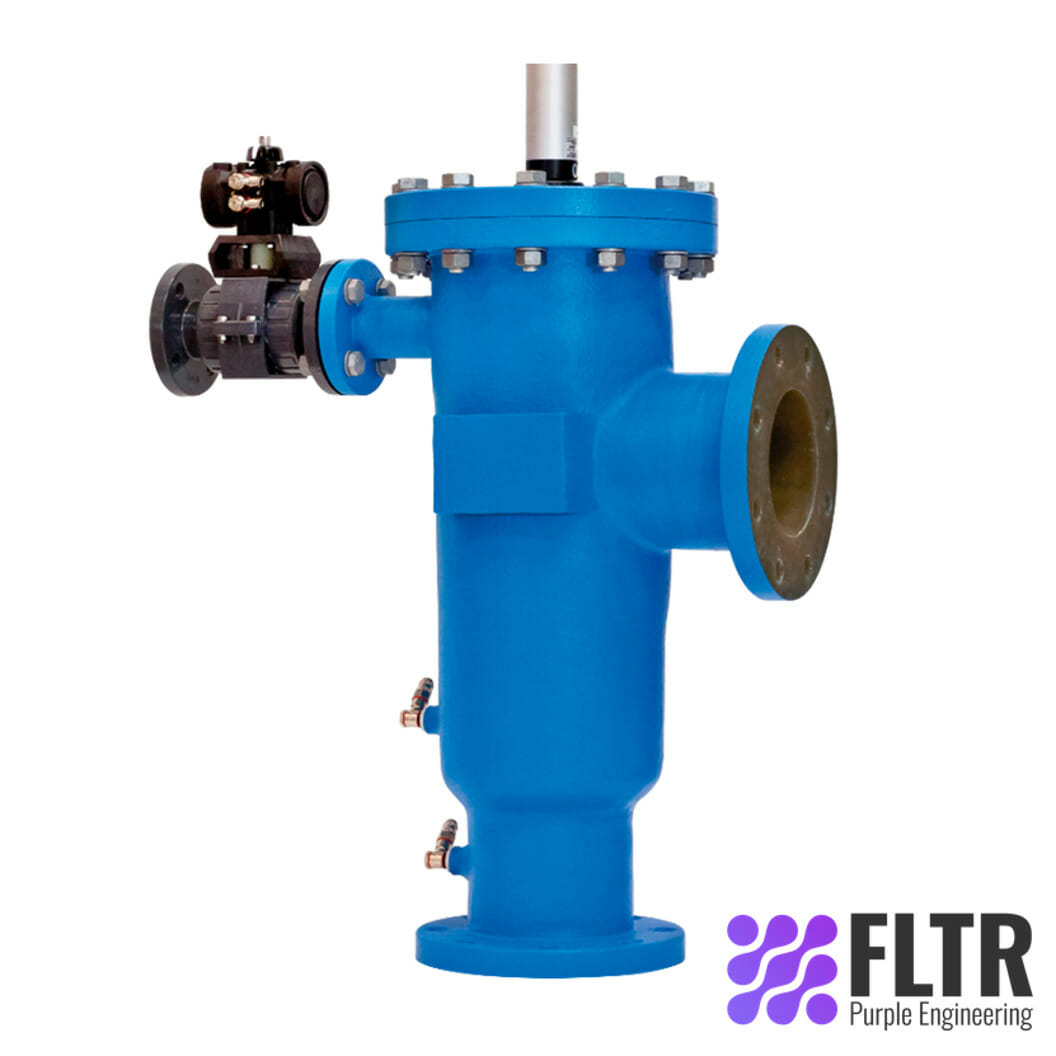

BSG – Single Basket Bernoulli Filter
Product Code: BSG - Bernoulli

The BSG product line was introduced in order to meet the tough corrosion challenges faced by products operating with seawater. With its design in GRP (glass fiber reinforced polyester) the BSG filter benefits from material durability and large weight savings. In the BSG product line, capacities of up to 6400 m3/h can be supported among the eleven models, DN 100 (4”) –DN700 (28”), offered by us.

pdf

Download Product PDF
Add to Quote Request
Product Added to Quote Successfully.
View Quote

Can't find what you're looking for?

Send us the details and we will get back to you.

  • Supporting Document (Optional)

There are two types of filter baskets; perforated or wedge-wire. Our standard filter basket range is made in stainless steel (316L) or titanium but other metals like Duplex stainless steel and Super Duplex stainless steel can also be used if required.

Contact us to request a quote today.

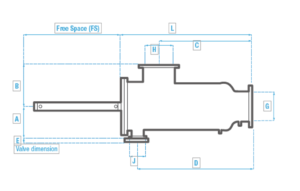

Filter type Flow capacity Dimensions (mm)
Max (l/s) Flush (l/s) A B C D E L FS G/H J Weight (kg)
FILTER BODY IN PVC
BSP 65 17 2 96 205 295 380 built in 460 330 DN 65 BSP 1″ 12
BSP 80 23 3 180 235 380 485 150 630 430 DN 80 DN 40 17
BSP 100 36 4 185 275 440 550 150 720 450 DN 100 DN 40 24
FILTER BODY IN GRP
BSG 100 36 4 185 200 385 495 212 630 450 DN 100 DN 40 18
BSG 150 83 9 240 275 530 675 212 820 780 DN 150 DN 50 40
BSG 200 145 17 310 350 705 890 292 1060 790 DN 200 DN 65 60
BSG 250 235 26 350 400 825 1050 52 1260 940 DN 250 DN 100 105
BSG 300 325 37 400 475 1000 1260 52 1480 1110 DN 300 DN 100 160
BSG 350 450 50 400 475 1100 1380 52 1610 1250 DN 350 DN 100 180
BSG 400 580 67 450 600 1240 1540 52 1790 1370 DN 400 DN 100 300
BSG 450 735 77 500 650 1450 1800 56 2030 1640 DN 450 DN150 500
BSG 500 910 105 600 700 1600 2050 56 2340 1860 DN 500 DN 150 550
BSG 600 1300 150 650 900 1800 2250 56 2620 2060 DN 600 DN 150 850
BSG 700 1770 200 750 850 2250 2780 60 3170 2450 DN 700 DN 200 1300
FILTER BODY IN AISI 316L
BSS 80 23 3 165 165 340 455 90 570 430 DN 80 BSP 1¼” 30
BSS 100 36 4 200 175 350 465 115 590 410 DN 100 BSP 1½” 37
BSS 150 83 9 250 250 500 650 115 770 780 DN 150 BSP 2″ 90
BSS 200 145 17 275 300 630 820 155 970 780 DN 200 BSP 2½” 140
BSS 250 235 26 325 350 750 975 52 1150 940 DN 250 DN 100 210
BSS 300 325 37 380 380 900 1160 52 1350 1100 DN 300 DN 100 270
BSS 400 580 67 460 450 1050 1360 52 1570 1370 DN 400 DN 100 550

Single Basket Bernoulli Filter Design Specifications - FLTR - Purple Engineering

Min. operating pressure ≥ 0,3 bar1
Max. operating pressure 10 bar (g)
Max. operating temp. BSP: 40°C / BSG: 60°C2 / BSS: 80°C
Power supply 100-240V AC or DC
45-65 Hz ( AC)
Instrument air pressure min 6 bar g

Since the fundamental purpose of a Bernoulli Filter is to reduce the content of suspended solids in water from natural sources, the scope of applications ranges from pre-filtration in water treatment to the protection of plate heat exchangers and sensitive process equipment such as spray nozzles. It is used in a variety of industries ranging from power generation, petrochemicals, and HVAC to steelmaking, aquaculture, pharmaceuticals, pulp and paper, and foods and beverages.
