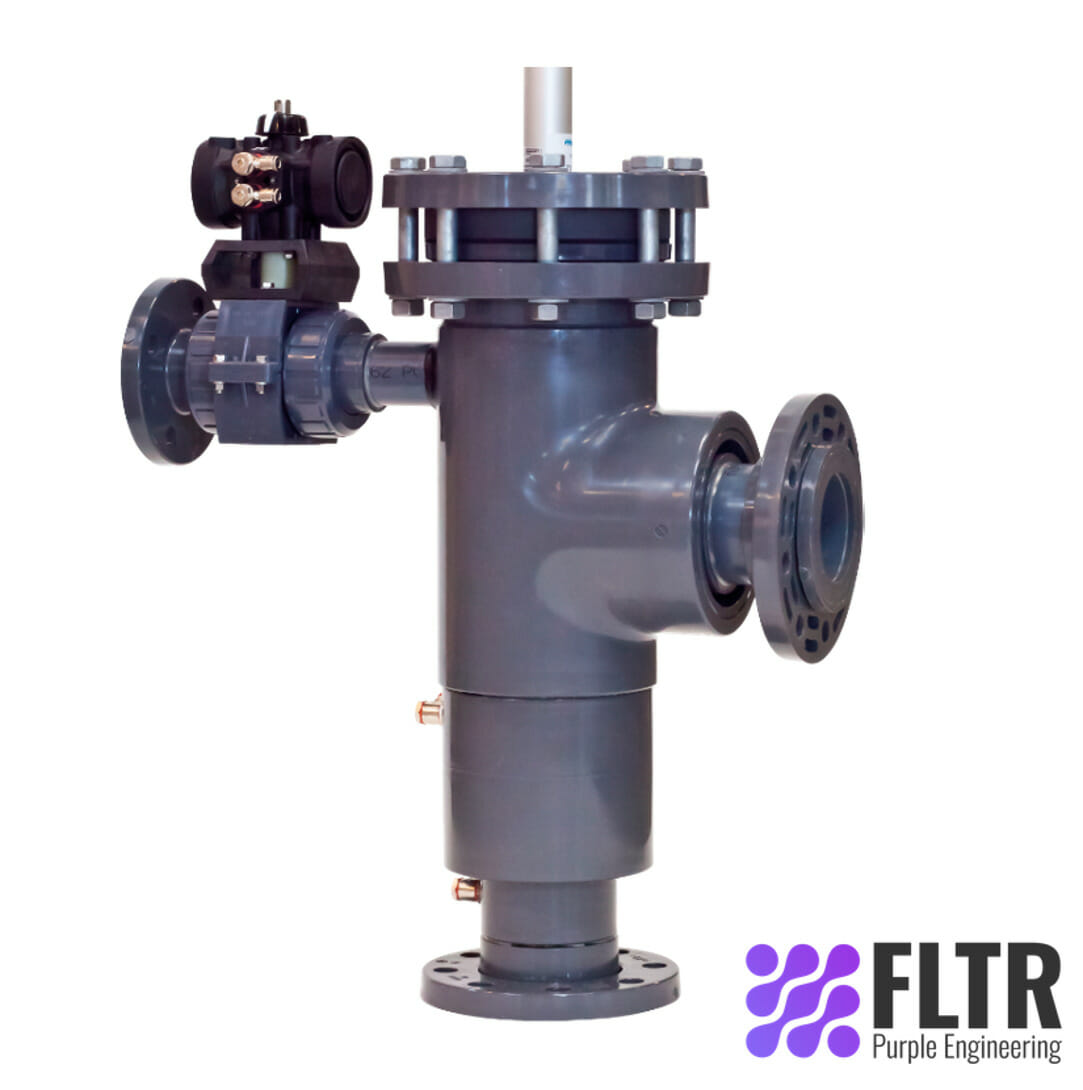

BSP – Single Basket Bernoulli Filter
The BSP product line was developed to offer a cost-effective option for small capacities. The filter body in a BSP filter is made of PVC (polyvinyl chloride), which provides high chemical resistance in seawater applications. The BSP product line consists of three models, DN65 (2,5″) – DN100 (4″), handling capacities of up to 130 m3/h.
Request a Quote for
BSP – Single Basket Bernoulli Filter
Send us the details and we will get back to you.
Introducing our Sea Water Filter product line, known as the BSP series, specifically engineered to provide an economical solution for smaller capacities. These seawater filters are constructed with high-quality PVC (Polyvinyl chloride), ensuring their durability and functionality.
Our comprehensive BSP series includes three different models, capable of managing capacities up to 130 m3/h; ranging from DN 65 (2.5”) to DN 100 (4”). We offer two distinct filter basket types – perforated and wedge-wire, allowing for customizability based on your specific requirements.
As a standard, our seawater filter baskets are crafted from robust stainless steel (316L) or titanium, guaranteeing their resilience against corrosion and wear. For those with unique needs, we also offer filter baskets made from other sturdy metals such as Duplex stainless steel and Super Duplex stainless steel. Opt for our BSP Sea Water Filter series to achieve efficient and reliable filtration in your operations.
Contact us to request a quote today.
Filter type | Flow capacity | Dimensions (mm) | ||||||||||
Max (l/s) | Flush (l/s) | A | B | C | D | E | L | FS | G/H | J | Weight (kg) | |
FILTER BODY IN PVC | ||||||||||||
BSP 65 | 17 | 2 | 96 | 205 | 295 | 380 | built in | 460 | 330 | DN 65 | BSP 1″ | 12 |
BSP 80 | 23 | 3 | 180 | 235 | 380 | 485 | 150 | 630 | 430 | DN 80 | DN 40 | 17 |
BSP 100 | 36 | 4 | 185 | 275 | 440 | 550 | 150 | 720 | 450 | DN 100 | DN 40 | 24 |
FILTER BODY IN GRP | ||||||||||||
BSG 100 | 36 | 4 | 185 | 200 | 385 | 495 | 212 | 630 | 450 | DN 100 | DN 40 | 18 |
BSG 150 | 83 | 9 | 240 | 275 | 530 | 675 | 212 | 820 | 780 | DN 150 | DN 50 | 40 |
BSG 200 | 145 | 17 | 310 | 350 | 705 | 890 | 292 | 1060 | 790 | DN 200 | DN 65 | 60 |
BSG 250 | 235 | 26 | 350 | 400 | 825 | 1050 | 52 | 1260 | 940 | DN 250 | DN 100 | 105 |
BSG 300 | 325 | 37 | 400 | 475 | 1000 | 1260 | 52 | 1480 | 1110 | DN 300 | DN 100 | 160 |
BSG 350 | 450 | 50 | 400 | 475 | 1100 | 1380 | 52 | 1610 | 1250 | DN 350 | DN 100 | 180 |
BSG 400 | 580 | 67 | 450 | 600 | 1240 | 1540 | 52 | 1790 | 1370 | DN 400 | DN 100 | 300 |
BSG 450 | 735 | 77 | 500 | 650 | 1450 | 1800 | 56 | 2030 | 1640 | DN 450 | DN150 | 500 |
BSG 500 | 910 | 105 | 600 | 700 | 1600 | 2050 | 56 | 2340 | 1860 | DN 500 | DN 150 | 550 |
BSG 600 | 1300 | 150 | 650 | 900 | 1800 | 2250 | 56 | 2620 | 2060 | DN 600 | DN 150 | 850 |
BSG 700 | 1770 | 200 | 750 | 850 | 2250 | 2780 | 60 | 3170 | 2450 | DN 700 | DN 200 | 1300 |
FILTER BODY IN AISI 316L | ||||||||||||
BSS 80 | 23 | 3 | 165 | 165 | 340 | 455 | 90 | 570 | 430 | DN 80 | BSP 1¼” | 30 |
BSS 100 | 36 | 4 | 200 | 175 | 350 | 465 | 115 | 590 | 410 | DN 100 | BSP 1½” | 37 |
BSS 150 | 83 | 9 | 250 | 250 | 500 | 650 | 115 | 770 | 780 | DN 150 | BSP 2″ | 90 |
BSS 200 | 145 | 17 | 275 | 300 | 630 | 820 | 155 | 970 | 780 | DN 200 | BSP 2½” | 140 |
BSS 250 | 235 | 26 | 325 | 350 | 750 | 975 | 52 | 1150 | 940 | DN 250 | DN 100 | 210 |
BSS 300 | 325 | 37 | 380 | 380 | 900 | 1160 | 52 | 1350 | 1100 | DN 300 | DN 100 | 270 |
BSS 400 | 580 | 67 | 460 | 450 | 1050 | 1360 | 52 | 1570 | 1370 | DN 400 | DN 100 | 550 |
Min. operating pressure | ≥ 0,3 bar1 |
Max. operating pressure | 10 bar (g) |
Max. operating temp. | BSP: 40°C / BSG: 60°C2 / BSS: 80°C |
Power supply | 100-240V AC or DC 45-65 Hz ( AC) |
Instrument air pressure | min 6 bar g |
Since the fundamental purpose of a Bernoulli Filter is to reduce the content of suspended solids in water from natural sources, the scope of applications ranges from pre-filtration in water treatment to the protection of plate heat exchangers and sensitive process equipment such as spray nozzles. It is used in a variety of industries ranging from power generation, petrochemicals, and HVAC to steelmaking, aquaculture, pharmaceuticals, pulp and paper, and foods and beverages.
