The CCM 01 Contamination Control Monitor Set is an inline diagnostic measuring system for determining the contamination classes according to ISO 4406:99 and NAS 1638.
Eaton’s in-line measuring systems are designed to mount directly to stationary systems for continuous or periodic monitoring or can be used as mobile monitoring solutions in hydraulic and lubricating systems. Immediate and accurate diagnoses enable the operator to influence the system or intervene with appropriate counteractive measures when necessary.
Request a Quote for
CCM 01-set
Send us the details and we will get back to you.
- Cost-effective in-line monitoring solution for continuous

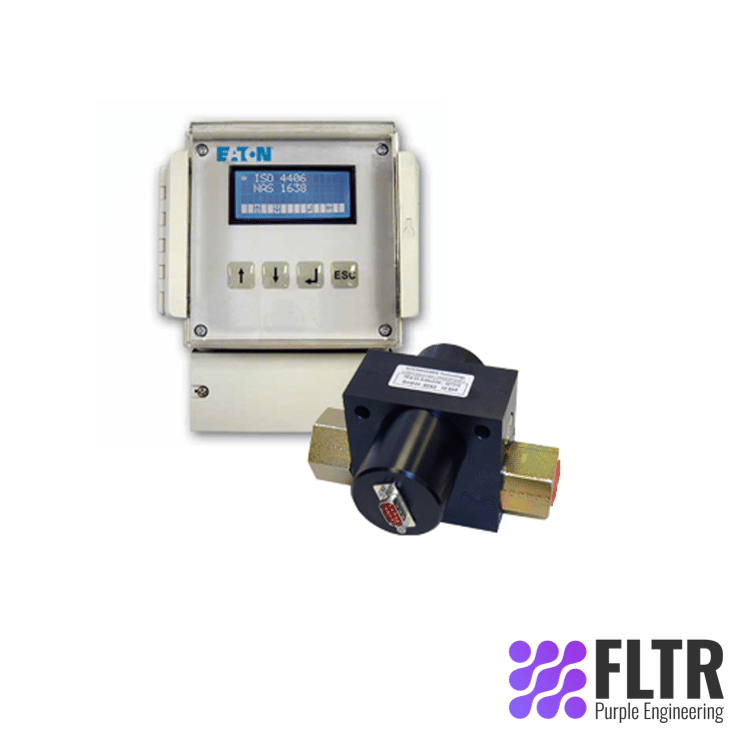

operations - Particle counter consisting of PFS 01 laser sensor for
hydraulic and lubrication fluids and CCM 01 display unit - Reliable determination of contamination classes according
to ISO 4406:99 or NAS 1638 (switchable) - Installation in new and existing systems
- Internal memory for storing results (100 measured values)
- Automatic monitoring function with control signal output
when thresholds are exceeded (programmable) - RS-232 interface
- LabVIEW data manager software (export to Microsoft Excel)
for data management on an external computer - CAN bus interface (CANopen compatible)
- Alphanumerical display
- Sturdy case
Contact us to request a quote today.
| Operating parameters | |
| Power supply: | 24 VDC/0.15 A/3.6 VA |
| Power supply (external unit): |
100 to 240 VAC/50/60 Hz/24 VDC/0.6 A |
| Protection class: | IP 65 (when cover is closed) |
| Max. operating pressure: | ≤ 50 bar |
| Viscosity: | 10 to 400 mm2/s |
| Fluid temperature: | 0 to 70 °C |
| Ambient temperature: | 0 to 70 °C |
| Connection: | G 1″ threaded or G ¾” threaded |
| Max. volume flow: | 50 l/min |
| Min. volume flow: | 0.5 l/min |
| Measurement parameters | |
| Automatic particle counting in 4 channels: | ≥ 4 μm(c), ≥ 6 μm(c), ≥ 14 μm(c), ≥ 21 μm(c) or ≥ 6.4 μm(c), ≥ 14 μm(c), ≥ 21 μm(c), ≥ 38 μm(c) |
| Contamination classes: | ISO 4406:99, NAS 1638 |
| Laser sensor calibration: | ISO MTD in oil (ISO 11171:2000) |
| Accuracy: | ±1 (contamination class) |
Contact us for more information.
Inline diagnostic measuring system for determining the contamination classes.
