Coalescing Filters to 285 PSIG
Product Code: Series R30- R32

SERIES R30- ENAMELED CARBON STEEL
SERIES R32- 304 STAINLESS

  • Intake Air Flows to 100,000 SCFM Std.
  • ASME U Stamp Std., Nat’l. Board Registered
  • Exceptionally Low ΔP, High Flow
  • Pleated Element Design – Exceptional Useful Filter Area
  • Hinged Flange and Lift Lug Std., Service Access W/O Breaking Connections
  • 304SS Throat Safety Cages, ΔP Taps Std.
Add to Quote Request
Product Added to Quote Successfully.
View Quote

Can't find what you're looking for?

Send us the details and we will get back to you.

  • Supporting Document (Optional)

RUGGED ENAMELED STEEL OR 304SS CONSTRUCTION
Series R30 coalescing pipeline filters are fabricated from rugged enameled carbon steel, (R32 are 304SS), designed, constructed, and stamped in accordance with ASME Boiler and Pressure Vessel Code requirements for unfired pressure vessels. Any model can be modified to more exactly fit your needs.

CONNECTION SIZES FROM 1″ TO 12″

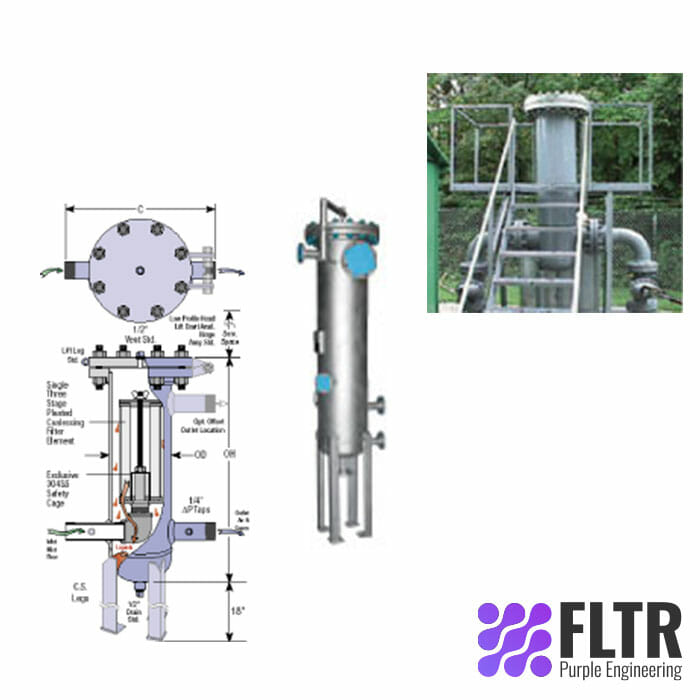

Male NPT or raised face flange in-line connections are std. Alternative orientations and sizes are available. An elevated discharge connection is shown below. A hinged blind face flange closure assembly with lift lug is standard.

COALESCING FILTER MEDIA
Sparks™ #907 media is composed of microfine borosilicate glass fibers bonded with phenolic resin. Together with a textile prefilter and a final drain layer, these pleated elements are remarkably effective at coalescing fine entrained oil and aqueous vapor mist from air/gas flows with very low ΔP. Experience has demonstrated high removal (over 90%) in dealing with 1.0 to 0.3µ aerosols. Other optional filter media such as #926 exceeds 95% removals. Individual performance will vary with the specific viscosity and vapor pressure of liquid contaminates.

OPTIONS
Models R30-0202-MT-020 and larger include CS leg supports. (add 18″ to OH) Carbon steel support legs in any length, gauges, special finishes, and head lift assemblies are optional on any model. Call for information on vessels having other pressure services, 304SS, or other materials of construction.

Housing Model No. Conn. Size Conn. Type Cover Style Dimension in Inches Wgt. Lbs. Order Element No.
OD OH C Sev. Space
R30-0200-MT-010 1” MPT Blind Flg. 65⁄8 24 16 16 130 321-1439WK907
R30-0201-MT-015 11⁄2” MPT Blind Flg. 65⁄8 28 16 16 140 321-3235WK907
R30-0202-MT-020 2” MPT Blind Flg. 85⁄8 28 16 16 150 321-3236WK907
R30-0203-RF-030 3” Flg. Blind Flg. 85⁄8 39 20 24 200 321-3237WK907
R30-0204-RF-040 4” Flg. Blind Flg. 103⁄4 42 20 24 325 321-3238WK907
R30-0205-RF-060 6” Flg. Blind Flg. 123⁄4 51 24 26 500 321-3239WK907
R30-0206-RF-080 8” Flg. Blind Flg. 16 66 28 36 850 321-3240WK907
R30-0207-RF-100 10” Flg. Blind Flg. 20 76 32 36 1200 321-3241WK907
R30-0208-RF-120 12” Flg. Blind Flg. 24 78 36 39 1400 321-3242WK907
