Manufacturer: FLTR-TG
Compressed Air Filter Elements
Grace offers a wide range of compressed air filters for the removal of dirt, dust, rust, condensates, moisture contents, oil impurities, and exhaust fumes. Filtered compressed air results in low downtime and reduces production loss. These compressed air filters are made of selected fiber media and designed on basis of flow requirement, line size, working pressure, working temperature, and different filtration ratings, ensuring desired anticipated filtration level and system performance.
Request a Quote for
Compressed Air Filter Elements
Send us the details and we will get back to you.
Grace offers a wide range of compressed air filters for the removal of dirt, dust, rust, condensates, moisture contents, oil impurities, and exhaust fumes. Filtered compressed air results in low downtime and reduces production loss. These compressed air filters are made of selected fiber media and designed on basis of flow requirement, line size, working pressure, working temperature, and different filtration ratings, ensuring desired anticipated filtration level and system performance.
Grace offers various compressed air filters which are compatible with globally well-known brands. Herein you can choose any kind of air filter to meet different requirements.
Contact us to request a quote today.

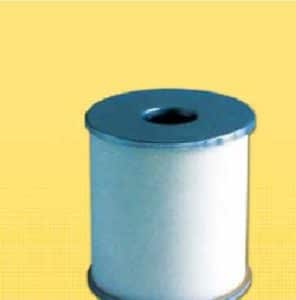

Compatible Replacements of SMC
| Grade | AFF
Main Line Filter |
AMF
Odor Removal Filter |
AM
Mist Separator |
AME
Super Mist Separator |
AMD
Micro Mist Separator |
|||||
| Filter Media | Pleated Cellulose | Activated Carbon | Pleated Borosilicate | Pleated Borosilicate | Pleated Borosilicate | |||||
| Micron Rating | 3μm | 0.01μm | 0.3μm | 0.01μm | 0.01μm | |||||
| Oil Residual Content | N/A | 0.004mg/m3 | 1mg/m3 | 0.01mg/m3 | 0.1mg/m3 | |||||
| Maximum Operating Temperature | 120oC(248oF) | 35oC(95oF) | 120oC(248oF) | 120oC(248oF) | 120oC(248oF) | |||||
| Element Size Flow Rates Nm3/min | Element | Flow Rate | Element | Flow Rate | Element | Flow Rate | Element | Flow Rate | Element | Flow Rate |
| 4C | 0.75 | 250C | 0.5 | 250C | 0.75 | 250C | 0.5 | 250C | 0.5 | |
| 8C | 1.5 | 350C | 1.0 | 350C | 1.5 | 350C | 1.0 | 350C | 1.0 | |
| 22C | 3.5 | 550C | 3.5 | 550C | 3.5 | 550C | 3.5 | 550C | 3.5 | |
| 37B | 6.0 | 650 | 6.0 | 650 | 6.0 | 650 | 6.0 | 650 | 6.0 | |
| 75 B | 12.0 | 850 | 12.0 | 850 | 12.0 | 850 | 12.0 | 850 | 12.0 | |
| O-ring | Buna-N, Viton | |||||||||
| Filter Support | SUS304 | |||||||||
| End Cap | Aluminum | |||||||||
Compatible Replacements of Ultrafilter(Donaldson)
| Element Size | Flow Rate Nm3/min |
| 0205 | 0.16 |
| 0305 | 0.5 |
| 0310 | 1.0 |
| 0410 | 1.5 |
| 0420 | 2.0 |
| 0520 | 3.0 |
| 0525 | 4.5 |
| 0725 | 6.0 |
| 0530 | 7.0 |
| 0730 | 8.0 |
| 1030 | 12.0 |
| 1530 | 18.0 |
| 2030 | 24.0 |
| 3030 | 32.0 |
| 3050 | 45.0 |
| Grade | SB | FF | MF | SMF | AK |
| Filter Media | Sinter Porous Bronze | Pleated Borosilicate | Pleated Borosilicate | Pleated Borosilicate | Activated Carbon |
| Micron Rating | 5, 25, 50 μm | 0.01μm | 0.01μm | 0.01μm | 0.01μm |
| Oil Residual Content | N/A | 0.01mg/m3 | 0.03mg/m3 | 0.01mg/m3 | 0.003mg/m3 |
| Maximum Operating Temperature | 120oC(248oF) | 120oC(248oF) | 120oC(248oF) | 120oC(248oF) | 120oC(248oF) |
| O-ring | Buna-N, Viton | ||||
| Filter Support | SUS304 | ||||
| End Cap | Aluminum | ||||
Compatible Replacements of Zander(Parker)
| Element Size | Flow Rate Nm3/min |
| 1030 | 0.5 |
| 1050 | 0.85 |
| 1070 | 1.2 |
| 1140 | 1.7 |
| 2010 | 3.0 |
| 2020 | 5.0 |
| 2030 | 7.8 |
| 2050 | 11.7 |
| 3050 | 16.0 |
| 3075 | 24.0 |
| Grade | V | Z | X | A |
| Filter Media | Pleated Cellulose | Pleated Borosilicate | Pleated Borosilicate | Activated Carbon |
| Micron Rating | 3μm | 1μm | 0.01μm | N/A |
| Oil Residual Content | 5mg/m3 | 0.5mg/m3 | 0.01mg/m3 | 0.003mg/m3 |
| Maximum Operating Temperature | 120oC(248oF) | 120oC(248oF) | 120oC(248oF) | 35oC(95oF) |
| O-ring | Buna-N, Viton | |||
| Filter Support | SUS304 | |||
| End Cap | Aluminum | |||
Compatible Replacements of Domnick Hunter(Parker)
| Element Size | Flow Rate Nm3/min |
| K009 | 0.5 |
| K017 | 1.0 |
| K030 | 3.6 |
| K058 | 4.8 |
| K145 | 8.7 |
| K220 | 13.2 |
| K330 | 20.0 |
| K430 | 24.0 |
| K620 | 40.0 |
| Grade | PF
Coarse Prefilter |
AO, AR
Dust Filter |
AA, AX, AAR
High Efficiency Filter |
ACS
Vapor Removal Filter |
| Filter Media | Pleated Cellulose | Pleated Borosilicate | Pleated Borosilicate | Activated Carbon |
| Micron Rating | 25μm | 1μm | 0.01μm | N/A |
| Oil Residual Content | N/A | 0.5mg/m3 | 0.01mg/m3 | 0.003mg/m3 |
| Maximum Operating Temperature | 120oC(248oF) | 120oC(248oF) | 120oC(248oF) | 35oC(95oF) |
| O-ring | Buna-N, Viton | |||
| Filter Support | SUS304 | |||
| End Cap | Aluminum | |||

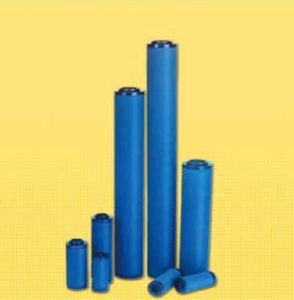

Compatible Replacements of Hiross(Parker)
| Element Size | Flow Rate Nm3/min |
| 004 | 0.4 |
| 007 | 0.7 |
| 009 | 1.0 |
| 015 | 1.5 |
| 024 | 2.4 |
| 035 | 3.5 |
| 060 | 6.0 |
| 090 | 9.0 |
| 120 | 12.0 |
| 150 | 15.0 |
| 240 | 24.0 |
| Grade | Q | P | S | C |
| Filter Media | Pleated Cellulose | Pleated Borosilicate | Pleated Borosilicate | Activated Carbon |
| Micron Rating | 25μm | 1μm | 0.01μm | N/A |
| Oil Residual Content | N/A | 0.5mg/m3 | 0.01mg/m3 | 0.003mg/m3 |
| Maximum Operating Temperature | 120oC(248oF) | 120oC(248oF) | 120oC(248oF) | 35oC(95oF) |
| O-ring | Buna-N, Viton | |||
| Filter Support | SUS304 | |||
| End Cap | Aluminum | |||
Compatible Replacements of Parker Finite
| Element Size | Flow Rate Nm3/min |
| 10-25 | 0.4 |
| 10-50 | 1.4 |
| 15-60 | 2.8 |
| 15-95 | 4.0 |
| 20-130 | 6.0 |
| 25-130 | 7.0 |
| 25-187 | 12.0 |
| 25-235 | 17.0 |
| 25-280 | 20.0 |
| 35-280 | 28.0 |
| 51-280 | 40.0 |
| 85-280 | 56.0 |
| 85-360 | 80.0 |
| Grade | C, QU
Coalescer |
P
Particulate Removal Filter |
AU
Vapor Removal Filter |
| Filter Media | Pleated Borosilicate | Pleated Cellulose | Activated Carbon |
| Micron Rating | 1μm | 3μm | N/A |
| Oil Residual Content | 1mg/m3 | N/A | 0.003mg/m3 |
| Maximum Operating Temperature | 120oC(248oF) | 120oC(248oF) | 35oC(95oF) |
| O-ring | Buna-N, Viton | ||
| Filter Support | SUS304 | ||
| End Cap | Aluminum | ||
Compatible Replacements of BEA
| Element Size | Flow Rate Nm3/min |
| ARS-30 | 0.5 |
| ARS-100 | 1.7 |
| ARS-180 | 3.0 |
| ARS-290 | 4.8 |
| ARS-460 | 7.7 |
| ARS-610 | 10.2 |
| ARS-930 | 15.5 |
| ARS-1050 | 17.5 |
| ARS-1400 | 23.3 |
| Grade | RB | RA | RF | CA |
| Filter Media | Pleated Cellulose | Pleated Cellulose | Pleated Borosilicate | Activated Carbon |
| Micron Rating | 1μm | 0.01μm | 1μm | N/A |
| Oil Residual Content | 0.1mg/m3 | 0.01mg/m3 | N/A | 0.003mg/m3 |
| Maximum Operating Temperature | 120oC(248oF) | 120oC(248oF) | 120oC(248oF) | 35oC(95oF) |
| O-ring | Buna-N, Viton | |||
| Filter Support | SUS304 | |||
| End Cap | Aluminum | |||

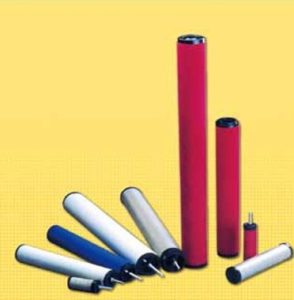

Compatible Replacements of Hankison
| Element Size | Flow Rate Nm3/min |
| E-12 | 0.57 |
| E-16 | 1.0 |
| E-20 | 1.72 |
| E-24 | 2.9 |
| E-28 | 4.9 |
| E-32 | 7.2 |
| E-36 | 11.0 |
| E-40 | 11.4 |
| E-44 | 18.0 |
| E-48 | 22.0 |
| Grade | 9
Separator |
7
General Air Line Filter |
5
Oil Removal Filter |
3
High Efficiency Oil Removal Filter |
1
Oil Vapor Removal Filter |
| Filter Media | Pleated Cellulose | Pleated Borosilicate | Pleated Borosilicate | Pleated Borosilicate | Activated Carbon |
| Micron Rating | 3μm | 1μm | 0.01μm | 0.01μm | N/A |
| Oil Residual Content | 5mg/m3 | 1mg/m3 | 0.01mg/m3 | 0.001mg/m3 | 0.003mg/m3 |
| Maximum Operating Temperature | 120oC(248oF) | 120oC(248oF) | 120oC(248oF) | 120oC(248oF) | 35oC(95oF) |
| O-ring | Buna-N, Viton | ||||
| Filter Support | SUS304 | ||||
| End Cap | Aluminum | ||||
Contact us for more information.
Contact us for more information.
