CSF-ABW Series – CS-ABW16-LP
CSF-ABW Series – CS-ABW16-LP

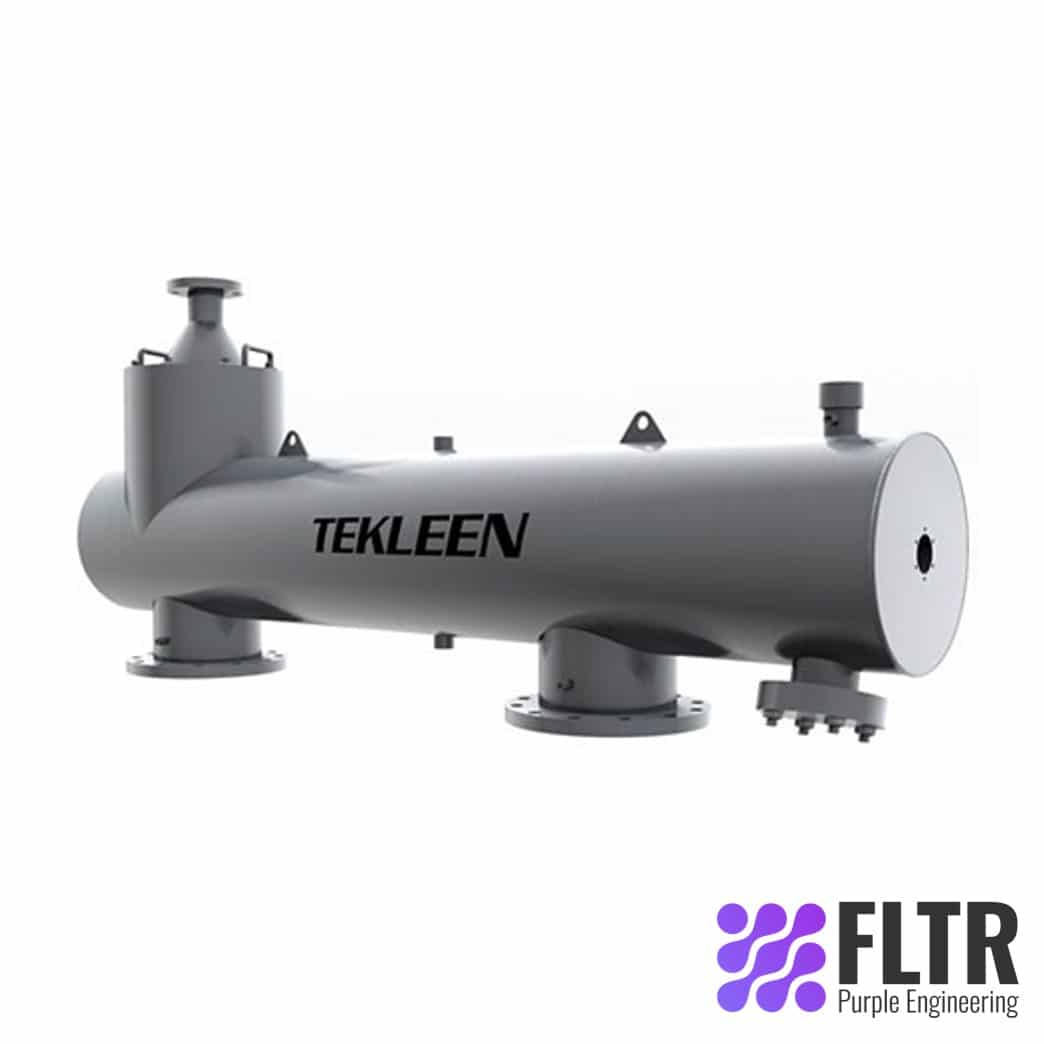

CSF-ABW Series – CS-ABW16-LP- a new line of high-quality, two-stage, 100% automatic self-cleaning water filtration systems manufactured in one filtration vessel. The first stage is a coarse screen flushing filter with 1/8” – 1/2” slotted screen for a quick 100% self-cleaning. Second stage is a fine filter with a screen down to 75µ. This NEW two-stage fully automatic filters offer direct filtration to a dirty water source like river water, lake water, wastewater, dirty cooling water, irrigation ditch, and many more.
Request a Quote for
CSF-ABW Series – CS-ABW16-LP
Send us the details and we will get back to you.
A new line of high-quality, two-stage, 100% automatic self-cleaning water filtration systems manufactured in one filtration vessel.
The first stage is a coarse screen flushing filter with a 1/8” – 1/2” slotted screen for a quick 100% self-cleaning. The second stage is a fine filter with a screen down to 75µ. This NEW two-stage fully automatic filters offer direct filtration to a dirty water source like: river water, lake water, wastewater, dirty cooling water, irrigation ditch, and many more.
Standard Features
- Line Sizes: 2″ – 16″
- Flow Rate: 10 – 6,000 gpm
- Screen Opening: 75µ – 1/2“
- Material: CS, SST, Duplex
- Design Pressure: >40 – 150 psi
- Design Temperature up to: 160oF
- Flush Valve Size: 2” – 6”
- Flush Duration: 4 – 10 seconds
- Flush Volume: 4 – 400 gallons
Contact us to request a quote today.
| Filter Model | Flange Size | Screen Area | Max Flow | Empty Weight |
| (mm) | (m²) | (m³/h) | (kgs) | |
| CS-ABW16-LP | 400 | 1.4864 | 1362 | 817.2 |
Contact us for more information.
