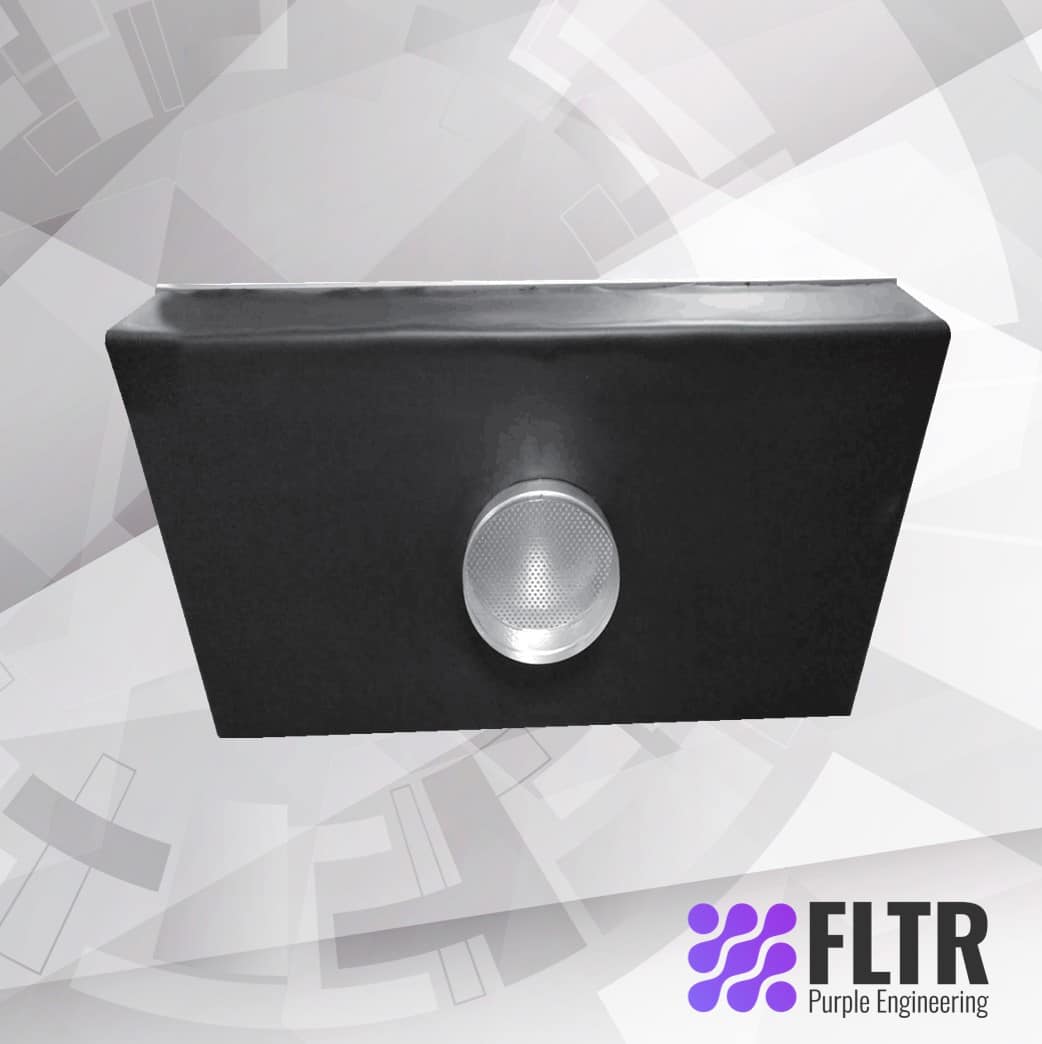

Disposable Integrated High-efficiency Filter
Disposable Integrated High-efficiency Filter
Disposable Integrated High-efficiency Filter adopts the non-clapboard folded filter element, and the filter material adopts ultra-fine glass fiber filter paper featuring low resistance and large air volume. Adopt the anodized aluminum alloy box material featuring small size, lightweight, and a standard height of only 150 mm, which is convenient to carry and install.
Request a Quote for
Disposable Integrated High-efficiency Filter
Send us the details and we will get back to you.
Disposable Integrated High-efficiency Filter adopts the non-clapboard folded filter element, and the filter material adopts ultra-fine glass fiber filter paper featuring low resistance and large air volume. Adopt the anodized aluminum alloy box material featuring small size, lightweight, and a standard height of only 150 mm, which is convenient to carry and install.
Efficiency: sub-efficient, high-efficient and ultra-efficient filters can be selected. Meet UL fireproof requirements in America. PE heat preservation cotton with a thickness of 12.5 mm is attached to the outside of the box, and the fireproof rating is B1. The air outlet diameters include 10″ (φ=250mm), 12 (φ=300mm), and 14″ (φ=350mm).
Contact us to request a quote today.
| Outline dimension W×H×D (mm) | Initial resistance of rated air volume
(m3/h) (Pa) |
(m2) Filtering area |
Wind speed of rated air volume surface
m/s |
Initial resistance of air volume at
different wind speeds (m3/h) (Pa) |
Filtration efficiency and volume
EN1822 |
||
| 610*610*120 | 1000/170 | 10.91 | 0.75 | 600/100 | 1200/205 | 1600/270 | H13 |
| 570*1170*120 | 1800/170 | 19.08 | 0.75 | 1100/100 | 2150/205 | 2900/270 | H13 |
| 610*1220*120 | 2000/170 | 21.31 | 0.75 | 1200/100 | 2400/205 | 3200/270 | H13 |
| 610*610*150 | 1200/170 | 13.64 | 0.9 | 1000/140 | 1600/230 | 2000/285 | H13 |
| 570*1170*150 | 2150/170 | 23.85 | 0.9 | 1800/140 | 2900/230 | 3600/285 | H13 |
| 610*1220*150 | 2400/170 | 26.64 | 0.9 | 2000/140 | 3250/230 | 4000/285 | H13 |
| 610*610*220 | 1500/170 | 16.78 | 1.12 | 1200/135 | 2000/230 | 2450/275 | H13 |
| 570*1170*220 | 2700/170 | 29.36 | 1.12 | 2150/135 | 3650/230 | 4350/275 | H13 |
| 610*1220*220 | 3000/170 | 32.8 | 1.12 | 2400/135 | 4050/230 | 4850/275 | H13 |
| 610*610*120 | 1000/190 | 10.91 | 0.75 | 600/115 | 1200/230 | 1600/300 | H14 |
| 570*1170*120 | 1800/190 | 19.08 | 0.75 | 1100/115 | 2150/230 | 2900/300 | H14 |
| 610*1220*120 | 2000/190 | 21.31 | 0.75 | 1200/115 | 2400/230 | 3200/300 | H14 |
| 610*610*150 | 1200/190 | 13.64 | 0.9 | 1000/160 | 1600/255 | 2000/320 | H14 |
| 570*1170*150 | 2150/190 | 23.85 | 0.9 | 1800/160 | 2900/255 | 3600/320 | H14 |
| 610*1220*150 | 2400/190 | 26.64 | 0.9 | 2000/160 | 3250/255 | 4000/320 | H14 |
| 610*610*220 | 1500/190 | 16.78 | 1.12 | 1200/150 | 2000/255 | 2450/300 | H14 |
| 570*1170*220 | 2700/190 | 29.36 | 1.12 | 2150/150 | 3650/255 | 4350/300 | H14 |
| 610*1220*220 | 13000/190 | 32.8 | 1.12 | 2400/150 | 4050/255 | 4850/300 | H14 |

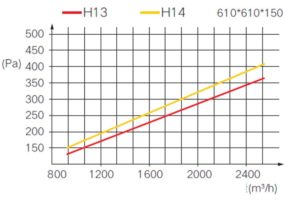

Pressure drop-air flow
- Hospital operating rooms, laboratories, pharmaceutical rooms microelectronics, optical fiber equipment, food processing, and other working environments with high cleanliness requirements.
