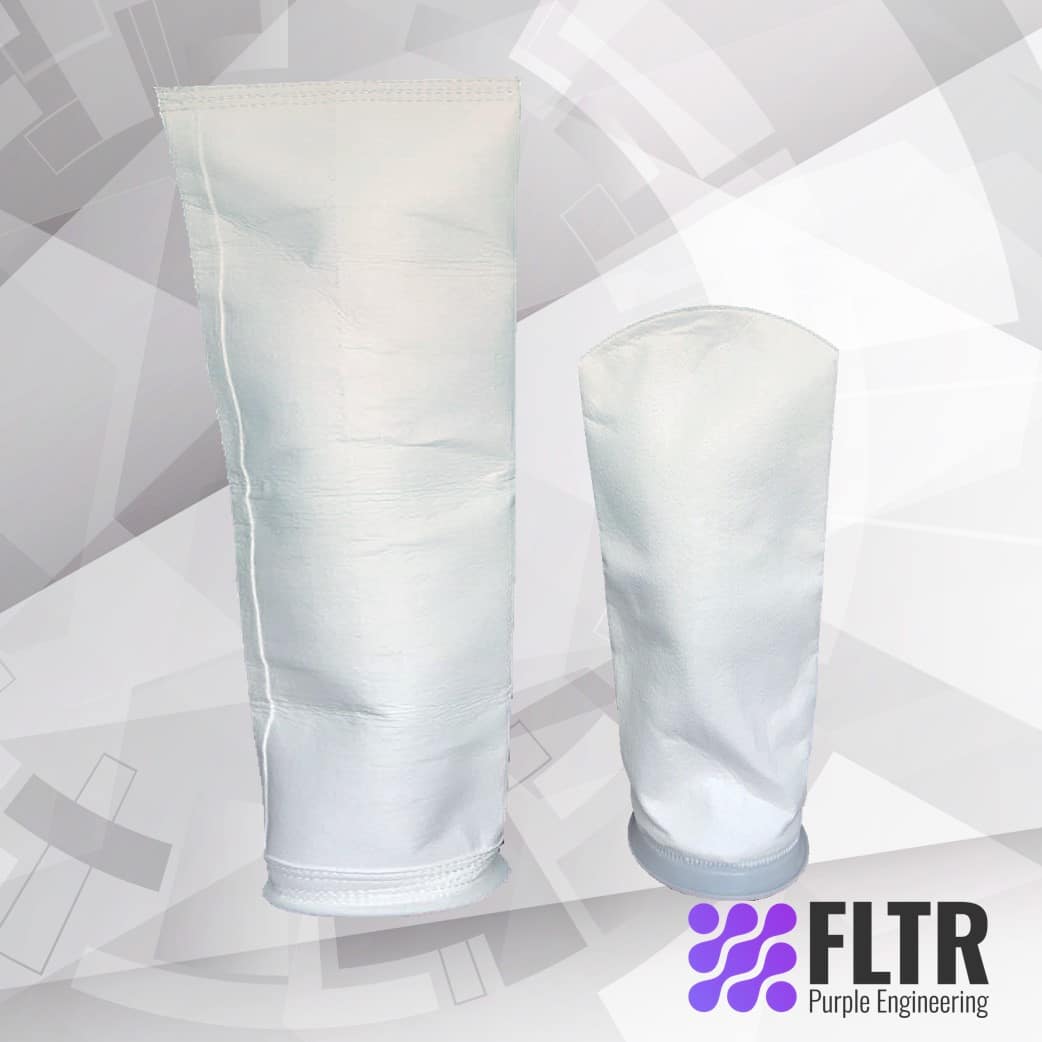

Dust filter bag
Dust filter bag
Dust filter bag features good ventilation performance, high dust removal efficiency. It has certain acid resistance, alkali resistance, and heat resistance. In the process of weaving, multilateral napping method is adopted, the fabric thickness is improved, the dust removal efficiency is very good, and the dust removal rate can reach 99.999%. Adopt dacron short fiber or long fiber as raw material, the service life is commonly 4-6 times of glass fiber fabric.
Request a Quote for
Dust filter bag
Send us the details and we will get back to you.
Dust filter bag features good ventilation performance, high dust removal efficiency. It has certain acid resistance, alkali resistance, and heat resistance. In the process of weaving, the multilateral napping method is adopted, the fabric thickness is improved, the dust removal efficiency is very good, and the dust removal rate can reach 99.999%. Adopt dacron short fiber or long fiber as raw material, the service life is commonly 4-6 times of glass fiber fabric.
Contact us to request a quote today.
|
Product name |
Polypropylene punched felt
（PP） |
Punched felt （PE） |
Acrylicpunched felt （AC） |
Amanium punched felt
（P84） |
|
Fiber |
PP | PET | Homo-Acrylic | P84 |
|
Base cloth |
PP | PET | Homo-Acrylic | P84 |
|
Square gram weight |
450g/m2 | 500g/m2 | 500g/m2 | 500g/m2 |
|
Thickness |
1.7mm | 1.7mm | 2.1mm | 2.2mm |
|
Density |
0.26g/cm3 | 0.29g/cm3 | 0.24g/cm3 | 0.23g/cm3 |
|
Air volume |
140L/dm2.min | 130L/dm2.min | 130L/dm2.min | 200L/dm2.min |
|
Fracture strength – longitudinal |
≥ 1200 N/5cm | ≥ 1200 N/5cm | ≥ 600 N/5cm | ≥ 600 N/5cm |
|
Fracture strength – transverse |
≥ 1200 N/5cm | ≥ 1500N/5cm | ≥ 600 N/5cm | ≥ 600 N/5cm |
|
Elongate @200N/5cm- longitudinal |
＜ 5% | ≤ 5% | ＜ 5% | ＜ 5% |
|
Elongate @200N/5cm- horizontal |
＜ 5% | ≤ 5% | ＜ 5% | ＜ 5% |
| thermal contraction
@150degC,90min |
1% | ≤ 1% | 1% | 1% |
|
Bursting strength |
> 300 N/cm2 | ≥ 300 N/cm2 | > 300 N/cm2 | > 300 N/cm2 |
|
Continuous operating temperature |
90℃ | 130℃ | 125℃ | 240℃ |
|
Instant operating temperature |
100℃ | 150℃ | 140℃ | 260℃ |
| Post-treatment | Heat setting,
burning setting |
Heat setting,
burning setting |
Heat setting,
burning setting |
Heat setting, burning
setting |
Contact us for more information.
- For high temperature and high moisture content, surface treatment of oil and water repellent should be applied on the surface. Iron works, steel mills, Ferroalloy factory, refractory plant, foundry, power plant, cement plant, chemical plant, grain processing plant, carbon black plant, aluminum plant, etc.
