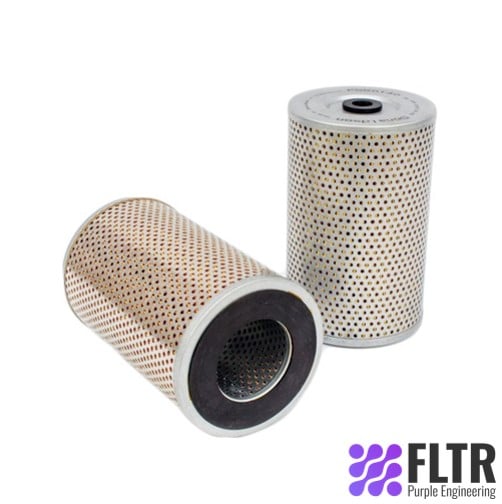

E60045 PACCAR Filter Replacement
E60045 PACCAR Filter Replacement
• E60045 PACCAR Filter Replacement
• 228468 VICKERS Filter Replacement
• P204-HD10 BALDWIN Filter Replacement
• HDR2247P RYCO Filter Replacement
• P204-HD BALDWIN Filter Replacement
• P550140 DONALDSON Filter Replacement
• 82056 CARQUEST Filter Replacement
PLEATED PAPER ELEMENT
| OUTER DIAMETER, TOP: | 3.00″ (76.20 MM) |
| OUTER DIAMETER, BOTTOM: | 3.00″ (76.20 MM) |
| INNER DIAMETER, TOP: | 0.50″ (12.70 MM) |
| INNER DIAMETER, BOTTOM: | 1.13″ (28.70 MM) |
| LENGTH: | 4.38″ (111.25 MM) |
| THREAD: | No Thread |
| MICRON RATING: | 10.00 NOMINAL |
| COLLAPSE PRESSURE RATING: | 75 PSID |
| MAXIMUM TEMPERATURE: | 225 F |
| DIRECTION OF FLOW: | OUTSIDE->IN |
| CHANGEOUT DIFFERENTIAL PRESSURE: | 20 PSID |
| HANDLE: | NONE |
| SEAL MATERIAL: | FIBER |
| TYPE OF ADHESIVE: | PLASTISOL |
| TYPE OF ENDCAP: | PLATED STEEL |
| CENTER TUBE: | PLATED STEEL |
| TYPE OF MEDIA: | PAPER |
| FILTER AREA: | SQ.IN. |
| PLATING: | ELECTROTIN PLATED |
| OUTER JACKET: | YES |
| CONFIGURATION: | SINGLE OPEN END |
Request a Quote for
E60045 PACCAR Filter Replacement
Send us the details and we will get back to you.
| Part# | 1001419 |
|---|---|
| Manufacturer | PACCAR |
| Condition | New |
| Box QTY | 1 |
| id_bottom_mm | 57.66 |
| id_top_mm | 13.46 |
| length_mm | 179.32 |
| max_temp | 225 |
| micron_rating | 5 NOMINAL |
| od_bottom_mm | 114.30 |
| od_top_mm | 114.30 |
| weight | 0.00 |
| centertube | PLATED STEEL |
| collapse_pressure_rating | 75 PSID |
| endcap | PLATED STEEL |
| filter_area | SQ.IN. |
| flow | OUTSIDE->IN |
| outer_jacket | YES |
| plating | ELECTROTIN PLATED |
| seal_material | BUNA/FI |
Contact us to request a quote today.
