Efficient air supply outlet

Efficient air supply outlet
Product Code: Efficient air supply outlet

Efficient air supply outlet features efficient air supply outlet contains the static pressure box, the diffuser plate, the high-efficiency filter, and the interface of the air duct can be connected to the top or side. The box body is made of a high-quality cold-rolled steel plate, external surface electrostatic spraying process treated, and equipped with distributing flow board. Beautiful and generous, compact structure, easy to install and maintain. The intake method includes side intake and top intake, and the flanges have a square and circular structure. The air outlet side material is plastic spray treated aluminum, cold-rolled steel plate spray, or stainless steel. Sometimes the cleanroom can choose the integrated high-efficiency filter to supply the air outlet due to the height restriction or a compact design must be adopted.

Request a Quote for

Efficient air supply outlet

Send us the details and we will get back to you.

  • Supporting Document (Optional)
  • Max. file size: 25 MB.
  • This field is hidden when viewing the form
Description

Efficient air supply outlet features efficient air supply outlet contains the static pressure box, the diffuser plate, the high-efficiency filter, and the interface of the air duct can be connected to the top or side. The box body is made of a high-quality cold-rolled steel plate, external surface electrostatic spraying process treated, and equipped with distributing flow board. Beautiful and generous, compact structure, easy to install and maintain. The intake method includes side intake and top intake, and the flanges have a square and circular structure. The air outlet side material is plastic spray treated aluminum, cold-rolled steel plate spray, or stainless steel. Sometimes the cleanroom can choose the integrated high-efficiency filter to supply the air outlet due to the height restriction or a compact design must be adopted.

Ordering Information

Contact us to request a quote today.

Specifications
 Model

Plenum chamber

size B*A*H



High efficiency air

filter shape

Nominal air delivery

m3/h

 Air inlet pipe size

D*C



Side intake

Top intake
wair-320 wair-320D 370*370*530 320*320*220 500 200*200
wair-484 wair-484D 534*534*530 484*484*220 1000 320*200
wair-610 wair-610D 660*660*460 610*610*150 1000 320*250
wair-820 wair-820D 870*650*460 820*600*150 1200 320*250
wair-630 wair-630D 680*680*530 630*630*220 1500 320*250
wair-726 wair-726D 776*534*530 726*484*220 1500 400*200
wair-915 wair-915D 965*660*460 915*610*150 1500 500*250
wair-968 wair-968D 1018*534*530 968*484*220 2000 500*200
wair-1220 wair-1220D 965*660*460 1220*610*150 2000 500*200
wair-945 wair-945SD 995*680*530 945*630*220 2200 500*250
wair-1260 wair-1260D 1310*680*530 1260*630*220 3000 600*250
Performance

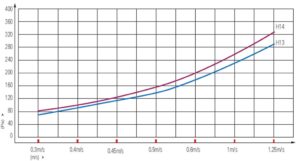

Pressure drop-air flow


Applications
  • It is an ideal terminal filtration device for the thousands, ten thousand, 100,000-grade purification air conditioning systems, which can be widely used in the purification and air-conditioning system of medicine, sanitation, electronics, chemical industry and other industries.
