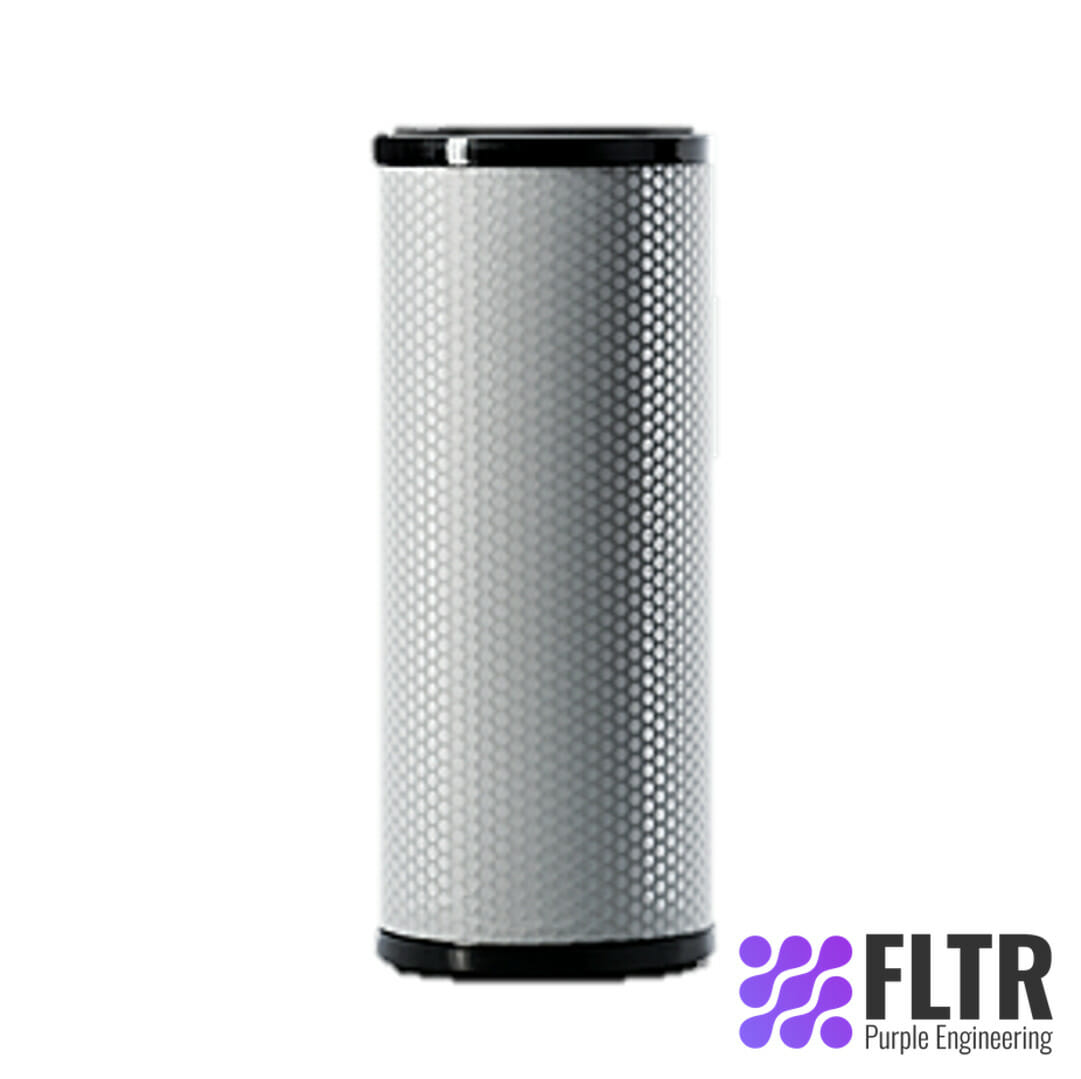

Facet InterPhase™ SS Series
Synthetic Separator Filter Elements
Facet InterPhase SS Series Separator Elements are hydrophobic and repel water droplets that form while passing through the liquid/liquid coalescers. They perform exceptionally well in a broad range of liquid applications and are more efficient and cost less than Teflon® coated separators.
These elements provide excellent chemical compatibility and can also be cleaned and reused.
Request a Quote for
Facet InterPhase™ SS Series
Send us the details and we will get back to you.
Two-phase liquid separation elements separate and remove undesired free aqueous or non-aqueous droplets from a liquid stream.
Our two-phase liquid separation product line contains a large assortment of coalescing filters and horizontal re-packs, as well as, liquid separating elements.
Filters are available in fiberglass and silicone impregnated cellulose designs as well as synthetic, stainless steel, and Teflon® materials for use in caustic service.
Contact us to request a quote today.
| Criteria | LiquidPleat™ |
| Application | Feed for CDU, Hydrocracking, Hydrotreating, Catalyst Protection, CAT Cracker, CAT Reforming, Vis Breaking, Delayed Coking, High Temperature Solvents, and other refinery systems |
| Operating Temperatures | 500 ºF |
| Nominal OD | 2.5” to over 6” |
| Nominal Lengths | Up to 60” continuous length cartridge |
| Hardware | End Caps: Carbon Steel or Stainless Steel Core and Outerwrap: Carbon Steel or Stainless Steel Standard: Viton Options: Teflon and Klinger |
| Standard Media Options | Microfiberglass |
| Typical End Cap Configurations | JHF, 3862, 6055/4055, JXC (pleated bag) |
| Flow Direction | Outside to In or Inside to Out |
| Micron rating | 0.5 to 100 *Other micron ratings are available upon request |
- The HT cartridges maintain filtration efficiency while eliminating complex cleaning processes that may require the use of harsh chemicals to clean.
- Rated for operating temperature of 500 °F (260 °C) this cartridge provides refineries with an effective and efficient alternative to older technologies, such as string-wound cartridges which may not be suitable at lower micron ratings.
- Available in a wide range of cartridge sizes from small diameter (2.5” OD) to large diameter (6+” OD) for new applications and vessels or to retrofit in existing vessels.
- Used as pre-filters to backwashable filters systems, these cartridges may extend run times between cleaning-cycles leading to reduced downtime and maintenance costs.
The High Temperature (HT) Series cartridges have been designed to filter solid particulates down to 0.5 microns from liquid feed streams with a maximum continuous temperature of 425 deg F in refinery applications.
