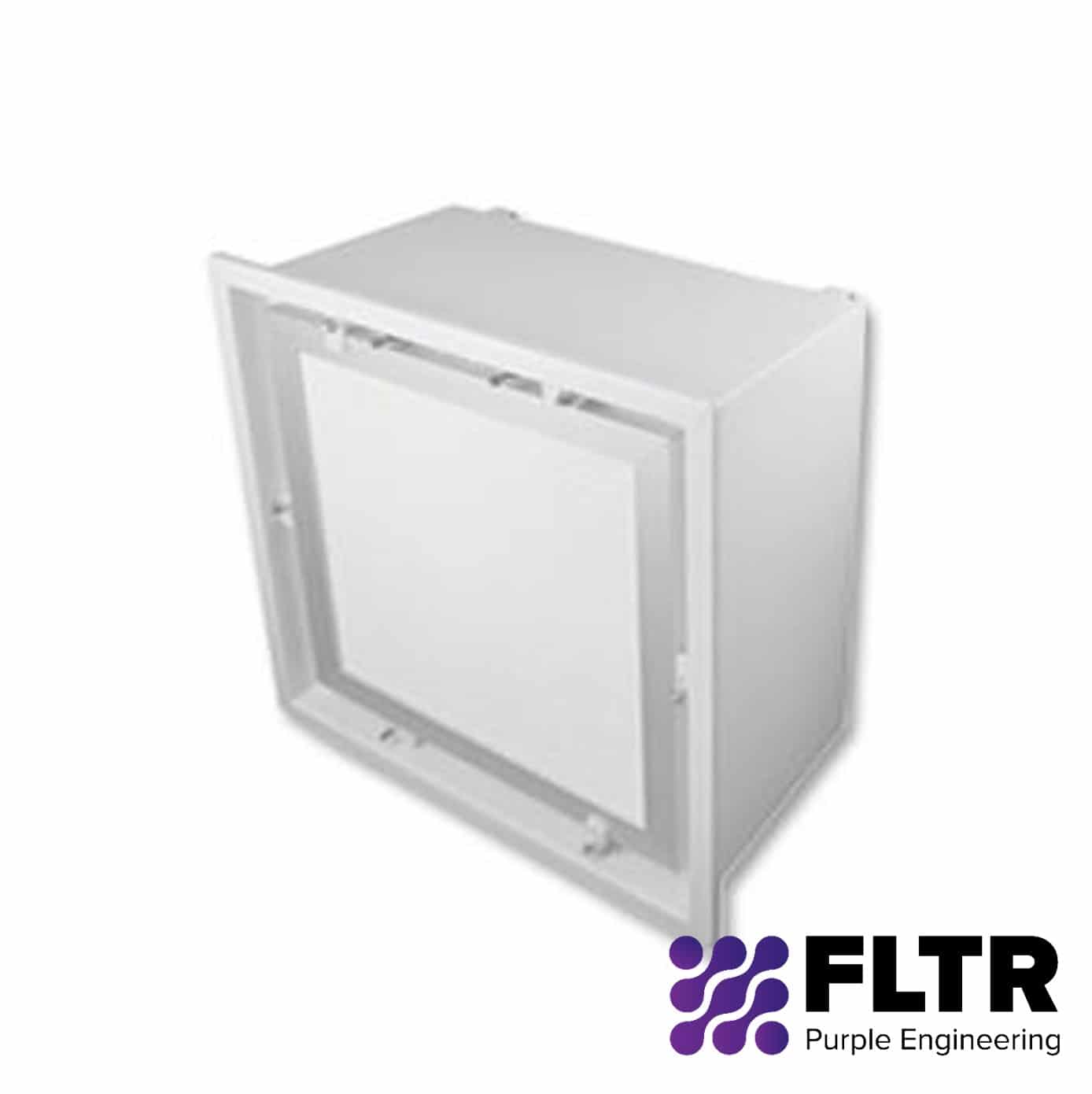

FLTR-EA HEPA Filter Diffuser Box


,

Manufacturer:

FLTR-EA HEPA Filter Diffuser Box
Product Code: FLTR-EA HEPA Filter Diffuser Box

The gel seal HEPA filter air diffusers are the instruments in the cleanroom that provide super level airtightness, the gel seal HEPA filters are replaceable. this equipment is mainly used in hospitals, biopharmaceuticals, semi conductor, LED screens, optical, fine machines, laboratories and so on.

Request a Quote for

FLTR-EA HEPA Filter Diffuser Box

Send us the details and we will get back to you.

  • Supporting Document (Optional)
  • Max. file size: 25 MB.
  • This field is hidden when viewing the form
Description

The gel seal HEPA filter air diffusers are the instruments in the cleanroom that provide super level airtightness, the gel seal HEPA filters are replaceable. this equipment is mainly used in hospitals, biopharmaceuticals, semi conductor, LED screens, optical, fine machines, laboratories and so on.

The frame is a cold-rolled panel with, electrostatic process. Anti-corrosion, anti-acid, strong construction. All every part of the frame are welded, and the seam is sealed by silicone glue to prevent air leakage. The air outlet is positioned by screw, it`s very convenient to install and unload. To replace the gel seal HEPA filters just stand beneath the diffusers and do not need to go to the ceiling grid.

Ordering Information

Contact us to request a quote today.

Specifications


Item No



Dimension

(mm)

 Efficiency

( EN:1822)



Airflow inlet direction

 Airflow control

( mm )



Air diffuser size ( mm )



Gel HEPA Size

( mm )



Airflow

( m3/h )



Pressure drop

( Pa )



DOP

test
EA-GA-505029 500*500*290 H14 Upon 200*200 555*555 400*400*93 500 180 Yes
EA-GA-505046 500*500*460 H14 Side 200*200 555*555 400*400*93 500 180 Yes
EA-GA-656529 650*650*290 H14 Upon 300*200 705*705 550*550*93 1000 180 Yes
EA-GA-656546 650*650*460 H14 Side 300*200 705*705 550*550*93 1000 180 Yes
EA-GA-737329 730*730*290 H14 Upon 400*200 785*785 630*630*93 1500 180 Yes
EA-GA-737346 730*730*460 H14 Side 400*200 785*785 630*630*93 1500 180 Yes
EA-GA-10157129 1015*710*290 H14 Upon 400*200 1060*765 915*610*93 2000 180 Yes
EA-GA-

10157146

 1015*710*460 H14 Side 400*200 1060*765 915*610*93 2000 180 Yes
EA-GA-535329 534*534*290 H14 Upon 200*200 589*589 434*434*90 500 180 Yes
EA-GA-535346 534*534*460 H14 Side 200*200 589*589 434*434*90 500 180 Yes
EA-GA-686829 684*684*290 H14 Upon 300*200 739*739 584*584*90 1000 180 Yes
EA-GA-686846 684*684*460 H14 Side 300*200 739*739 584*584*90 1000 180 Yes
EA-GA-747429 744*744*290 H14 Upon 400*200 799*799 644*644*90 1500 180 Yes
EA-GA-747446 744*744*460 H14 Side 400*200 799*799 644*644*90 1500 180 Yes
EA-GA- 10497429 1049*744*290 H14 Upon 500*200 1104*799 949*644*90 2000 180 Yes
EA-GA- 10497446 1049*744*460 H14 Side 500*200 1104*799 949*644*90 2000 180 Yes
Performance

External frame: painted steel

Sealant: polyurethane

Air volume control: inlet with fixed damper

Usage environment: temp 80℃

Humidity: 80%

Applications

For pharmaceutical and biotech applications, hospital operating rooms, laboratories.
