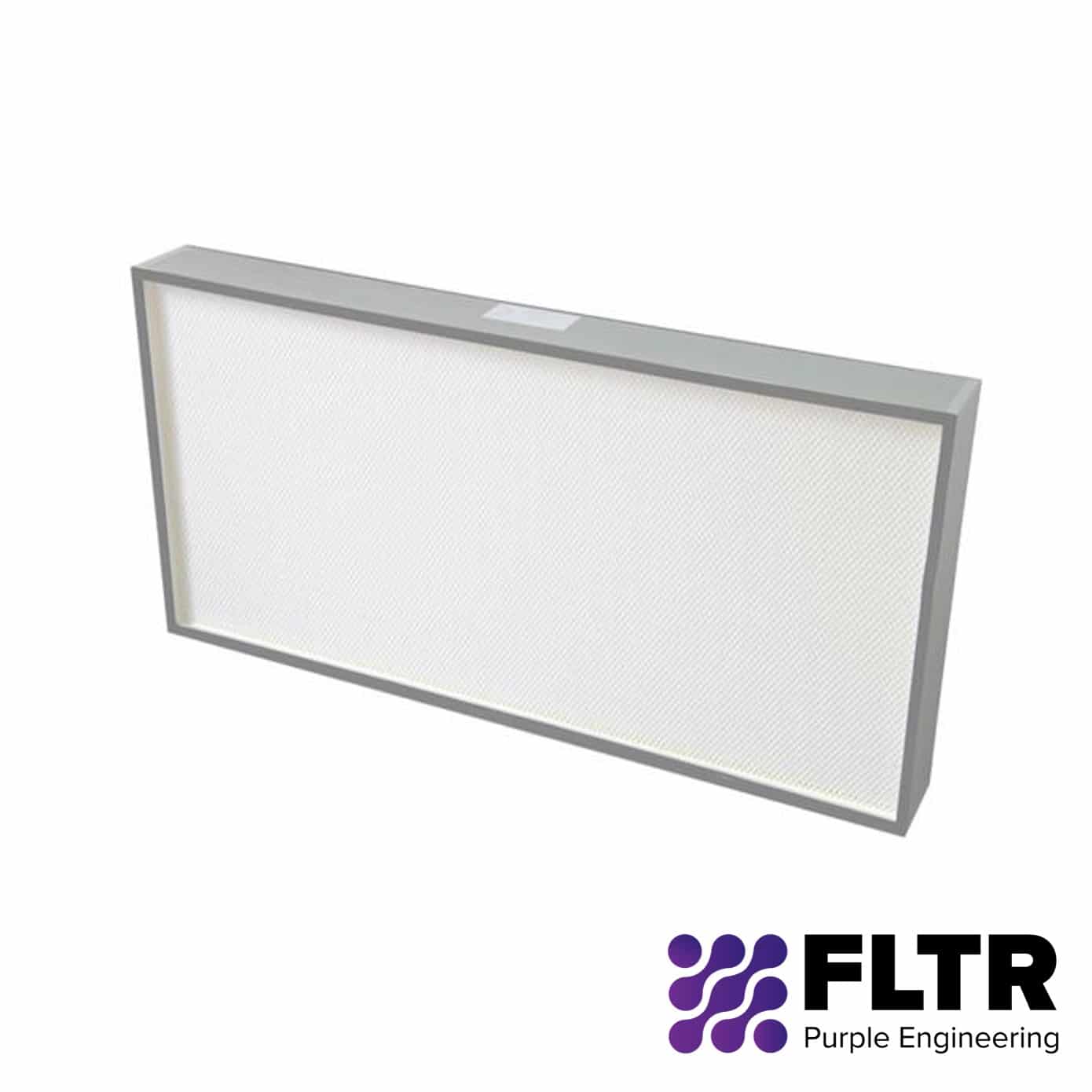

FLTR-EA Mini Pleated HEPA Filter


,

Manufacturer:

FLTR-EA Mini Pleated HEPA Filter
Product Code: FLTR-EA Mini Pleated HEPA Filter

The mini pleated HEPA filters are an important part of the cleanroom HVAC system final filtration, made of waterproof glass fiber media, mini pleated design to maximize the filter area. The filtering efficiency of removing particle size 0.3 micron can reach 99.99% to 99.999% level. Hot melt as the separators and aluminium alloy as the filter frame; In the year of 2016, we got new machines that can make mini pleated pack thickness as much as 120mm, which means we can make mini pleated HEPA filters thickness 150mm. The mini pleated HEPA filters thickness of 150mm can be a wonderful replacement for deep pleated HEPA filters thickness of 150mm, it brings a large airflow rate and lower resistance. The new machine makes us become the most competitive manufacturer and factory for air filters.

Request a Quote for

FLTR-EA Mini Pleated HEPA Filter

Send us the details and we will get back to you.

  • Supporting Document (Optional)
  • Max. file size: 25 MB.
  • This field is hidden when viewing the form
Description

The mini pleated HEPA filters are an important part of the cleanroom HVAC system final filtration, made of waterproof glass fiber media, mini pleated design to maximize the filter area. The filtering efficiency of removing particle size 0.3 micron can reach 99.99% to 99.999% level. Hot melt as the separators and aluminium alloy as the filter frame; In the year of 2016, we got new machines that can make mini pleated pack thickness as much as 120mm, which means we can make mini pleated HEPA filters thickness 150mm. The mini pleated HEPA filters thickness of 150mm can be a wonderful replacement for deep pleated HEPA filters thickness of 150mm, it brings a large airflow rate and lower resistance. The new machine makes us become the most competitive manufacturer and factory for air filters.

Ordering Information

Contact us to request a quote today.

Specifications


Item No

 Dimension

( L*W*H / mm )

 Efficiency

( EN:1822 )

 Air flow rate / Initial pressure drop

( m3/h / Pa )

 Air flow rate / Initial pressure drop

( m3/h / Pa )

 Media area

( m2)
EA-MH-365H13 305*610* 50 H13 230/120 300/140 3.8
EA-MH-365H14 H14 230/130 300/150
EA-MH-665H13 610*610* 50 H13 460/120 600/140 8.2
EA-MH-665H14 H14 460/130 600/150
EA-MH-965H13 915*610*50 H13 700/120 900/140 12.3
EA-MH-965H14 H14 700/130 900/150
EA-MH-1155H13 1170*570* 50 H13 850/120 1000/140 14.5
EA-MH-1155H14 H14 850/130 1000/150
EA-MH-1265H13 1220*610* 50 H13 950/120 1200/140 16.5
EA-MH-1265H14 H14 950/130 1200/150
EA-MH-366H13 305*610* 69 H13 300/120 500/220 5.5
EA-MH-366H14 H14 300/130 500/240
EA-MH-666H13 610*610* 69 H13 600/120 1000/220 10.0
EA-MH-666H14 H14 600/130 1000/240
EA-MH-966H13 915*610*69 H13 900/120 1500/220 15
EA-MH-966H14 H14 900/130 1500/240
EA-MH-1156H13 1170*570* 69 H13 1000/120 1800/220 20.00
EA-MH-1156H14 H14 1000/130 1800/240
EA-MH-1266H13 1220*610* 69 H13 1200/120 2000/220 22.5
EA-MH-1266H14 H14 1200/130 2000/240
EA-MH-369H13 305*610* 90 H13 350/130 600/220 6.5
EA-MH-369H14 H14 350/140 600/240
EA-MH-669H13 610*610*90 H13 800/130 1300/220 13.0
EA-MH-669H14 H14 800/140 1300/240
EA-MH-969H13 915*610*90 H13 1200/130 1900/220 19.5
EA-MH-969H14 H14 1200/140 1900/240
EA-MH-1159H13 1170*570*90 H13 1400/130 2300/220 23.5
EA-MH-1159H14 H14 1400/140 2300/240
EA-MH-1269H13 1220*610*90 H13 1600/130 2600/220 26.0
EA-MH-1269H14 H14 1600/140 2600/240
According to clients` requirements offer different specifications, air pressure drop ± 15% around
Performance

Filter media: Glass fiber

Frame: Aluminum alloy or  gal steel

Efficiency: H10, H11, H12, H13, H14 ( EN: 1822 )

Usage environment: highest temp 80℃, humidity 80%

Recommend final pressure drop: 600Pa

Separator: Hot-melt gel

Gasket: Neoprene

Sealant: Polyurethane

Applications

A final filter for cleanroom air ventilation system, pharmaceuticals, laboratory, hospital, electronic industry and so on.
