High efficiency filter without partition
High efficiency filter without partition
High-efficiency filter without partition with Filter efficiency level H10~H14 is available. Use special ultra-fine glass fiber filter paper as filter material, featuring high efficiency and low resistance. It can be equipped with a double-sided protection net, to protect filter material, with good strength. Light, thin and compact structure.
Request a Quote for
High efficiency filter without partition
Send us the details and we will get back to you.
High-efficiency filter without partition with Filter efficiency level H10~H14 is available. Use special ultra-fine glass fiber filter paper as filter material, featuring high efficiency and low resistance. It can be equipped with a double-sided protection net, to protect filter material, with good strength. Light, thin and compact structure.
Contact us to request a quote today.
|
Outline dimension W×H×D (mm) |
Dust holding capacity (G) |
Nominal air delivery (m3/h) | Initial pressure drop (Pa) |
Outline dimension W×H×D (mm) |
Dust holding capacity (G) |
Nominal air delivery (m3/h) | Initial pressure drop (Pa) |
| 305*610*50 | 220 | 350 |
≤ 220 |
484*484*80 | 450 | 800 |
≤ 220 |
| 610*610*50 | 450 | 700 | 550*550*80 | 600 | 1000 | ||
| 305*610*69 | 300 | 500 | 610*610*80 | 750 | 1350 | ||
| 610*610*69 | 600 | 1000 | 630*630*80 | 800 | 1500 | ||
| 915*610*69 | 900 | 1500 | 915*610*80 | 1100 | 2000 | ||
| 1170*570*69 | 1100 | 1800 | 1220*610*80 | 1500 | 2700 | ||
| 1220*610*69 | 1200 | 2000 | 484*484*90 | 550 | 900 | ||
| 350*350*80 | 250 | 450 | 610*610*90 | 850 | 1450 | ||
| 400*400*80 | 300 | 500 | 1220*610*90 | 1700 | 2900 |
Highest temperature ℃ 80℃ maximum humidity: 80%.

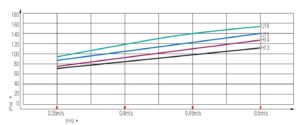

Pressure drop-air flow
It is used for purifying environments with high-efficiency filter coverage, such as electronics, semiconductors, medicine industry and hospitals, dust-free rooms, FFU, and laminar flow equipment.
