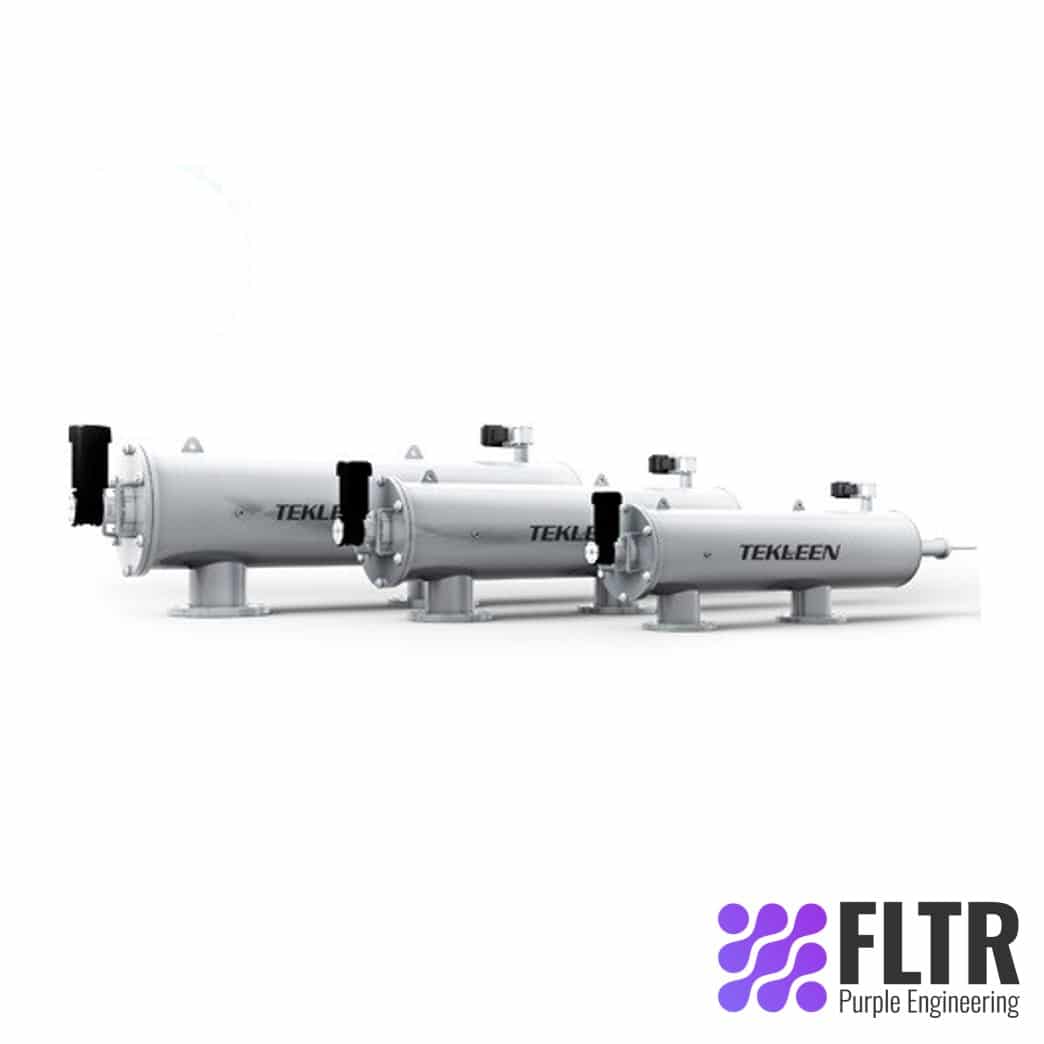

LPF Series – LPF10-LP
LPF10-LP- Line of fully automatic, self-cleaning water filters with working pressure as low as 15 psi – the Low-Pressure Filter (LPF) Series. They are available in a wide range of industrial configurations and are designed and manufactured in accordance with ANSI and ASME standards. ASME U stamp is an option. Sizes range from 2″ – 36″, flow rates from 100 – 20,000 gpm, screen mesh from 10µ – 3,000µ.
The filters are available in stainless steel, carbon steel with powder epoxy coating, and titanium. Clean filter pressure drop with 100µ screen is less than 1 psi at the rated flow of the filter.
Request a Quote for
LPF Series – LPF10-LP
Send us the details and we will get back to you.
The new line of fully automatic, self-cleaning water filters with working pressure as low as 15 psi – the Low-Pressure Filter (LPF) Series. They are available in a wide range of industrial configurations and are designed and manufactured in accordance to ANSI and ASME standards. ASME U stamp is an option. Sizes range from 2″ – 36″, flow rates from 100 – 20,000 gpm, screen mesh from 10µ – 3,000µ.
The filters are available in stainless steel, carbon steel with powder epoxy coating, and titanium. Clean filter pressure drop with 100µ screen is less than 1 psi at the rated flow of the filter.
Standard Features
- Line Sizes: 2″ – 24″
- Flow Rate: 100 – 20,000 GPM
- Screen Opening: 10µ – 2,000µ
- Material: SST or Carbon Steel
- Pressure: 15 – 150 PSI
- Temperature to: 160°F (210°F Optional)
- Flush Valve Size: 1″, 1.5″, & 2″
- Flush Flow Rate: 60 – 160 GPM
- Flush Duration: 5 – 10 Seconds
- Flushing Volume: 5 – 30 Gallons
Basic Functionality
Contact us to request a quote today.
| Filter Model | Flange Size | Screen Area | Max Flow | Empty Weight |
| (mm) | (m²) | (m³/h) | (kgs) | |
| LPF10-LP | 250 | 1.0219 | 597.01 | 295.1 |
