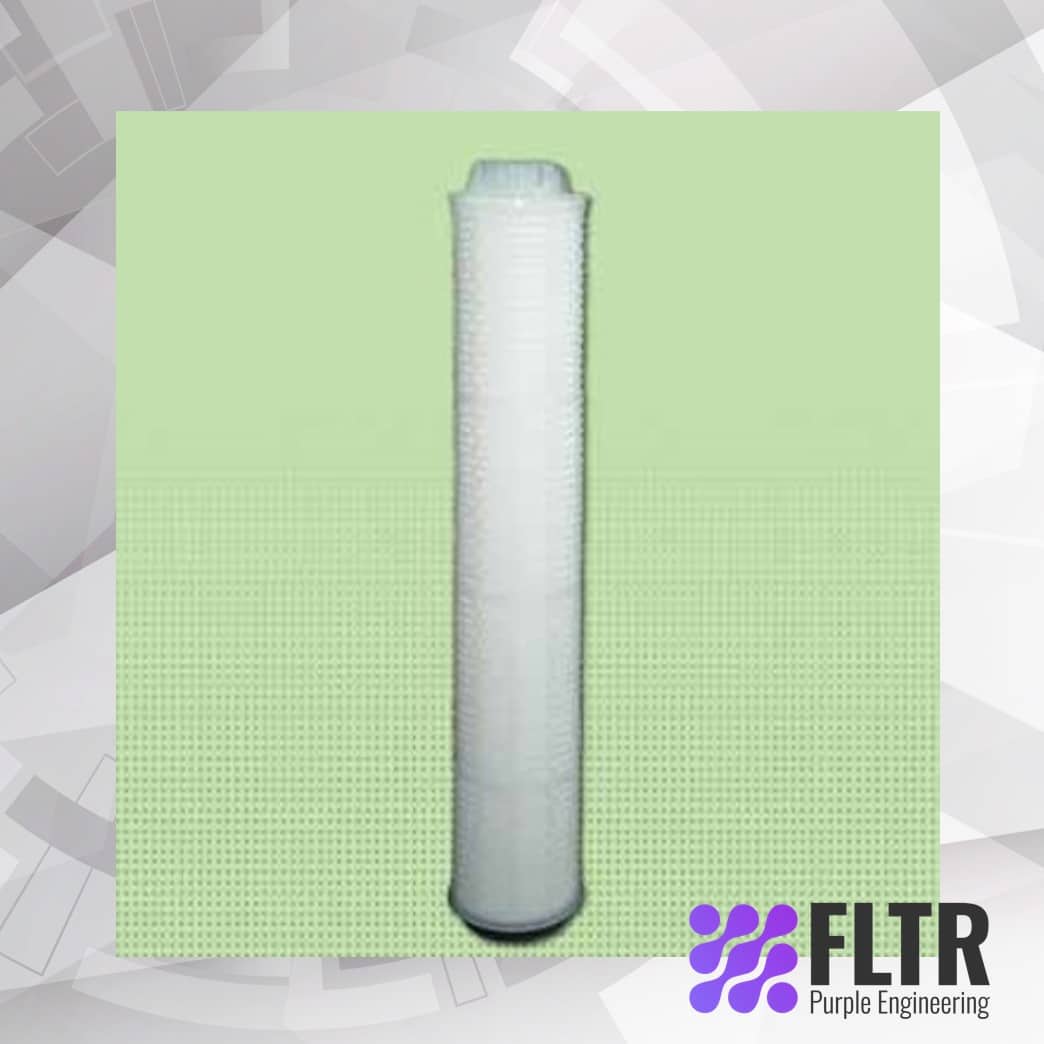

M7000 High Flow Pleated Filter Cartridges
M7000 High Flow Pleated Filter Cartridges
M7000 High Flow Pleated Filter Cartridges are constructed by 2 styles of filter media which are thermally bound PP and pleated microfiber PP, providing high particle retention efficiency while remaining low-pressure drop. With the advantages of great surface area and extended service life, fewer change-outs are required. M7000 filter cartridges are particularly recommended for processes demanding high purity and big flow capacity.
Request a Quote for
M7000 High Flow Pleated Filter Cartridges
Send us the details and we will get back to you.
M7000 High Flow Pleated Filter Cartridges are constructed by 2 styles of filter media which are thermally bound PP and pleated microfiber PP, providing high particle retention efficiency while remaining low-pressure drop. With the advantages of great surface area and extended service life, fewer change-outs are required. M7000 filter cartridges are particularly recommended for processes demanding high purity and big flow capacity.
- High dirt loading capacity for long service life and superior retention efficiency.
- Require fewer change-outs and less maintenance.
- Broad chemical compatibility is ideal for chemical applications requiring high purity.
- Convenient handle for easy manual and installation. No loose parts to assemble thus fewer labor costs. Free of binders, additives, and lubricants.
| Filter Media | Polypropylene |
| Micron Rating | 1, 3, 5, 10, 20, 30, 40, 70 μm |
| Gasket/O-ring | Silicone, EPDM, Viton, Teflon encapsulated Viton |
| Core | Polypropylene |
| Filter Support | Polypropylene |
| End Cap | Polypropylene |
| Cage | Polypropylene |
| Inside Diameter | 1.6″(40mm) |
| Outside Diameter | 6.5″(165mm) |
| Maximum Operating Temperature | 70oC (160oF) |
| Maximum Differential Pressure | 3.4 bar at 20oC (50 psi at 68oF) |
| Recommended Change Out Differential Pressure | 2.4 bar (35 psi) |
Pre RO/DI, Cooling Water, Chemicals, Petrochemical, Electronics, Food & Beverage, Petrochemical
