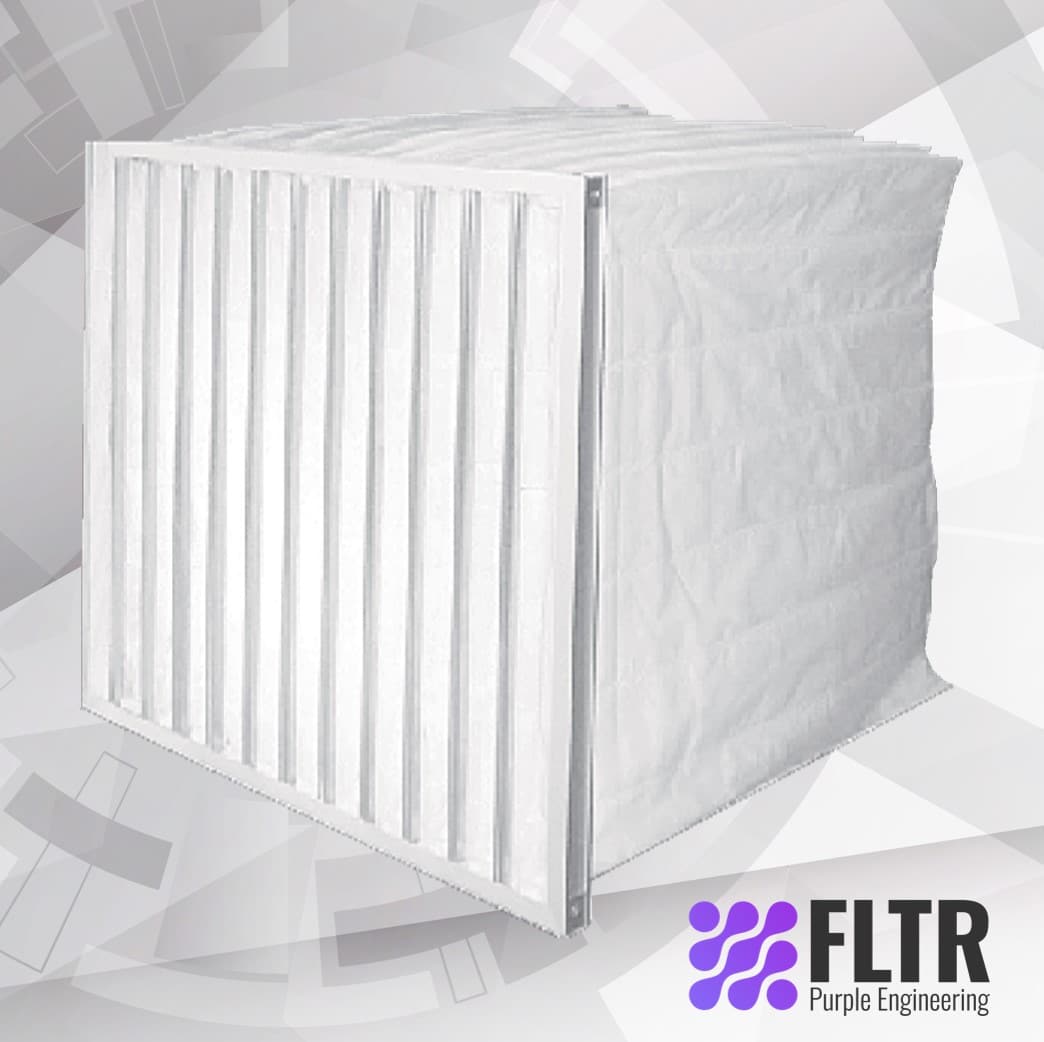

Medium – effect chemical fiber bag filter
Medium – effect chemical fiber bag filter
Medium-effect chemical fiber bag filter efficiency level G3~F9 is available. The special high – flux low resistance composite chemical fiber cloth is used as the filter material, and its dust-holding capacity is large. Customer can choose aluminum alloy frame, galvanized frame, plastic frame or stainless steel frame, and the frame thickness is usually 21mm, 25mm, and 45mm.
Request a Quote for
Medium – effect chemical fiber bag filter
Send us the details and we will get back to you.
Medium-effect chemical fiber bag filter efficiency level G3~F9 is available. The special high – flux low resistance composite chemical fiber cloth is used as the filter material, and its dust-holding capacity is large. Customer can choose aluminum alloy frame, galvanized frame, plastic frame or stainless steel frame, and the frame thickness is usually 21mm, 25mm, and 45mm.
Contact us to request a quote today.
|
Outline dimension W×H×D (mm) |
Bag quantity |
Initial pressure drop of each efficiency specification (Pa)@ rated air volume (m3/h) |
||||||
| G3
30~35% |
G4 30~35% | F5 40~45% | F6
60~65% |
F7 80~85% | F8 90~95% | F9
90~95% |
||
| 295*495*500 |
3 |
24\1200 | 45\1200 | 50\1200 | 65\1200 | 80\1200 | 105\1200 | 120\1200 |
| 295×595×500 | 40\1400 | 45\1400 | 50\1400 | 65\1400 | 80\1400 | 105\1400 | 120\1400 | |
| 495×595×500 |
5 |
40\2300 | 45\2300 | 50\2300 | 65\2300 | 80\2300 | 105\2300 | 120\2300 |
| 595×595×500 | 40\2350 | 45\2350 | 50\2350 | 65\2350 | 80\2350 | 105\2350 | 120\2350 | |
| 495×595×500 |
6 |
40\2650 | 45\2650 | 50\2650 | 65\2650 | 80\2650 | 105\2650 | 120\2650 |
| 595×595×500 | 40\2700 | 45\2700 | 50\2700 | 65\2700 | 80\2700 | 105\2700 | 120\2700 | |
| 495×595×500 |
8 |
40\3400 | 45\3400 | 50\3400 | 65\3400 | 80\3400 | 105\3400 | 120\3400 |
| 595×595×500 | 40\3500 | 45\3500 | 50\3500 | 65\3500 | 80\3500 | 105\3500 | 120\3500 | |
Maximum temperature 80℃

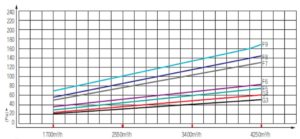

Pressure drop-air flow
It can be used in general air purification systems for electronic, food, bio-pharmaceutical, mechanical instrument, automobile spraying, petrochemical light industry, and public service places such as airport, subway and large shopping mall.
