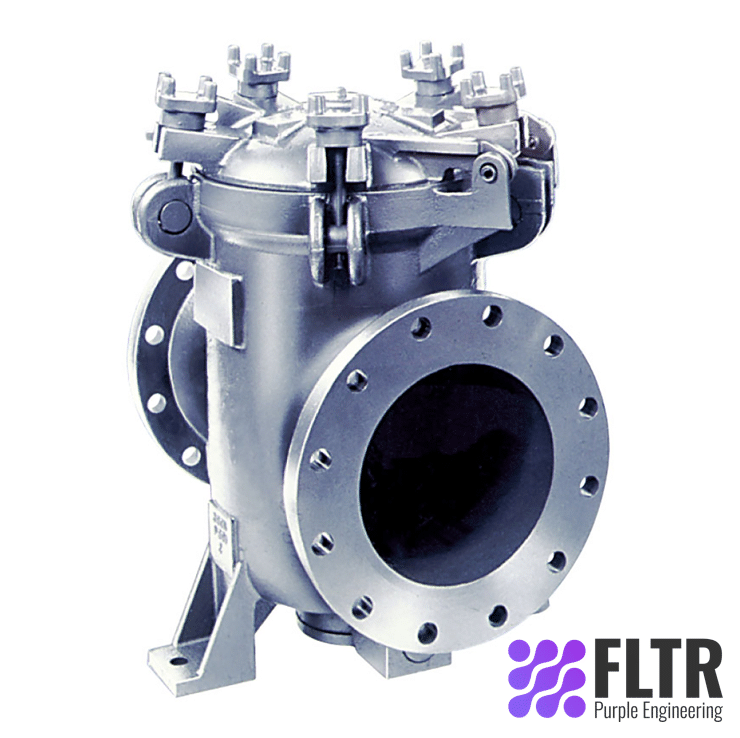

Model 73 Straight Flow
Model 73 simplex basket strainer, with its straight flow design, greatly reduces pressure loss and results in a compact strainer that can fit in tight spaces. American Bureau of Shipping (ABS) Type Approved for ship designers, builders, and owners.
Request a Quote for
Model 73 Straight Flow
Send us the details and we will get back to you.
- Quick open cover
- Straight through flow design
- Low-pressure loss
- Convoluted-basket design
- Hand removable basket
- Threaded drain
- O-ring cover seal
- Perforated or mesh stainless steel baskets standard
- American Bureau of Shipping (ABS) Type Approved for ship designers, builders and owners
Contact us to request a quote today.
Selection chart
| Size | Material | End connection | Seals | Pressure rating |
| 10″ to 12″ | Iron | Flanged 125# | Buna-N | 200 psi (13.8 bar) |
| 10″ to 12″ | Bronze | Flanged 150# | Buna-N | 200 psi (13.8 bar) |
| 14″ to 18″ | Iron | Flanged 125# | Buna-N | 150 psi (10.3 bar) |
| 14″ to 18″ | Bronze | Flanged 150# | Buna-N | 150 psi (10.3 bar) |
Cv factors*
| Size | Value |
| 10″ | 2300 |
| 12″ | 3200 |
| 14″ | 5000 |
| 16″ | 6000 |
| 18″ | 7000 |
| * For watrer with clean, perforated basket | |
Dimensions (in/mm) Model 73 straight flow
| Net Wt (lb / kg) | |||||||||
| Pipe size | A | B | C | D | F | G | H | Iron | Bronze |
| 10 | 23.00 / 584 | 11.00 / 279 | 12.19 / 310 | 29.00 / 737 | 47.00 / 1194 | 19.00 / 483 | 15⁄16 / 24 | 420 / 191 | 500 / 227 |
| 12 | 27.00 / 686 | 13.00 / 330 | 16.75 / 425 | 38.00 / 965 | 67.00 / 1702 | 23.00 / 584 | 1 / 25 | 550 / 250 | 825 / 374 |
| 14 | 31.00 / 787 | 15.50 / 394 | 18.75 / 476 | 45.00 / 1143 | 77.00 / 1956 | 27.00 / 686 | 1 / 25 | 850 / 386 | 1150 / 522 |
| 16 | 31.00 / 787 | 15.50 / 394 | 18.75 / 476 | 45.00 / 1143 | 77.00 / 1956 | 27.00 / 686 | 1 / 25 | 975 / 443 | 1400 / 635 |
| 18 | 31.00 / 787 | 15.50 / 394 | 18.75 / 476 | 45.00 / 1143 | 77.00 / 1956 | 27.00 / 686 | 1 / 25 | 1000 / 454 | — |
Contact us for more information.
- Wastewater
- Spray Nozzle Systems
- Heat Exchanger Protection
- Cooling Towers
- Boiler Feed Water
- Machining Fluids
- Deep Well injection
- Descaling Systems
- Lube Oil Systems
- Irrigation
- Paper Coating
- Refining
.
