Multi Filter Cartridge Housing-TM


,

Manufacturer:

Multi Filter Cartridge Housing-TM
Product Code: Multi Filter Cartridge Housing-TM

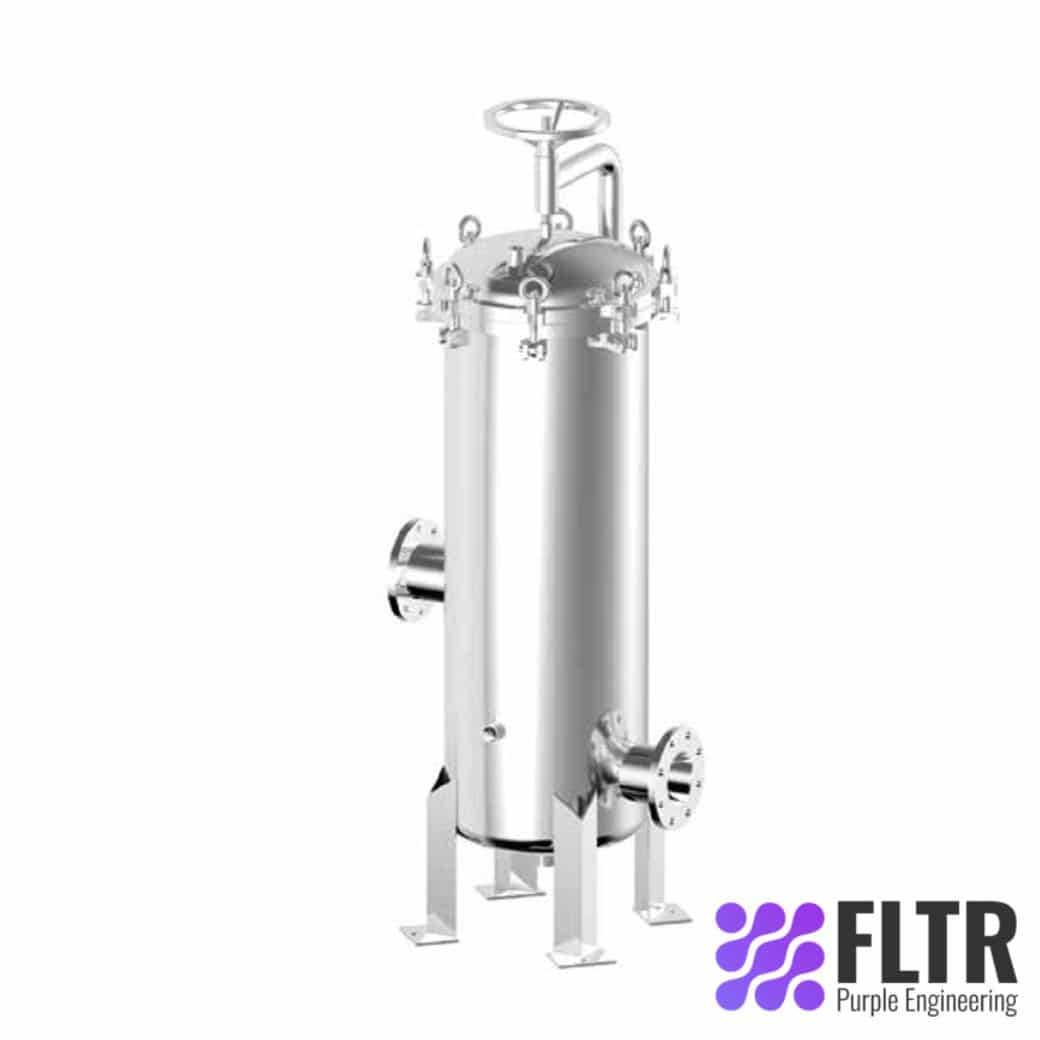

Multi Filter Cartridge Housing-TM is an ACID-Washed, Electrolyzed, Polished and Sand Blasted exterior and interior, Filter Cartridge Housing capable of operating at 75 0 C and 150psi of pressure which is designed for 100 0 C of temperature and 150psi of pressure.

pdf

Download Product PDF

Request a Quote for

Multi Filter Cartridge Housing-TM

Send us the details and we will get back to you.

  • Supporting Document (Optional)
  • Max. file size: 25 MB.
  • This field is hidden when viewing the form
Description

Multi Filter Cartridge Housing-TM is an ACID-Washed, Electrolyzed, Polished and Sand Blasted exterior and interior, Filter Cartridge Housing capable of operating at 75 0 C and 150psi of pressure which is designed for 100 0 C of temperature and 150psi of pressure.

Ordering Information
TM 20 2 4 F 2 10K E EA
Model No. of Rounds Length Material Adapters Inlet & Outlet Size Inlet & Outlet Type O-ring Exterior/ Interior Surface Finishing
TM 8-263



 3 – 30”

4 – 40”



 4 – 304

6 – 316

6L – 316L

 F – DOE

5 – 222

7 – 226



 2 – 2”

3 – 3”

4 – 4”

5 – 5”

6 – 6”

8 – 8”

10 – 10”

12 – 12”



 150P – ANSI

10K – JSI

PN10 – DIN

C – CLAMP

PF – PTF

NF – NPTF

PM – PTM

NM – NPTM

 E-EPDM

N-NBR

V-VITON

S-SILICON

TS – TEFLON+SILICON

 A- ACID-Washing

E- Electrolyze

P- Polishing

S-Sand Blasting


Specifications
Model Length N1/ N2 N4/ N5 m/ m m/ m m/ m m/ m m/ m m/ m m/m M³/Hr GPM Weight Volume
TM8~12 30″ 2″~4″F 1″PT-F Ø306 1638 700 350 506 Ø416 Ø14 24~36 120~180 77kg 89L
TM8~12 40″ 2″~4″F 1″PT-F Ø306 1888 700 350 506 Ø416 Ø14 32~48 160~240 85kg 107L
TM13~20 30″ 2″~4″F 1″PT-F Ø406 1694 700 350 606 Ø516 Ø14 39~60 195~300 105kg 165L
TM13~20 40″ 2″~4″F 1″PT-F Ø406 1944 700 350 606 Ø516 Ø14 52~80 260~400 125kg 198L
TM21~35 30″ 3″~4″F 1″PT-F Ø508 1726 700 350 708 Ø618 Ø14 63~84 315~420 150kg 327L
TM21~35 40″ 3″~4″F 1″PT-F Ø508 1958 700 350 708 Ø618 Ø14 84~112 420~560 195kg 389L
TM36~40 30″ 3″~4″F 1″PT-F Ø560 1726 700 350 760 Ø704 Ø18 87~108 435~540 190kg 327L
TM36~40 40″ 3″~4″F 1″PT-F Ø560 1976 700 350 760 Ø704 Ø18 116~138 580~720 225kg 389L
TM41-52 30″ 4″~6″F 1″PT-F Ø600 1823 800 400 800 Ø744 Ø18 111~138 555~690 200kg 401L
TM41~52 40″ 4″~6″F 1″PT-F Ø600 2074 800 400 800 Ø744 Ø18 148~184 740~920 230kg 460L
TM53~57 30″ 4″~6″F 1″PT-F Ø650 1880 850 450 850 Ø794 Ø18 141~168 705~840 242kg 484L
TM53~57 40″ 4″~6″F 1″PT-F Ø650 2130 850 450 850 Ø794 Ø18 188~224 940~1120 280kg 567L
TM58~82 30″ 4″~6″F 11/2″PT-F Ø762 2080 950 500 962 Ø962 Ø19 171~243 855~1215 365kg 665L
TM58~82 40″ 4″~6″F 11/2″PT-F Ø762 2330 950 500 962 Ø962 Ø19 228~324 1140~1620 408kg 802L
TM83~117 30″ 6″~8″F 2″PT-F Ø900 2233 1000 550 1100 Ø1100 Ø19 246~285 1230~1425 687kg 1042L
TM83~117 40″ 6″~8″F 2″PT-F Ø900 2483 1000 550 1100 Ø1100 Ø19 328~380 1640~1900 715kg 1201L
TM118~146 30″ 6″~8″F 2″PT-F Ø1000 2307 1100 600 1200 Ø910 Ø22 288~405 1440~2025 791kg 1350L
TM118~146 40″ 6″~8″F 2″PT-F Ø1000 2537 1100 600 1200 Ø910 Ø22 384~540 1920~2700 832kg 1546L
TM147~185 30″ 10″~12″F 2″PT-F Ø1100 2442 1250 650 1300 Ø1010 Ø22 408~465 2040~2325 1046kg 1580L
TM147~185 40″ 10″~12″F 2″PT-F Ø1100 2692 1250 650 1300 Ø1010 Ø22 544~620 2720~3100 1102kg 1817L
TM186~220 30″ 10″~12″F 2″PT-F Ø1220 2465 1250 650 1400 Ø1130 Ø22 468~692 2340~2595 1188kg 1955L
TM186~220 40″ 10″~12″F 2″PT-F Ø1220 2715 1250 650 1400 Ø1130 Ø22 624~692 3120~3460 1247kg 2238L
