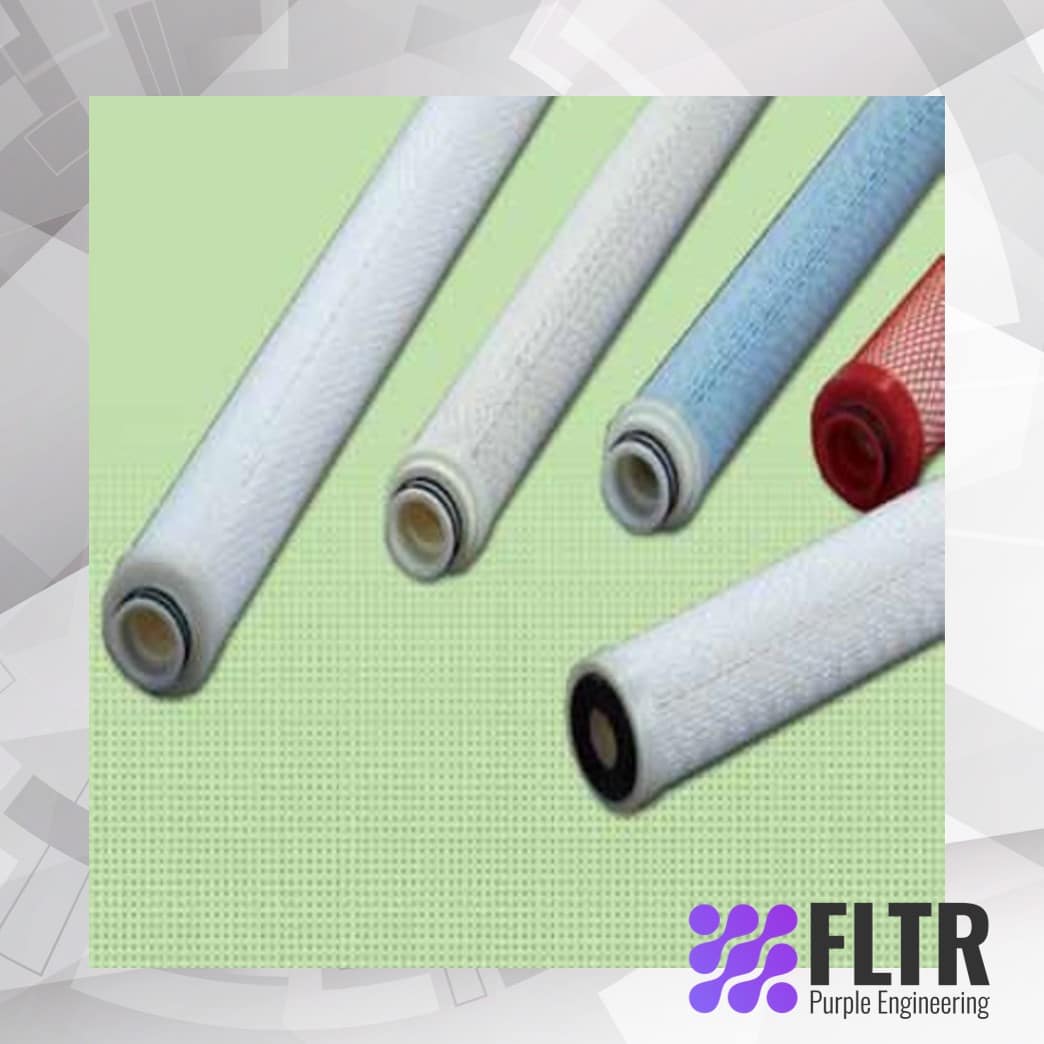

Netclean Pleated Filter Cartridges
Netclean Pleated Filter Cartridges
Combining properties of surface and depth filtration by using specialized filter media, Net clean Pleated Filter Cartridges are developed to meet demanding processing requirements of high purity and also high flow capacity. Outer netting construction not only keeps the integrity of Netclean cartridges, but also greatly reduces pressure drop and induces higher flow rate. Netclean is available in various filter media to meet different operating conditions and are particularly recommended to applications with high flow rate requirements.
Request a Quote for
Netclean Pleated Filter Cartridges
Send us the details and we will get back to you.
Combining properties of surface and depth filtration by using specialized filter media, Net clean Pleated Filter Cartridges are developed to meet demanding processing requirements of high purity and also high flow capacity. Outer netting construction not only keeps the integrity of Netclean cartridges, but also greatly reduces pressure drop and induces higher flow rate. Netclean is available in various filter media to meet different operating conditions and are particularly recommended to applications with high flow rate requirements.
- High surface area design provides excellent flow capacity and long service life while maintaining maximum filtration performance.
- Various filter media are available to satisfy assorted operating conditions with wide chemical compatibility.
- Constructed by advanced thermal welding technology to seal all components.
- Free of binders, additives, and lubricants.
| Filter Media | Polypropylene, Polyester, Glass Fiber |
| Micron Rating | 1, 2, 5, 10, 20, 50 μm |
| Gasket/O-ring | Silicone, EPDM, Viton, NBR |
| Core | Polypropylene, ABS |
| Filter Support | Polypropylene, Polyester |
| Net | Polypropylene, ABS |
| Cage | Polypropylene |
| inside Diaments | 1.1″(28mm) |
| Outside Diaments | 2.7″(70mm) |
| Maximum Operating Temperature | 80oC (176oF) |
| Maximum Differential Pressure | 4.8 bar at 20oC (70 psi at 68oF) |
| 3.4 bar at 50oC (50 psi at 122oF) | |
| Recommended Change Out Differential Pressure | 2.4 bar(35 psi) |
Pre RO/DI, Chemicals, Petrochemicals, Oil Refinement, Electronics, Inks, Paints, Food & Beverage, PCW, Cooling Water
