OEM Replacements for FACET SS Series 5


, ,

Manufacturer:

OEM Replacements for FACET SS Series 5
Product Code: OEM Replacements for FACET SS Series 5

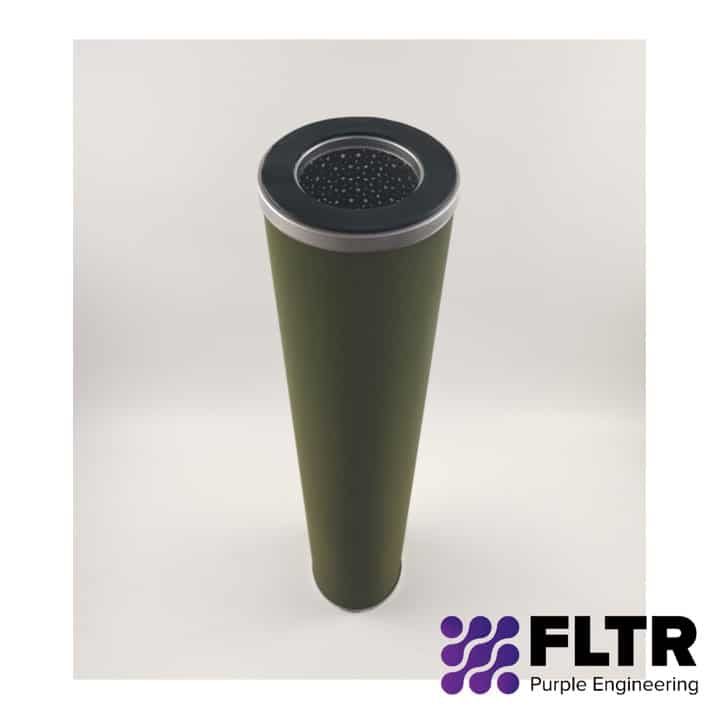

Facet Ss-5 Series Synthetic Separator Cartridges SS633FD-5 Filter
Facet’s SS-5 Series synthetic separator cartridges feature a specially developed hydrophobic synthetic media which offers all the permanent features of a Teflon ® screen, with the ability to handle higher flow rates. Synthetic mesh is wrapped around a treated, perforated metal shell, then adhesive-bonded to gasketed metal end caps. The synthetic mesh is designed for more effective water-repelling characteristics, assuring long, trouble-free service.

Request a Quote for

OEM Replacements for FACET SS Series 5

Send us the details and we will get back to you.

  • Supporting Document (Optional)
  • Max. file size: 25 MB.
  • This field is hidden when viewing the form
Description

Facet Ss-5 Series Synthetic Separator Cartridges SS633FD-5 Filter
Facet’s SS-5 Series synthetic separator cartridges feature a specially developed hydrophobic synthetic media which offers all the permanent features of a Teflon ® screen, with the ability to handle higher flow rates. Synthetic mesh is wrapped around a treated, perforated metal shell, then adhesive-bonded to gasketed metal end caps. The synthetic mesh is designed for more effective water-repelling characteristics, assuring long, trouble-free service.

Both Facet ST-5 and SS-5 Series Separators have the distinctive Facet Velocigard which provides
a balanced flow of product (radially inward) throughout the cartridge.
All metal components are treated to resist corrosion. The maximum recommended operating temperature is 240°F. For compatibility in extreme operating conditions, other gaskets, adhesive and metal materials are available.

Ordering Information

Contact us to request a quote today.

Specifications
MODEL NUMBER OUTSIDE DIAMETER NOMINAL LENGTH INSIDE DIAMETER SEALING END INSIDE DIAMETER MOUNTING END
in mm in mm in mm in mm
SS318FA-5 3 76 18 460 17∕32 13 2 51
SS324FA-5 3 76 24 610 17∕32 13 2 51
SS330FA-5 3 76 30 760 17∕32 13 2 51
SS412FC-5 41∕8 105 11½ 290 17∕8 48 17∕8 48
SS422FC-5 41∕8 105 22½ 570 17∕8 48 17∕8 48
SS432FC-5 41∕8 105 31½ 800 17∕8 48 17∕8 48
SS415FB-5 4½ 114 15 380 17∕32 13 3½ 89
SS417FB-5 4½ 114 17 430 17∕32 13 3½ 89
SS424FB-5 4½ 114 24 610 17∕32 13 3½ 89
SS430FB-5 4½ 114 30 760 17∕32 13 3½ 89
SS436FB-5 4½ 114 36 910 17∕32 13 3½ 89
SS609FB-5 6 152 9 230 17∕32 13 3½ 89
SS609FF-5 6 152 9 230 3½ 89 4½ 114
SS611FD-5 6 152 11¼ 290 3½ 89 3½ 89
SS611H-5 6 152 11¼ 290 5½ 140 5½ 140
SS612FB-5 6 152 12 300 17∕32 13 3½ 89
SS612FF-5 6 152 12 300 3½ 89 4½ 114
SS614FD-5 6 152 14½ 370 3½ 89 3½ 89
SS614H-5 6 152 14½ 370 5½ 140 5½ 140
SS616FD-5 6 152 16¼ 410 3½ 89 3½ 89
SS616H-5 6 152 16¼ 410 5½ 140 5½ 140
SS618FB-5 6 152 18 460 17∕32 13 3½ 89
SS622FD-5 6 152 22¼ 560 3½ 89 3½ 89
SS622H-5 6 152 22¼ 560 5½ 140 5½ 140
SS624FB-5 6 152 24 610 17∕32 13 3½ 89
SS624FE-5 6 152 24 610 3½ 89 41∕8 105
SS624FF-5 6 152 24 610 3½ 89 4½ 114
SS629FD-5 6 152 28¾ 730 3½ 89 3½ 89
SS629H-5 6 152 28¾ 730 5½ 140 5½ 140
SS630FB-5 6 152 30 760 17∕32 13 3½ 89
SS630FD-5 6 152 30 760 3½ 89 3½ 89
SS630FE-5 6 152 30 760 3½ 89 41∕8 105
SS630FF-5 6 152 30 760 3½ 89 4½ 114
SS633FB-5 6 152 33¼ 840 17∕32 13 3½ 89
SS633FD-5 6 152 33¼ 840 3½ 89 3½ 89
SS633H-5 6 152 33¼ 840 5½ 140 5½ 140
SS636FD-5 6 152 36 910 3½ 89 3½ 89
SS636FE-5 6 152 36 910 3½ 89 41∕8 105
SS636FF-5 6 152 36 910 3½ 89 4½ 114
SS640FD-5 6 152 40 1020 3½ 89 3½ 89
SS640FE-5 6 152 40 1020 3½ 89 41∕8 105
SS640FF-5 6 152 40 1020 3½ 89 4½ 114
SS644FD-5 6 152 44 1120 3½ 89 3½ 89
SS644FE-5 6 152 44 1120 3½ 89 41∕8 105
SS644FF-5 6 152 44 1120 3½ 89 4½ 114
SS648FD-5 6 152 48 1220 3½ 89 3½ 89
SS648FF-5 6 152 48 1220 3½ 89 4½ 114
SS656FD-5 6 152 56 1420 3½ 89 3½ 89
SS656FF-5 6 152 56 1420 3½ 89 4½ 114
