Phase-LOK™ S Series (JS)
Phase-LOK™ S Series (JS)
Pleated Silicone Impregnated Cellulose Separator

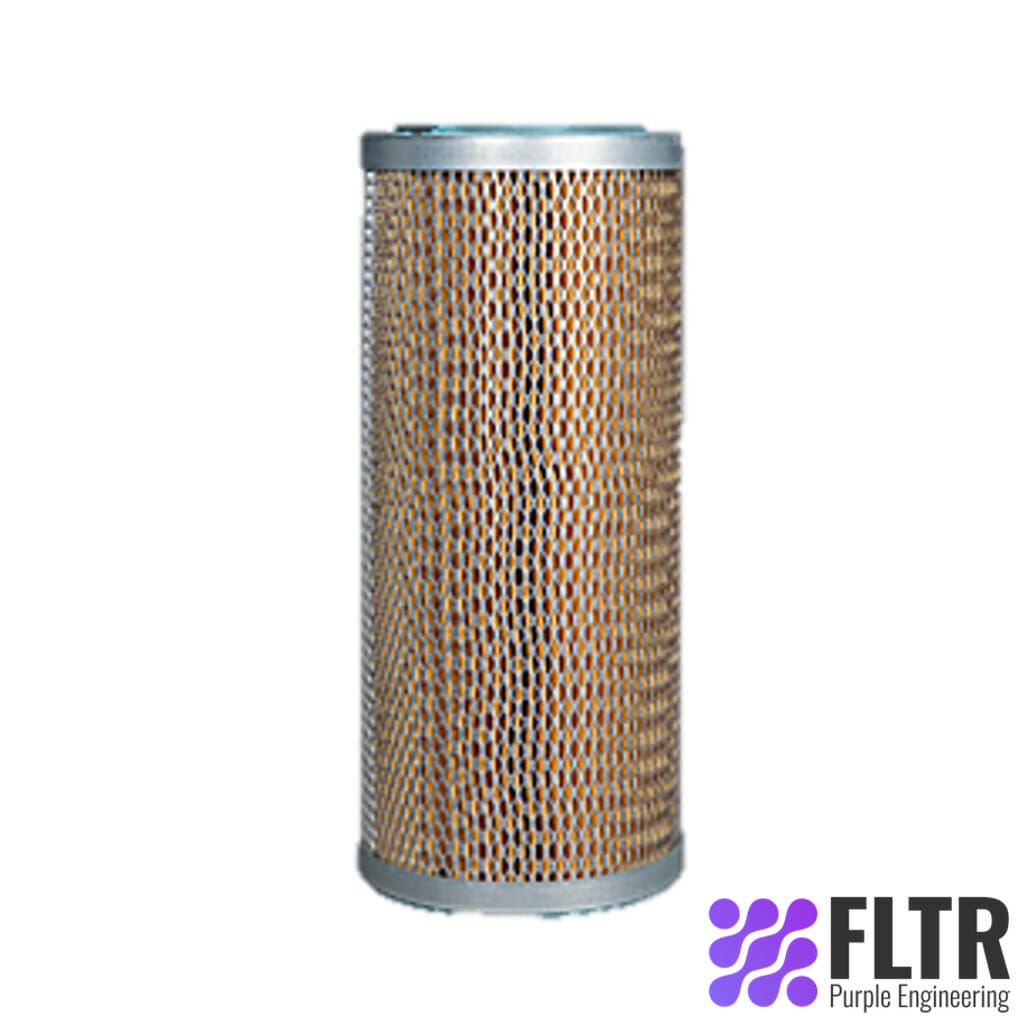

Phase-LOK S Series Pleated Silicone Impregnated Cellulose Separator Elements incorporate specially treated silicone impregnated cellulose to produce a hydrophobic media that repels water while allowing hydrocarbons to pass through.
Due to the filtration level achieved in the coalescer stage, they rarely foul with solids and typically require replacement only every second or third coalescer change to a maximum service life of one year.
Request a Quote for
Phase-LOK™ S Series (JS)
Send us the details and we will get back to you.
Two-phase liquid separation elements separate and remove undesired free aqueous or non-aqueous droplets from a liquid stream.
Our two-phase liquid separation product line contains a large assortment of coalescing filters and horizontal re-packs, as well as, liquid separating elements.
Filters are available in fiberglass and silicone impregnated cellulose designs as well as synthetic, stainless steel, and Teflon® materials for use in caustic service.
Contact us to request a quote today.
| Criteria | LiquidPleat™ |
| Application | Feed for CDU, Hydrocracking, Hydrotreating, Catalyst Protection, CAT Cracker, CAT Reforming, Vis Breaking, Delayed Coking, High Temperature Solvents, and other refinery systems |
| Operating Temperatures | 500 ºF |
| Nominal OD | 2.5” to over 6” |
| Nominal Lengths | Up to 60” continuous length cartridge |
| Hardware | End Caps: Carbon Steel or Stainless Steel Core and Outerwrap: Carbon Steel or Stainless Steel Standard: Viton Options: Teflon and Klinger |
| Standard Media Options | Microfiberglass |
| Typical End Cap Configurations | JHF, 3862, 6055/4055, JXC (pleated bag) |
| Flow Direction | Outside to In or Inside to Out |
| Micron rating | 0.5 to 100 *Other micron ratings are available upon request |
- The HT cartridges maintain filtration efficiency while eliminating complex cleaning processes that may require the use of harsh chemicals to clean.
- Rated for operating temperature of 500 °F (260 °C) this cartridge provides refineries with an effective and efficient alternative to older technologies, such as string-wound cartridges which may not be suitable at lower micron ratings.
- Available in a wide range of cartridge sizes from small diameter (2.5” OD) to large diameter (6+” OD) for new applications and vessels or to retrofit in existing vessels.
- Used as pre-filters to backwashable filters systems, these cartridges may extend run times between cleaning-cycles leading to reduced downtime and maintenance costs.
The High Temperature (HT) Series cartridges have been designed to filter solid particulates down to 0.5 microns from liquid feed streams with a maximum continuous temperature of 425 deg F in refinery applications.
