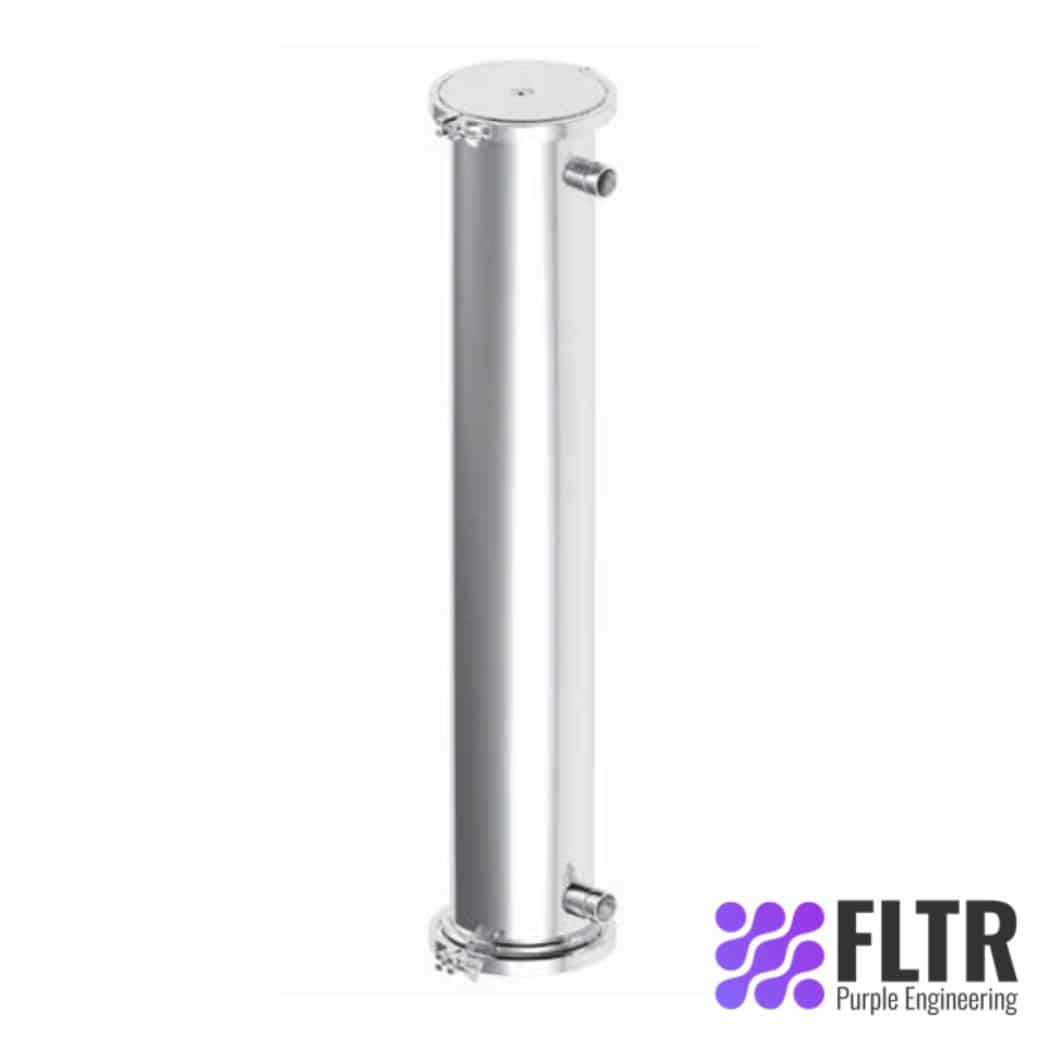

RO Membrance Housing (Low Pressure Type)-RL8
RO Membrance Housing (Low Pressure Type)-RL8
RO Membrance Housing (Low Pressure Type)-RL8 is an Electrolyzing, Burnishing & Polishing exterior and interior, Membrance Housing capable of operating at 75 Celsius and 300psi of pressure which is designed for 100 Celsius of temperature and 300psi of pressure.
Request a Quote for
RO Membrance Housing (Low Pressure Type)-RL8
Send us the details and we will get back to you.
RO Membrance Housing (Low Pressure Type)-RL8 is an Electrolyzing, Burnishing & Polishing exterior and interior, Membrance Housing capable of operating at 75 Celsius and 300psi of pressure which is designed for 100 Celsius of temperature and 300psi of pressure.
| RL8 | 4 | 4 | 1 | PF | 1 | V | E | BA |
| Model | Length | Shell Material | N1 Size | N1 Type | N2 Size | N2 Type | O-ring | Exterior/ Interior Surface Finishing |
| RL8 | 4-40″ | 4-304 | 1-1″ | PF-PTF | 1-1″ | PF-PTF | E-EPDM | A – ACID-Washing |
| 8-80″ | 6-316 | 121-1-1/2″ | NF-NPTF | 121-1-1/2″ | NF-NPTF | N-NBR | B – Burnishing | |
| 12-120″ | 2-2″ | V-Mechanical Joint | 2-2″ | V-Mechanical Joint | V-VITON | P- Polishing | ||
| 16-160″ | C-CLAMP | C-CLAMP | ||||||
| 20-200″ |
| Model | A m/m | B m/m | C m/m | D m/m | N1 | N2 | Weight |
| RL8-4 | Ø210 | 1328 | 1300 | 1132 | 1″ | 1-1/2″ | 31kg |
| RL8-8 | Ø210 | 2344 | 2316 | 2148 | 1″ | 1-1/2″ | 47kg |
| RL8-12 | Ø210 | 3360 | 3332 | 3164 | 1″ | 1-1/2″ | 63kg |
| RL8-16 | Ø210 | 4376 | 4348 | 4180 | 1″ | 1-1/2″ | 78kg |
| RL8-20 | Ø210 | 5392 | 5364 | 5196 | 1″ | 1-1/2″ | 94kg |
