Sand Media Filtration System

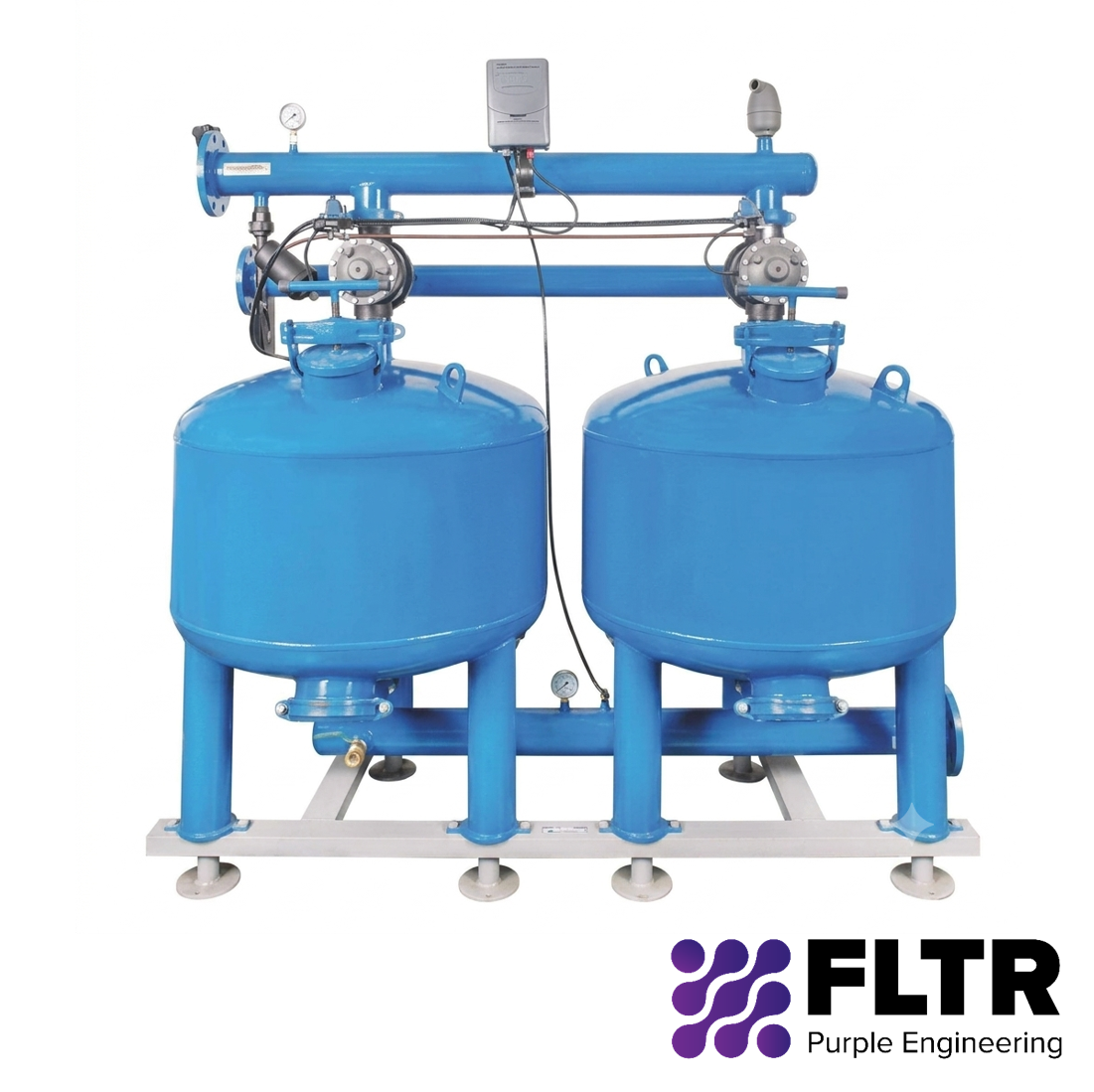

Automatic sand media filter designed for efficient removal of suspended solids from water using quartz sand or garnet media. It delivers high filtration capacity with low pressure loss and features an automatic backwash system that cleans the filter bed online without interrupting operation, ensuring continuous performance and minimal maintenance.
Request a Quote for
Sand Media Filtration System
Send us the details and we will get back to you.
Automatic sand media filter designed for efficient removal of suspended solids from water using quartz sand or garnet media. It delivers high filtration capacity with low pressure loss and features an automatic backwash system that cleans the filter bed online without interrupting operation, ensuring continuous performance and minimal maintenance.
- High filtration rate, low pressure loss, large filtration water.
- The system filter unit has 16 (400mm) to 60 (1500mm) specifications, and various installation methods are available.
- Carbon steel material, good corrosion resistance, long service life.
- Automatic control of unattended.
- Continuous online automatic back-flush of dirt and impurities.
- The selected quartz sand or garnet as the filter medium, the minimum diameter of 0.16mm can be selected as the homogeneous filter material.
Contact us to request a quote today.
| MODEL | VESSEL DIAMETER (mm) |
VESSEL NO. |
OUTLET INLET DIAMETER (mm) |
MAX PRESSURE (bar) |
FILTERING SURFACE (m2) |
DRAIN OULET DIAMETER (in) |
BACKWASH FLOW (m/h) |
FLOW RANGE (m3/h) |
| F24-2 | 600 | 2 | 3″-80 | 10 | 0.6 | 3″-80 | 15 | 30-50 |
| F28-2 | 700 | 2 | 3″-80 | 10 | 0.8 | 3″-80 | 20 | 50-70 |
| F28-3 | 700 | 3 | 4″-100 | 10 | 1.2 | 3″-80 | 20 | 70-90 |
| F32-2 | 800 | 2 | 4″-100 | 10 | 1.0 | 3″-80 | 25 | 60-80 |
| F32-3 | 800 | 3 | 6″-150 | 10 | 1.5 | 3″-80 | 25 | 90-130 |
| F36-2 | 900 | 2 | 4″-100 | 10 | 1.2 | 3″-80 | 35 | 90-100 |
| F36-3 | 900 | 3 | 6″-150 | 10 | 1.8 | 3″-80 | 30 | 120-150 |
| F40-2 | 1000 | 2 | 4″-100 | 10 | 1.6 | 3″-80 | 40 | 90-100 |
| F40-3 | 1000 | 3 | 6″-150 | 10 | 2.4 | 3″-80 | 40 | 130-150 |
| F48-2 | 1200 | 2 | 6″-150 | 10 | 2.2 | 4″-100 | 50 | 140-180 |
| F48-3 | 1200 | 3 | 8″-200 | 10 | 3.3 | 4″-100 | 50 | 150-250 |
| F48-4 | 1200 | 4 | 10″-273 | 10 | 4.4 | 4″-100 | 50 | 200-350 |
