SENTINEL
SENTINEL

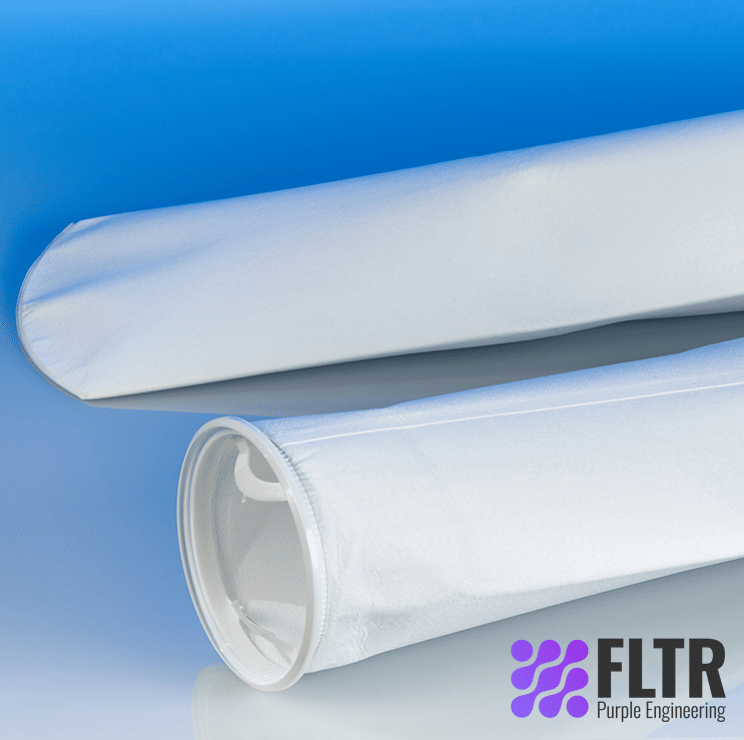

SENTINEL filter bags comply with the industry standard of a bypass-free filter bag construction. They are available in polypropylene and polyester.
Request a Quote for
SENTINEL
Send us the details and we will get back to you.
- Fully-welded construction with patented SENTINEL seal ring provides 100% bypass-free filtration
- The pressure-activated SENTINEL seal ring provides a flexible, chemically resistant seal that adapts to any bag filter housing
- Material is free from silicone and crater-forming substances
- Special surface treatment significantly reduces fiber release
- Stable and flexible welded seams that adapt to the restrainer basket
- The handles in the ring make replacing the filter bag quick and easy
- Eaton strongly recommends the use of an insertion tool that facilitates the insertion of the filter bag into the bag filter housing and ensures the correct alignment of the filter bag inside the restrainer basket
Contact us to request a quote today.
| Materials | Needle felt polypropylene or polyester | |
| Seal rings | Welded polypropylene or polyester SENTINEL seal ring | |
| Retention ratings | 1, 5, 10, 25, 50, 100, 200 µm | |
| Sizes | 01: Ø 7 x 17” L (180 x 430 mm) 02: Ø 7 x 32” L (180 x 810 mm) 03: Ø 4 x 9” L (100 x 230 mm) 04: Ø 4 x 15” L (100 x 380 mm) |
|
| Filter area | 01: 2.6 ft² (0.24 m²) 02: 5.2 ft² (0.48 m²) 03: 0.9 ft² (0.08 m²) 04: 1.7 ft² (0.16 m²) |
|
| Max. operating temperatures | Polypropylene: 194 °F (90 °C) Polyester: 302 °F (150 °C) |
|
| Max. differential pressure | 36.2 psi (2.5 bar) | |
| Recommended change-out pressure for disposal2 | 11.6 – 21.7 psi (0.8 – 1.5 bar) | |
| Max. flow rates3 | 01: 88 GPM (20 m³/h) 02: 176 GPM (40 m³/h) 03: 26 GPM (6 m³/h) 04: 53 GPM (12 m³/h) |
Contact us for more information.
- Paints and varnishes
- Inks
- Chemicals
- Process water
