SNAP-RING
SNAP-RING

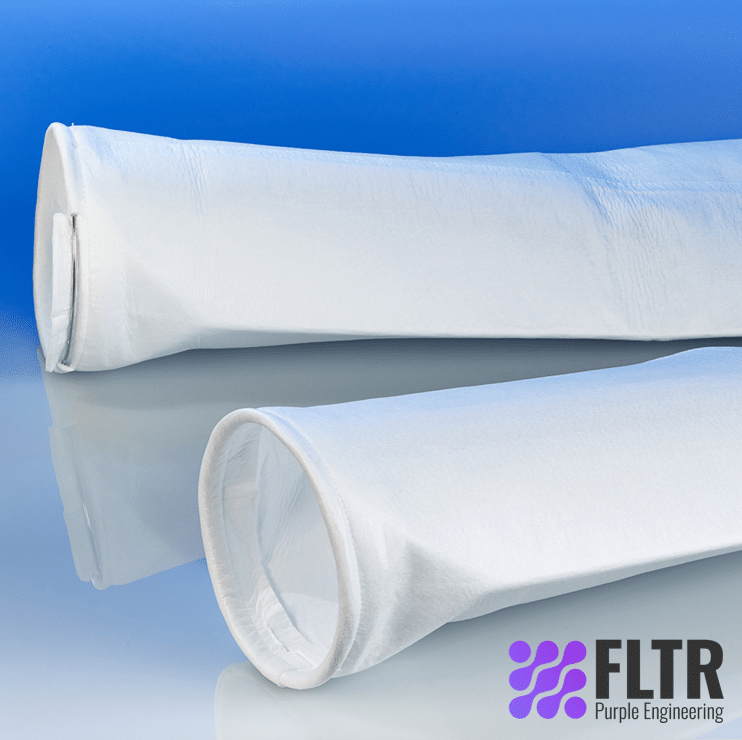

SNAP-RING filter bags are manufactured to the highest standards. Materials must meet stringent specifications for filtration performance and media purity. Production under ISO 9001: 2015 quality systems ensures reliability and repeatability from order to order, year after year.
Request a Quote for
SNAP-RING
Send us the details and we will get back to you.
- Heavy-duty sewing thread and the metal seal ring are produced to Eaton specification.
- The SNAP-RING seal ring adapts to any bag filter housing.
- Material is free from silicone and crater-forming substances (including HT material).
- Eaton strongly recommends the use of an insertion tool that facilitates the insertion of the filter bag into the bag filter housing and ensures the correct alignment of the filter bag inside the restrainer basket.
Contact us to request a quote today.
| Materials | Needle felt polypropylene, polyester, nylon, wool, polytetrafluorethylene (PTFE) or meta-Aramid (HT) | |
| Seal rings | Sewn stainless steel or zincplated steel SNAP-RING seal ring | |
| Retention rings | 1, 5, 10, 25, 50, 100, 200 µm | |
| Sizes | 01: Ø 7 x 17” L (180 x 430 mm) 02: Ø 7 x 32” L (180 x 810 mm) 03: Ø 4 x 9” L (100 x 230 mm) 04: Ø 4 x 15” L (100 x 380 mm) |
|
| Filter area | 01: 2.6 ft² (0.24 m²) 02: 5.2 ft² (0.48 m²) 03: 0.9 ft² (0.08 m²) 04: 1.7 ft² (0.16 m²) |
|
| Max. operating temperatures | Polypropylene: 230 °F (110 °C) Polyester: 374 °F (190 °C) Nylon: 374 °F (190 °C) PTFE: 500 °F (260 °C) HT: 401 °F (205 °C) |
|
| Max. differential pressure | 36.2 psi (2.5 bar) | |
| Recommended change-out pressure for disposal | 11.6 – 21.7 psi (0.8 – 1.5 bar) | |
| Max. flow rates | 01: 88 GPM (20 m³/h) 02: 176 GPM (40 m³/h) 03: 26 GPM (6 m³/h) 04: 53 GPM (12 m³/h) |
Contact us for more information.
- Paints and varnishes
- Inks
- Chemicals
- Solvents
