Stainless Steel Filter Cartridges


, , ,

Manufacturer:

Stainless Steel Filter Cartridges
Product Code: Stainless Steel Filter Cartridges

Stainless Steel Filter Cartridges are superior replacements to those who can’t withstand server operating conditions such as strong acid and alkali, high temperature, and critical operating pressure. Each layer of our stainless steel filter cartridges is metallurgical bonded which ensures stable pore size without media migration in severe process conditions. Constructed by stainless steel wire mesh or metal fiber, Our stainless steel filter cartridges are available in a wide range of micron ratings.

pdf

Download Product PDF

Request a Quote for

Stainless Steel Filter Cartridges

Send us the details and we will get back to you.

  • Supporting Document (Optional)
  • Max. file size: 25 MB.
  • This field is hidden when viewing the form
Description

Stainless Steel Filter Cartridges are superior replacements to those who can’t withstand server operating conditions such as strong acid and alkali, high temperature, and critical operating pressure. Each layer of our stainless steel filter cartridges is metallurgical bonded which ensures stable pore size without media migration in severe process conditions. Constructed by stainless steel wire mesh or metal fiber, Our stainless steel filter cartridges are available in a wide range of micron ratings.

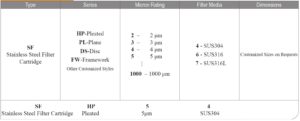

Ordering Information


Specifications
Filter Media SUS304, SUS316, SUS316L Wire Mesh / Fiber  Plane, Pleated

(Single layer, Multiple layers)
Weave Plain, Square, Twill, Twill Dutch, Metal Fiber
Micron Rating 2, 3, 4, 5, 10, 15, 20, 25, 40, 70, 100, 150, 200, 250, 300, 350, 400, 450, 500 ~ 1000 μm
Gasket/O-ring Silicone, EPDM, Viton, Teflon encapsulated Viton
Core SUS304, SUS316, SUS316L
Filter Support SUS304, SUS316, SUS316L
End Cap SUS304, SUS316, SUS316L
Performance
Maximum Operating Temperature 677oC (1250oF) (Base on the selection of O-ring material)
Maximum Differential Pressure 7 bar at 25oC (100 psi at 77oF)
Recommended Change Out Differential Pressure 3.8 bar(57 psi)



Applications

CPF, CPL, Process Gases, Petrochemical, Strong Acid & Alkali, Seperation, Silencing, Optoelectronics, Food & Beverages,  PCB, High Viscocity Process, Polymer Filtration
