Stainless Steel Top-loading Bag Filter Housings
Stainless Steel Top-loading Bag Filter Housings

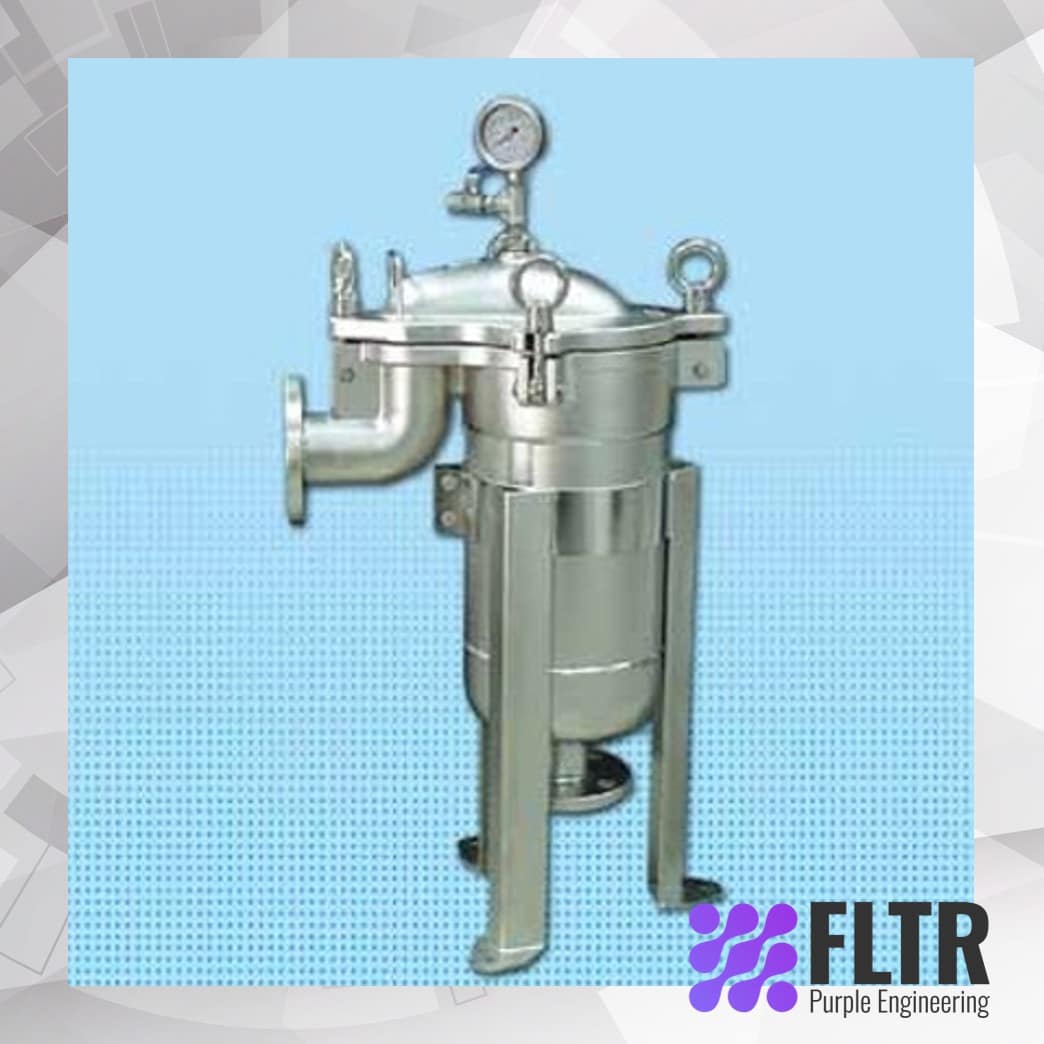

Stainless Steel Top-loading Bag Filter Housings are manufactured by heavy-duty stainless steel components to meet the most demanding applications. The top-loading design highly utilizes the filter housings with results of minimum headroom of unfiltered liquid, and high filtration performance. The height of the housing is adjustable by the design of the mounting- legs module, making installation flexible and adaptable. Swing bolt closure enables the housing to withstand higher pressure and perform better sealing.
Request a Quote for
Stainless Steel Top-loading Bag Filter Housings
Send us the details and we will get back to you.
Stainless Steel Top-loading Bag Filter Housings are manufactured by heavy-duty stainless steel components to meet the most demanding applications. The top-loading design highly utilizes the filter housings with results of minimum headroom of unfiltered liquid, and high filtration performance. The height of the housing is adjustable by the design of the mounting- legs module, making installation flexible and adaptable. Swing bolt closure enables the housing to withstand higher pressure and perform better sealing.
| Model | A | C | ØD | E | ØJ | ØK | L | M | Inlet Outlet | N3 | Flow Rate | G. Weight | Volume |
| UFBT01 | 385 | 555 | 216 | 270 | 12 | 350 | 504 | 170 | 2″ Flange | 1/2″ | 0~ 90 GPM / 0~20 m3/hr | 40kg | 16L |
| UFBT02 | 735 | 905 | 216 | 270 | 12 | 332 | 704 | 170 | 2″ Flange | 1/2″ | 0~200 GPM / 0~45 m3/hr | 48kg | 31L |
| UFBT01 | 385 | 585 | 216 | 302 | 12 | 350 | 504 | 200 | 2.5″ Flange | 1/2″ | 0~ 90 GPM / 0~20 m3/hr | 40kg | 16L |
| UFBT02 | 735 | 935 | 216 | 302 | 12 | 332 | 704 | 200 | 2.5″ Flange | 1/2″ | 0~200 GPM / 0~45 m3/hr | 48kg | 31L |
UNIT: mm
Customized housings are available on request.
Actual flow rates will be determined on element selection and fluid viscosity.
| Maximum Operating Temperature | 75oC (167oF) (Base on the selection of filter element and O-ring material.) |
| Maximum Operating Pressure | 10 bar at 75oC (150 psi at 167oF) |
Inks & Polymers Filtration, Paints & Lacquer Filtration, Chemicals, Petrochemicals, Electronics, Waste Water Treatment, Food & Beverage, Pharmaceuticals, Pre RO
