String Wound Filter Cartridges


, , ,

Manufacturer:

String Wound Filter Cartridges
Product Code: String Wound Filter Cartridges

String Wound Filter Cartridges are manufactured by computer modeling process which optimizes the filter cartridges geometrically and maximizes the use of cartridge surface area by the diamond-shaped depth filtration cones. Enhanced graded density design offers high flow rate, low pressure drop and improved dirt holding capacity. Several filter media are available in Our SW series, playing more effective and efficient solutions in different applications and processes.

Request a Quote for

String Wound Filter Cartridges

Send us the details and we will get back to you.

  • Supporting Document (Optional)
  • Max. file size: 25 MB.
  • This field is hidden when viewing the form
Description

String Wound Filter Cartridges are manufactured by computer modeling process which optimizes the filter cartridges geometrically and maximizes the use of cartridge surface area by the diamond-shaped depth filtration cones. Enhanced graded density design offers high flow rate, low pressure drop and improved dirt holding capacity. Several filter media are available in Our SW series, playing more effective and efficient solutions in different applications and processes.

  • Continuous strand winding process provides consistent performances of high dirt holding capacity, long service and high flow rate. Numerous filter media provide excellent chemical compatibility for different applications.
  • No odor, no foaming and no media migration.
  • Computer programming capability optimizes the filter cartridge geometrically and maximizes the use of surface area.

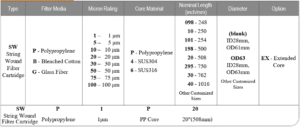

Ordering Information


Specifications
Filter Media Polypropylene, Bleached Cotton, Glass Fiber
Micron Rating 1, 5, 10, 20, 30, 50, 75, 100 μm
Core Material Polypropylene, SUS304, SUS316
Inside Diameter 1.1″(28mm), 1.2″(30mm)
Outside Diameter 2.4″(61mm), 2.5″(63mm), 4.5″(115mm)
Performance
Maximum Operating Temperature Polypropylene : 90oC (200oF)

Bleached Cotton with SUS Core : 150oC (300oF)

Glass Fiber with SUS Core : 400oC (750oF)

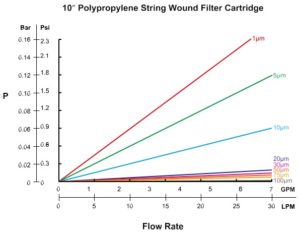

Maximum Differential Pressure 2.7 bar at 27oC (50 psi at   80oF)

1.4 bar at 60oC (20 psi at 140oF)

0.7 bar at 82oC (10 psi at 180oF)
Recommended Change Out Differential Pressure 1 bar (14 psi)


Applications
  • Plating Solutions, Pre RO/DI, Chemicals, Petrochemical Process, Food & Beverage, Electronics
