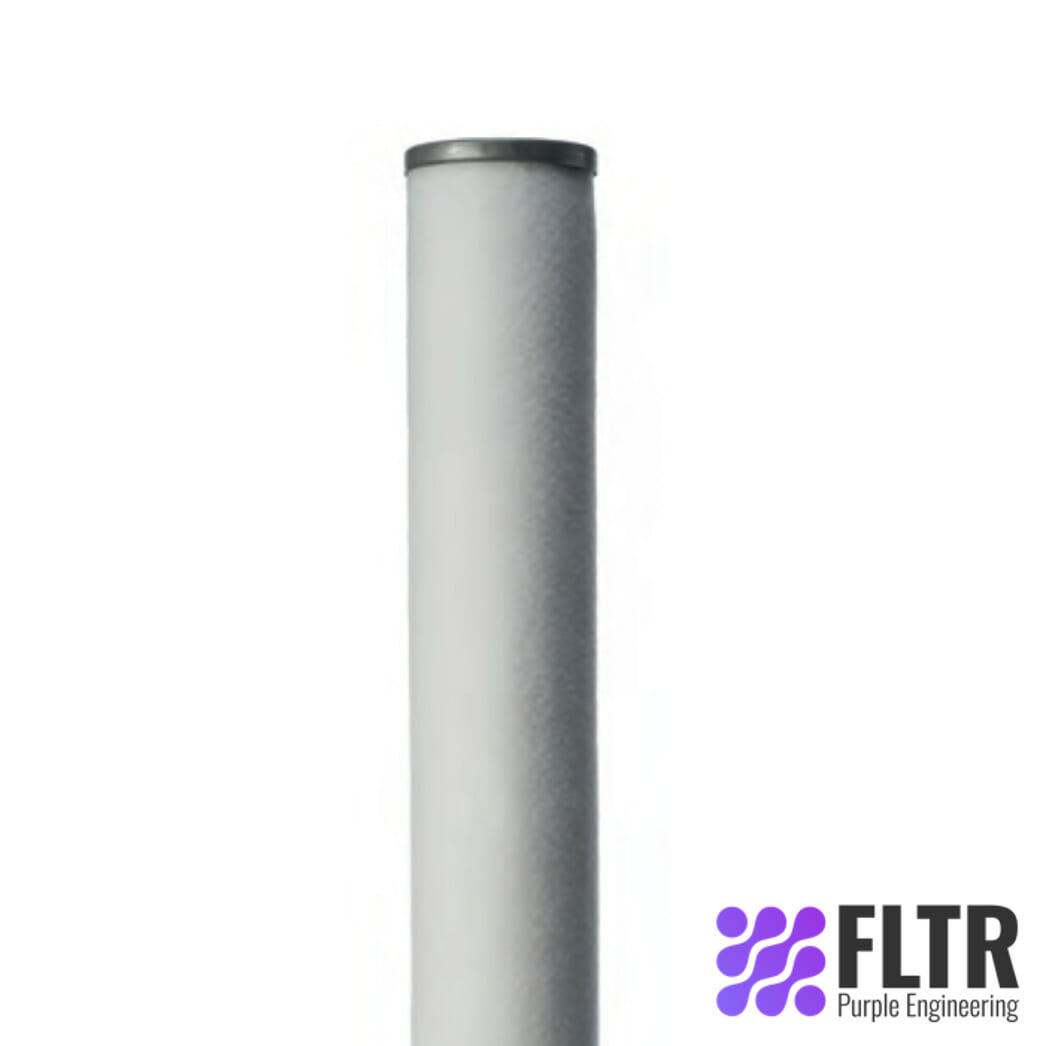

TRI-SHiELD Series (JRGC) Gas Coalescing Cartridges
TRI-SHiELD Series (JRGC) Gas Coalescing Cartridges
Vertical Reverse Flow Coalescer Cartridges
Designed for vertical coalescers used in coalescing applications such as compressor discharge, contactor protection, contactor discharge, these cartridges are perfect to remove difficult contaminants including fine aerosols and low surface tension liquids such as amines, glycol and lube oils.
Request a Quote for
TRI-SHiELD Series (JRGC) Gas Coalescing Cartridges
Send us the details and we will get back to you.
Gas Coalescing elements are available in a wide variety of materials and orientations to ensure our customers have complete control over their gas filtration process needs.
TRI-SHiELD™ Vertical Reverse Flow Coalescer Cartridges for removal of fine aerosols and low surface tension liquids.
Contact us to request a quote today.
| Specifications | Vertical Reverse Flow Coalescer Cartridge | |||||||||||
| Flow Direction | Inside to outside | |||||||||||
| Nominal Sizes | 3.50”, 4.50”, 5.50” | |||||||||||
| Standard Lengths | 12”, 24”, 36”, 48” *Other lengths available upon request |
|||||||||||
| Media Type | Depth Style Polyester Depth Style Polypropylene Drain layer: Needled Polyester |
|||||||||||
| Hardware Materials | Core: Tin Plated, Stainless Gasket: Buna, Viton End caps: Tin Plated, Stainless, Nylon |
|||||||||||
| End Cap Configuration | Closed end with bolt hole Double open ended | |||||||||||
| Efficiency | Up to 99.99% 0.3µ & larger of both liquid & solids | |||||||||||
| Maximum Temperature | 240-degree F for Polyester (above 200-degree F requires a core) 180-degree F for Polypropylene | |||||||||||
| Recommended Change-out PSID | 12-15 PSID | |||||||||||
| Common Applications | Compressor Suction/ Discharge Amine Contactor protection Glycol Contactor protection Molecular Sieve Contactor Fuel Gas Conditioning Syn Gas Cleanup Metering Stations |
Custody Transfer Natural Gas Transmission Natural Gas Gathering Catalyst protection PSA systems (pressure swing adsorption) Mercury Guard Bed protection Lo-NOx Burner protection |
||||||||||
| Criteria | Performance | Cartridge Design Advantage | |||||||||||||
| Pressure Drop | Up to 25% less pressure drop at start-up compared to standard polyester depth media. | Engineered media with Tri-Lobal fibers for improved void space. | |||||||||||||
| Efficiency | 15X fewer contaminants downstream of the filtration solution. | Provides a larger effective surface area per media volume while creating an environment for stable droplet growth. | |||||||||||||
| Capture Probability | High | Contaminant particles lose energy and velocity as they attempt to maneuver the gradient media matrix. | |||||||||||||
• The blend of Tri-Lobal and cylindrical fibers in combination with the engineered gradient depth all in the same media matrix provides superior dirt loading and enhances coalescing compared to conventional depth cartridges.
• Media layers can be customized for challenging applications and multiple surface coating options provide filtration flexibility.
• Protects critical equipment and enables increased uptime with fewer unexpected failures resulting in an improved total cost of ownership.
• Textured cartridge with a coarse finish designed to improve filtration performance.
TRI-SHiELD media JRGC series is designed for vertical coalescers used in coalescing applications such as compressor discharge, contactor protection, contactor discharge to remove difficult contaminants including fine aerosols and low surface tension liquids such as amines, glycol and lube oils.
