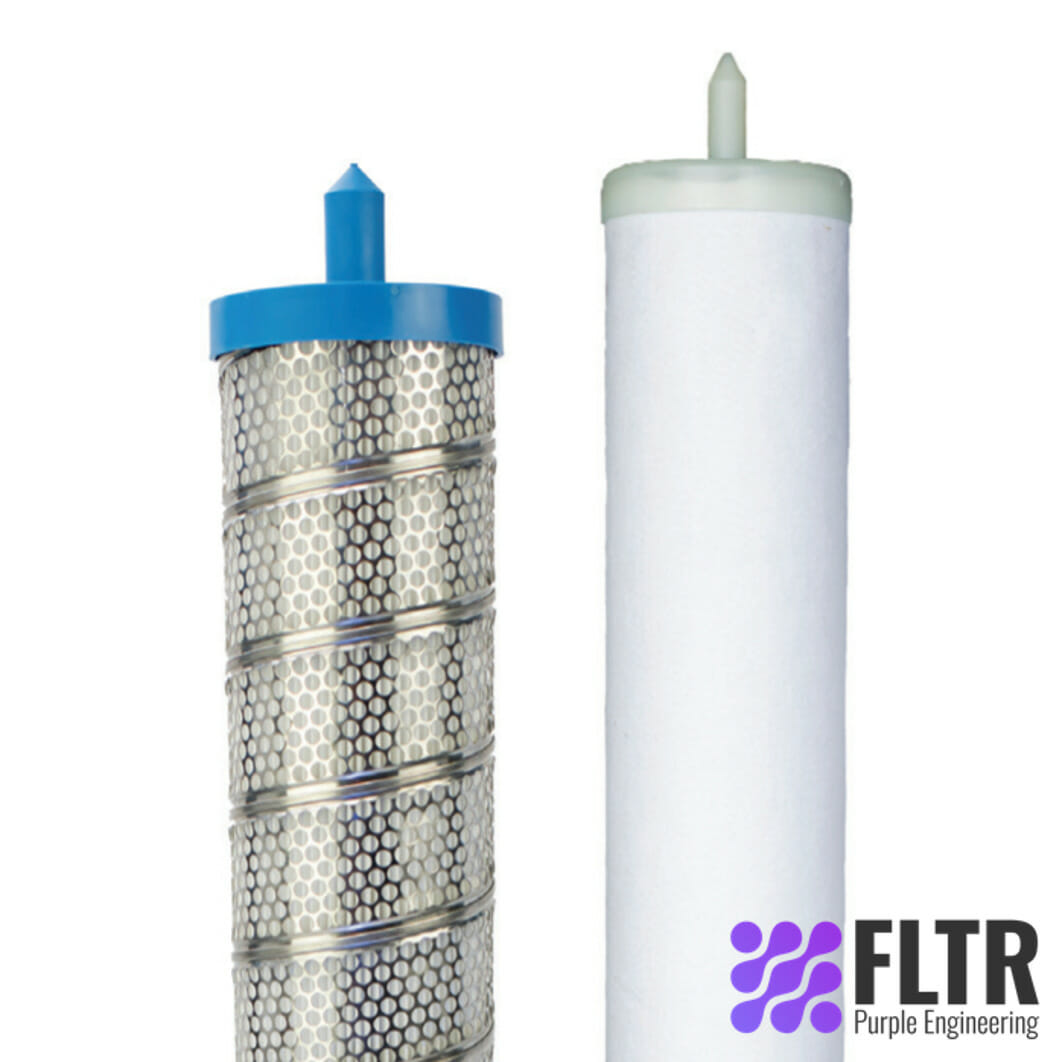

Twist-LOK™ Series (JGCP / JGCC) Gas Coalescing Cartridges
Twist-LOK™ Series (JGCP / JGCC) Gas Coalescing Cartridges
Versatile Phase Separation Filters
Twist-LOK Filter’s versatile separation system offers superior contaminant removal and coalescing efficiency with the added feature of our patent pending Twist-LOK locking mechanism allowing the ability to customize filter and coalescer cartridges, as needed, to suit specific operating conditions. Designed to remove liquid and solid contaminants from natural and process gas, the assembled cartridge provides both a first stage “outside-to-inside” flow direction filter element and a second stage “inside-to-outside” coalescer element.
Request a Quote for
Twist-LOK™ Series (JGCP / JGCC) Gas Coalescing Cartridges
Send us the details and we will get back to you.
Innovative new design optimizes performance and reliability while processing high liquid loads with exceptional solid particulate handling. Designed to remove liquid and solid contaminants from natural and process gas, the assembled Twist-LOK™ cartridge provides both a first stage “outside to inside” flow direction filter coalescing element and a second stage “inside to outside” flow coalescing element. With traditional filtration/coalescing elements, both stages have to be replaced; often disposing of a still viable second stage element. The Twist-LOK™ Series allows the option to replace and optimize the first stage without having to replace the second stage.
Contact us to request a quote today
| Criteria | Detail |
| Dimensions | Nominal OD: 4.5” Nominal length: Standard lengths in 73”, 82”, 94” (other lengths available) |
| Construction Materials ***all media packs will have epoxy coated screen on both sides for additional/robust support*** |
End caps: Nylon Orings: Viton (standard), buna and EPDM also available Media: Cellulose, Polypro, Fiberglass, Nylon, K media, cotton, polyester Standard gasket materials are offered (Buna, Viton, EPDM and HNBR) |
| Core | Tin-plated or Stainless options available |
| Flow Direction | First Stage: Outside to In flow Second Stage: Inside to Out flow |
| Operating Temperature | Polypropylene with polypro support: 180 deg F Fiberglass with polyester support: 240 deg F Fiberglass with nylon support: 300 deg F Cellulose: 275 deg F Cotton: 275 deg F K media: 240 deg F Nylon media: 300 deg F Polyester media: 240 deg F |
| Recommended change out PSID | 15 psid (based on process) |
| Micron ratings | Standard efficiency is 0.3 micron (other efficiencies available) |
• Specifically designed for the Jonell Systems Sentinel TL™ horizontal coalescer
• Twist-LOK™ Series integrated solids shield helps prevent solids build up behind the gasket allowing for easier removal of elements
• Efficient removal of liquid aerosols and solid particulates to protect downstream equipment
• Permits replacement of first stage filter elements while the second stage coalescing elements remains in the vessel
• Twist-LOK™ Series uses the patent pending gradient fit sealing system resulting in multiple sealing points that have proven critical in the field in successfully reaching recommended change out differential pressure. The result is a much greater ability to seal and reach terminal pressure even in cases where risers are out of round or bent
• Twist-LOK™ Series locking mechanism provides structural re-enforcement and shielding of riser gasket from incoming solids
• Specially designed dust guard strengthens and helps prevent element collapse and gasket sealing failure
• Synthetic materials thermally bonded to resists erosion at high velocitiesri
Designed to remove liquid and solid contaminants from natural and process gas, the assembled Twist-LOK™ cartridge provides both a first stage “outside to inside” flow direction filter coalescing element and a second stage “inside to outside” flow coalescing element. With traditional filtration/coalescing elements, both stages have to be replaced; often disposing of a still viable second stage element. The Twist-LOK™ Series allows the option to replace and optimize the first stage without having to replace the second stage.
