Ultra high efficiency tank filter without partition
Ultra high efficiency tank filter without partition
Ultra high-efficiency tank filter without partition efficiency level H14~U17 is available. Use special ultra-fine glass fiber filter paper as filter material, featuring high efficiency and low resistance. It can be equipped with double-sided protection net, to protect filter material, with good strength with Light, thin and compact structure.
Request a Quote for
Ultra high efficiency tank filter without partition
Send us the details and we will get back to you.
Ultra high-efficiency tank filter without partition efficiency level H14~U17 is available. Use special ultra-fine glass fiber filter paper as filter material, featuring high efficiency and low resistance. It can be equipped with double-sided protection net, to protect filter material, with good strength with Light, thin and compact structure.
Contact us to request a quote today.
| Outline dimension
W×H×D (mm) |
Filtering area (m2) | Nominal air delivery
(m3/h) |
Initial pressure drop
(Pa) |
| 610×610×80 | 9.5 | 800 |
≤ 220 |
| 305×305×93 | 2.7 | 250 | |
| 610×610×93 | 13 | 1000 | |
| 1220×610×93 | 27 | 2000 | |
| 305×305×104 | 3.4 | 320 |
≤ 250 |
| 610×610×104 | 13.9 | 1280 | |
| 1220×610×104 | 28 | 2560 |
Highest temperature ℃ 80℃ maximum humidity: 80%.

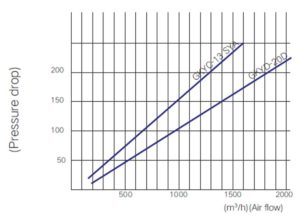

Pressure drop-air flow
It is used in electronic, pharmaceutical industry, clean room, efficient air supply outlet, laminar flow equipment, etc.
