W8T Series Bag Filter Housings
W8T Series Bag Filter Housings

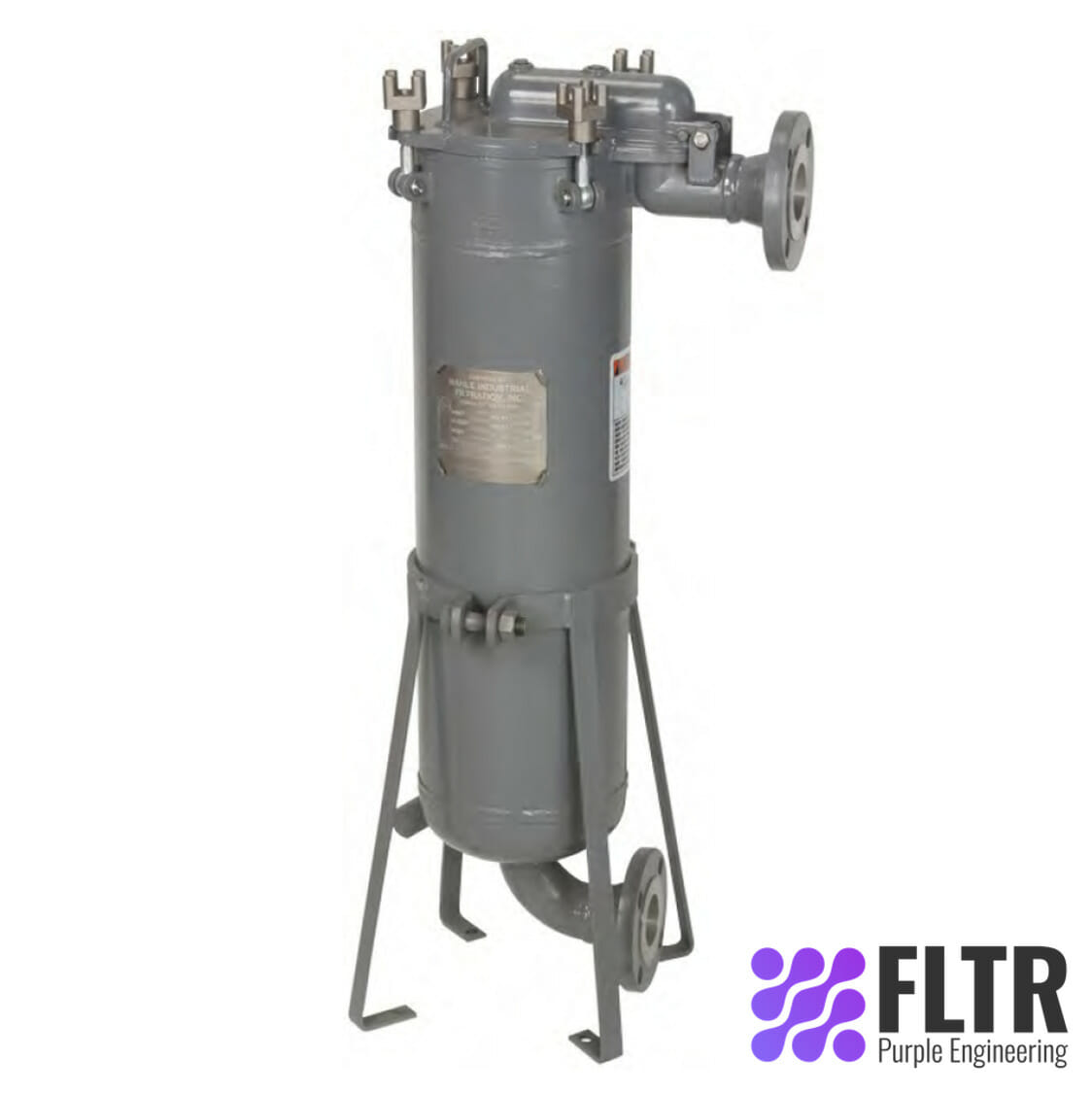

The W8T series (formerly Nowata), top entry, single bag filter housings are designed to withstand years of field and plant operation. These high quality, industrial and commercial service housings come standard with a bottom outlet with elbow (as shown). A straight bottom outlet, or a side outlet are also available as optional configurations.
Request a Quote for
W8T Series Bag Filter Housings
Send us the details and we will get back to you.
BAG FILTER HOUSINGS
ASME Code, Top Entry Bag Housing for #2 Size Bags
The standard configuration of these units assures that they can be easily incorporated into your system. In applications requiring high volume filtration, the W8T series, top entry, single bag filter housings will provide rugged and dependable service at a price that makes them the sure choice. The design of these housings allows the use of standard and high efficiency bags plus a wide variety of o-ring materials with no change in design. This means that whether it’s hydrocarbons, glycol, coolant or water, the W8T series, top entry, single bag filter housing will fit your needs.
FEATURES
• Standard vessels are ASME code (Non-code vessels are also available)
• Standard – All wetted parts 316 Stainless Steel
• 150 psi working pressure, temp. 250 °F max. (Higher temperatures available upon request)
• Adjustable leg assembly allows the elevation to be adjusted in the field
• For use with standard #2 bag size (7″ x 30″)
• Designed for use with heavy duty, high efficiency bags or standard thickness conventional filter bags
• Stainless steel perforated basket included
• 2 inch 150# raised faced inlet and outlet are standard
• Designed to withstand years of field and plant operation
Contact us to request a quote today.
| A | B | C | D | E | F | G | H | J | K | L | M | N | P |
| 49¾ max 39¾ min | 453∕8 max 353∕8 min |
313∕8 | 11 | 55∕8 | 2″ 150# RF Flange |
¼” FNPT Gauge |
¾” FNPT Drain |
53∕8 | Bar knob with swing bolt | ¼” FNPT vent and gauge | 16 | 7¾ | Bolt holes: 5∕8” diameter, 4 places |
Dimensions in inches except where noted. Due to our continuing program of product improvement, specifications are for reference only and subject to change without notice. Dimensions are approximate values and not intended for piping specifications.
NOTES:
Approximate shipping weight: 125 lbs. Required clearance for basket removal is approximately 76 inches
STANDARD CONSTRUCTION
The standard material of construction for the W8T series top entry single bag housing is 316 Stainless Steel. The closure lid assembly is an investment casting of the same material. The leg assembly and bolting are painted or plated carbon steel. Standard o-ring material is Viton in both front and rear seals. The standard drain port is 3/4 inch FNPT, which is mounted in the bottom of the elliptical. There are two 1/4 inch FNPT vent/gauge ports located at the top of the lid assembly.
Both the front and rear o-ring grooves are located on the body of the unit. This allows the o-ring to maintain its placement during bag changeout. The standard material of construction for the baskets is 316 stainless steel. Customized baskets or housing configuration is available upon customer request.
The design of these housings allows the use of standard and high efficiency bags plus a wide variety of o-ring materials with no change in design. This means that whether it’s hydrocarbons, glycol, coolant or water, the W8T series, top entry, single bag filter housing will fit your needs.
