Service Application:

Designed to strain foreign matter from pipelines, offering crucial protection for pumps, meters, valves, and other mechanical equipment.
Effective in both steam and liquid systems, providing versatility and reliability.

Highlights:

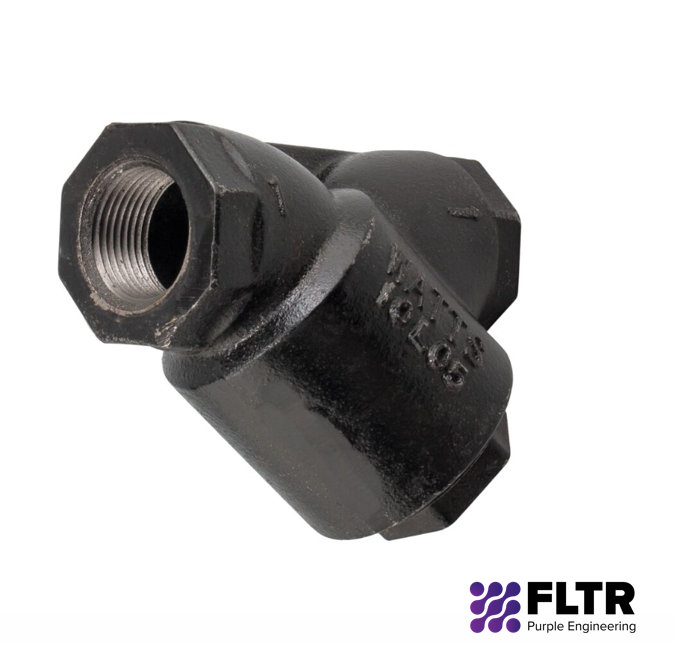

Efficient Design: 45° wye-pattern cast iron body for efficient flow and long-lasting service.
Threaded Connections: NPT threaded ends and threaded retainer cap for easy installation.
Self-Aligning Screen: Machined seat ensures the screen aligns perfectly, providing reliable filtration.
Easy Maintenance: Tapped blow-down connection and non-asbestos gasket facilitate straightforward servicing.

Construction and Materials:

Body and Retainer Cap: Cast iron, ASTM A-126 Class B.
Screen: Stainless steel for durability and ease of cleaning.
Gasket: PTFE for secure sealing.
Blow-Down Connection: Tapped for convenient debris removal.

Operational Benefits:

Protects system components from debris and particulates, ensuring smooth operation.
Easy to install and maintain with threaded connections and retainer cap.
Self-aligning screen and precision machined seat enhance filtration efficiency.

Pressure/Temperature Ratings:

Maximum Operating Pressure:
400psi (27.6 bar) WOG at 150°F (66°C)
250psi (17.2 bar) WSP at 406°F (208°C)

Standard Screens:

Sizes 1/4″ – 2-1/2″: 20 mesh 304 stainless steel.
Size 3″: 3/64″ perforated 304 stainless steel.

For detailed specifications and further assistance, contact FLTR for technical support and certified drawings.
