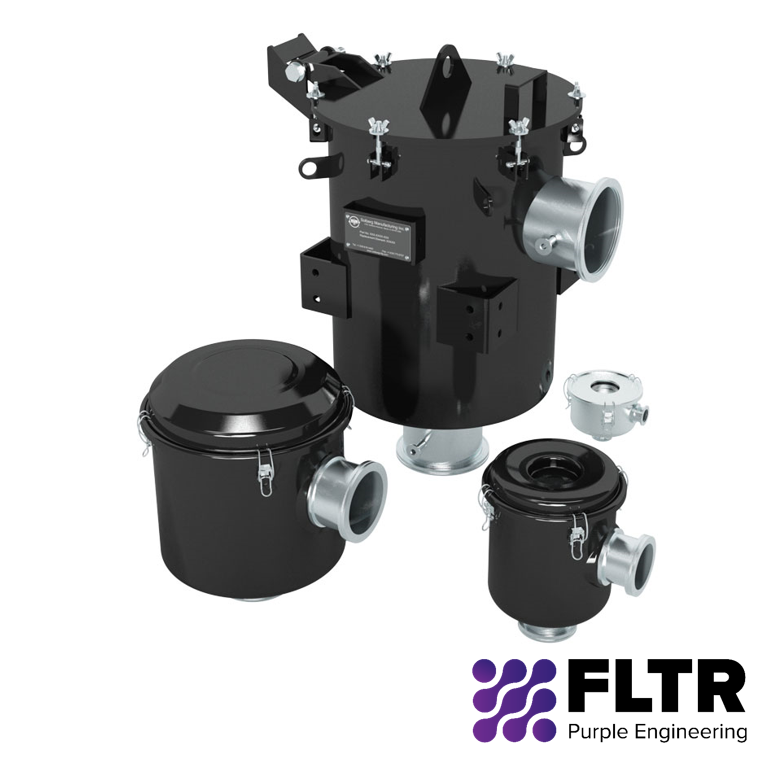

WL Series: Medium to High Vacuum
WL Series: Medium to High Vacuum
WL Series medium to high vacuum filters are designed for industrial and Semicon processes that require a verified leak rate and operate in medium to high vacuum conditions. The WL Series has various vacuum-specific connection options, including ISO vacuum fittings and numerous filter media options for superior protection and system longevity. Housings in this series are 100% helium-leak tested to ensure vacuum integrity with verified leak rates of 1x 10-5 mbar l/s or better.
Request a Quote for
WL Series: Medium to High Vacuum
Send us the details and we will get back to you.
WL Series medium to high vacuum filters are designed for industrial and Semicon processes that require a verified leak rate and operate in medium to high vacuum conditions. The WL Series has various vacuum-specific connection options, including ISO vacuum fittings and numerous filter media options for superior protection and system longevity. Housings in this series are 100% helium-leak tested to ensure vacuum integrity with verified leak rates of 1x 10-5 mbar l/s or better.
WL Inlet Vacuum Filter Series offers multiple configurations, including:
- High-Efficiency Filtration
- Chemical Adsorption
- High-Temperature Materials of Construction
Contact us to request a quote today.
| Model | Inlet Connection Size | Outlet Connection Size | Connection Type | Flow (m3/hr) | Dim A (mm) | Dim B (mm) | Dim C (mm) | Dim D (mm) | Media | Micron Rating | Replacement Element |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WL-235P-K100 | K100 | K100 | ISO Flange | 885 | 716.00 | 229.00 | 311.00 | 470.00 | Polyester | 5.0 | 235P |
| WL-238-K100B | K100 | K100 | ISO Flange | 883 | 411.00 | 236.00 | 337.00 | 232.00 | Paper | 2.0 | 238 |
| WL-239-K100B | K100 | K100 | ISO Flange | 883 | 411.00 | 236.00 | 337.00 | 232.00 | Polyester | 5.0 | 239 |
| WL-335P-K100 | K100 | K100 | ISO Flange | 885 | 716.00 | 229.00 | 311.00 | 470.00 | Polyester | 5.0 | 335P |
| WL-275P-K160 | K160 | K160 | ISO Flange | 1870 | 767.00 | 305.00 | 413.00 | 521.00 | Polyester | 5.0 | 275P |
| WL-375P-K160 | K160 | K160 | ISO Flange | 1870 | 767.00 | 305.00 | 413.00 | 521.00 | Polyester | 5.0 | 375P |
| WL-377P-K200 | K200 | K200 | ISO Flange | 3060 | 1116.00 | 356.00 | 518.00 | 648.00 | Polyester | 5.0 | 377P |
| WL-385P-K250 | K250 | K250 | ISO Flange | 4930 | 1364.00 | 410.00 | 619.00 | 864.00 | Polyester | 5.0 | 385P |
| WL-485P-K320 | K320 | K320 | ISO Flange | 7935 | 1364.00 | 410.00 | 619.00 | 864.00 | Polyester | 5.0 | 485P |
| WL-685P-K320 | K320 | K320 | ISO Flange | 8415 | 1648.00 | 410.00 | 619.00 | 1143.00 | Polyester | 5.0 | 685P |
| WL-850-K63B | K63 | K63 | ISO Flange | 357 | 292.00 | 152.00 | 195.00 | 165.00 | Paper | 2.0 | 850 |
| WL-851-K63B | K63 | K63 | ISO Flange | 357 | 292.00 | 152.00 | 195.00 | 165.00 | Polyester | 5.0 | 851 |
| WL-824-NW16B | NW16 | NW16 | ISO Flange | 40 | 99.00 | 67.00 | 95.00 | 57.00 | Paper | 2.0 | 824 |
| WL-824-NW16EN | NW16 | NW16 | ISO Flange | 40 | 99.00 | 67.00 | 95.00 | 57.00 | Paper | 2.0 | 824 |
| WL-825-NW16B | NW16 | NW16 | ISO Flange | 40 | 99.00 | 67.00 | 95.00 | 57.00 | Polyester | 5.0 | 825 |
| WL-825-NW16EN | NW16 | NW16 | ISO Flange | 40 | 99.00 | 67.00 | 95.00 | 57.00 | Polyester | 5.0 | 825 |
| WL-824-NW25B | NW25 | NW25 | ISO Flange | 43 | 99.00 | 67.00 | 95.00 | 57.00 | Paper | 2.0 | 824 |
| WL-824-NW25EN | NW25 | NW25 | ISO Flange | 43 | 99.00 | 67.00 | 95.00 | 57.00 | Paper | 2.0 | 824 |
| WL-825-NW25B | NW25 | NW25 | ISO Flange | 43 | 99.00 | 67.00 | 95.00 | 57.00 | Polyester | 5.0 | 825 |
| WL-825-NW25EN | NW25 | NW25 | ISO Flange | 43 | 99.00 | 67.00 | 95.00 | 57.00 | Polyester | 5.0 | 825 |
| WL-842-NW25B | NW25 | NW25 | ISO Flange | 60 | 111 | 86 | 146 | 70 | Paper | 2.0 | 842 |
| WL-842-NW25EN | NW25 | NW25 | ISO Flange | 60 | 111 | 86 | 146 | 70 | Paper | 2.0 | 842 |
| WL-843-NW25B | NW25 | NW25 | ISO Flange | 60 | 111 | 86 | 146 | 70 | Polyester | 5.0 | 843 |
| WL-843-NW25EN | NW25 | NW25 | ISO Flange | 60 | 111 | 86 | 146 | 70 | Polyester | 5.0 | 843 |
| WL-842-NW40B | NW40 | NW40 | ISO Flange | 94 | 111 | 86 | 146 | 70 | Paper | 2.0 | 842 |
| WL-842-NW40EN | NW40 | NW40 | ISO Flange | 94 | 111 | 86 | 146 | 70 | Paper | 2.0 | 842 |
| WL-843-NW40B | NW40 | NW40 | ISO Flange | 94 | 111 | 86 | 146 | 70 | Polyester | 5.0 | 843 |
| WL-843-NW40EN | NW40 | NW40 | ISO Flange | 94 | 111 | 86 | 146 | 70 | Polyester | 5.0 | 843 |
| WL-848-NW40B | NW40 | NW40 | ISO Flange | 136 | 183.00 | 118.00 | 187.00 | 127.00 | Paper | 2.0 | 848 |
| WL-848-NW40EN | NW40 | NW40 | ISO Flange | 136 | 183.00 | 118.00 | 187.00 | 127.00 | Paper | 2.0 | 848 |
| WL-849-NW40B | NW40 | NW40 | ISO Flange | 136 | 183.00 | 118.00 | 187.00 | 127.00 | Polyester | 5.0 | 849 |
| WL-849-NW40EN | NW40 | NW40 | ISO Flange | 136 | 183.00 | 118.00 | 187.00 | 127.00 | Polyester | 5.0 | 849 |
| WL-850-NW50B | NW50 | NW50 | ISO Flange | 492 | 283 | 142 | 222 | 152 | Paper | 2.0 | 850 |
