CSF10- features the Course Screen Flush (CSF) series of automatic self-cleaning water filters for applications that don’t require fine filtration. Filters are available with wedge wire, perforated SST, or perforated PVC screens. Cleaning is achieved by a blow-off that opens by differential pressure, timer, or manually for a very short duration.
Request a Quote for
CSF Series – CSF10
Send us the details and we will get back to you.

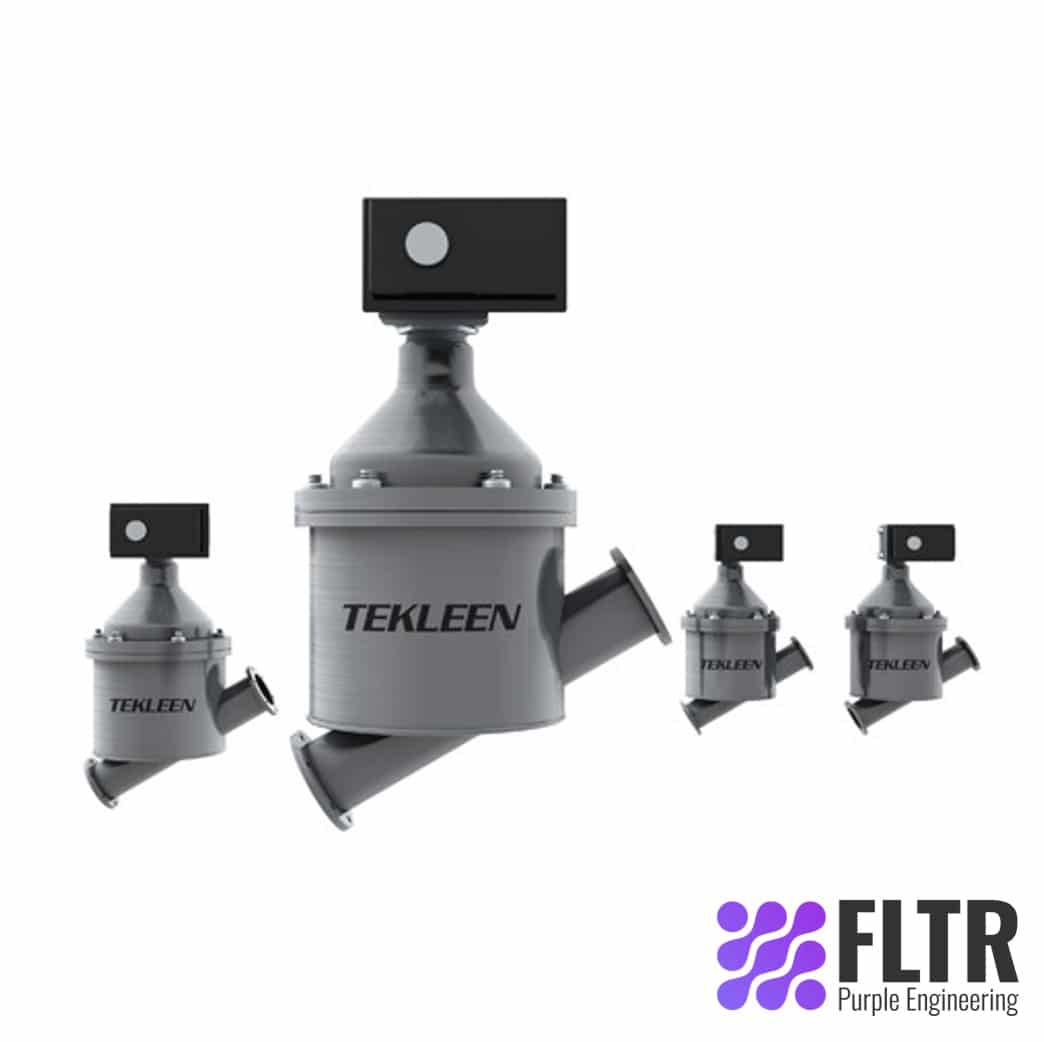

TEKLEEN® features the Course Screen Flush (CSF) series of automatic self-cleaning water filters for applications that don’t require fine filtration. Filters are available with wedge wire, perforated SST, or perforated PVC screens. Cleaning is achieved by a blow-off that opens by differential pressure, timer, or manually for a very short duration.
Standard Features
- Line Sizes: 2″ – 20″
- Flow Rate: 100 – 10,000 GPM
- Screen Opening: 1/4″ – 1/2″
- Material: SST or Carbon Steel
- Pressure: 40 – 150 PSI
- Temperature to: 160°F (210°F Optional)
- Flush Valve Size: 2″, 3″, 4″, 6″
- Flush Flow Rate: 240 – 640 GPM
- Flush Duration: 5 – 10 Seconds
- Flushing Volume: 20 – 110 Gallons
Contact us to request a quote today.
| Filter Model | Flange Size | Screen Area | Max Flow | Empty Weight |
| (mm) | (m²) | (m³/h) | (kgs) | |
| CSF8-S | 200 | 0.52024 | 397.25 | 124.85 |
Contact us for more information.
Contact us for more information.
