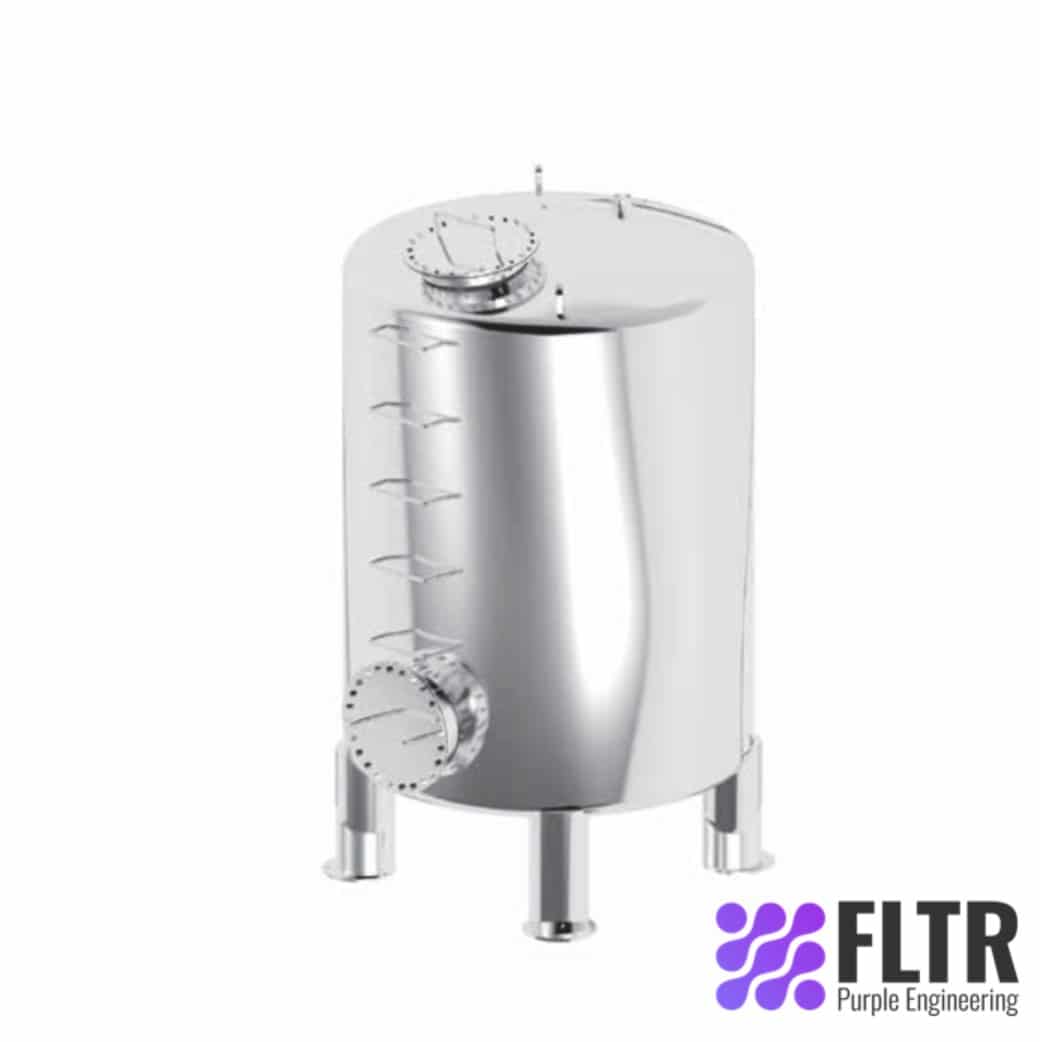

Large Sand Filter Housing-LM
Large Sand Filter Housing-LM
Large Sand Filter Housing-LM is an ACID-Washing & Polishing exterior, and interior, Cartridge Housing capable of operating at 40 Celsius of temperature and 150psi of pressure.
Request a Quote for
Large Sand Filter Housing-LM
Send us the details and we will get back to you.
Large Sand Filter Housing-LM is an ACID-Washing & Polishing exterior, and interior, Cartridge Housing capable of operating at 40 Celsius of temperature and 150psi of pressure.
| LM | 10 | 4 | 3 | AA |
| Model | Volume | Material | Man Hole Size | Exterior / Interior Surface Finishing |
| LM | 5-500L | 4-304 | 3-300 | A – ACID-Washing |
| 10-1000L | 6-316 | 4-400 | P- Polishing | |
| 15-1500L | 6L-316L | 5-500 | ||
| 20-2000L | ||||
| 25-2500L | ||||
| 30-3000L | ||||
| 35-3500L | ||||
| 40-4000L | ||||
| 45-4500L | ||||
| 50-5000L |
| Model | A m/m | B m/m | C m/m | D(PCD) | E m/m | N1 Vent | N2 Drain | Weight | Volume |
| m/m | |||||||||
| LM5 | Ø762 | 1680 | 1100 | Ø899 | Ø10 | 1/2″PT-F | 2″PT-F | 305Kg | 500L |
| LM10 | Ø970 | 2010 | 1400 | Ø1130 | Ø10 | 1/2″PT-F | 2″PT-F | 360Kg | 1000L |
| LM15 | Ø1200 | 1945 | 1300 | Ø1474 | Ø18 | 1/2″PT-F | 2″PT-F | 385Kg | 1500L |
| LM20 | Ø1300 | 2165 | 1500 | Ø1574 | Ø18 | 1/2″PT-F | 2″PT-F | 425Kg | 2000L |
| LM25 | Ø1500 | 2200 | 1500 | Ø1774 | Ø18 | 2″PT-F | 2″PT-F | 495Kg | 2500L |
| LM30 | Ø1500 | 2500 | 1800 | Ø1774 | Ø18 | 2″PT-F | 2″PT-F | 540Kg | 3000L |
| LM35 | Ø1500 | 2700 | 2000 | Ø1774 | Ø18 | 2″PT-F | 2″PT-F | 570Kg | 3500L |
| LM40 | Ø1500 | 3000 | 2300 | Ø1774 | Ø18 | 2″PT-F | 2″PT-F | 610Kg | 4000L |
| LM45 | Ø1500 | 3300 | 2600 | Ø1774 | Ø18 | 2″PT-F | 2″PT-F | 655Kg | 4500L |
| LM50 | Ø1500 | 3500 | 2800 | Ø1774 | Ø18 | 2″PT-F | 2″PT-F | 685Kg | 5000L |
