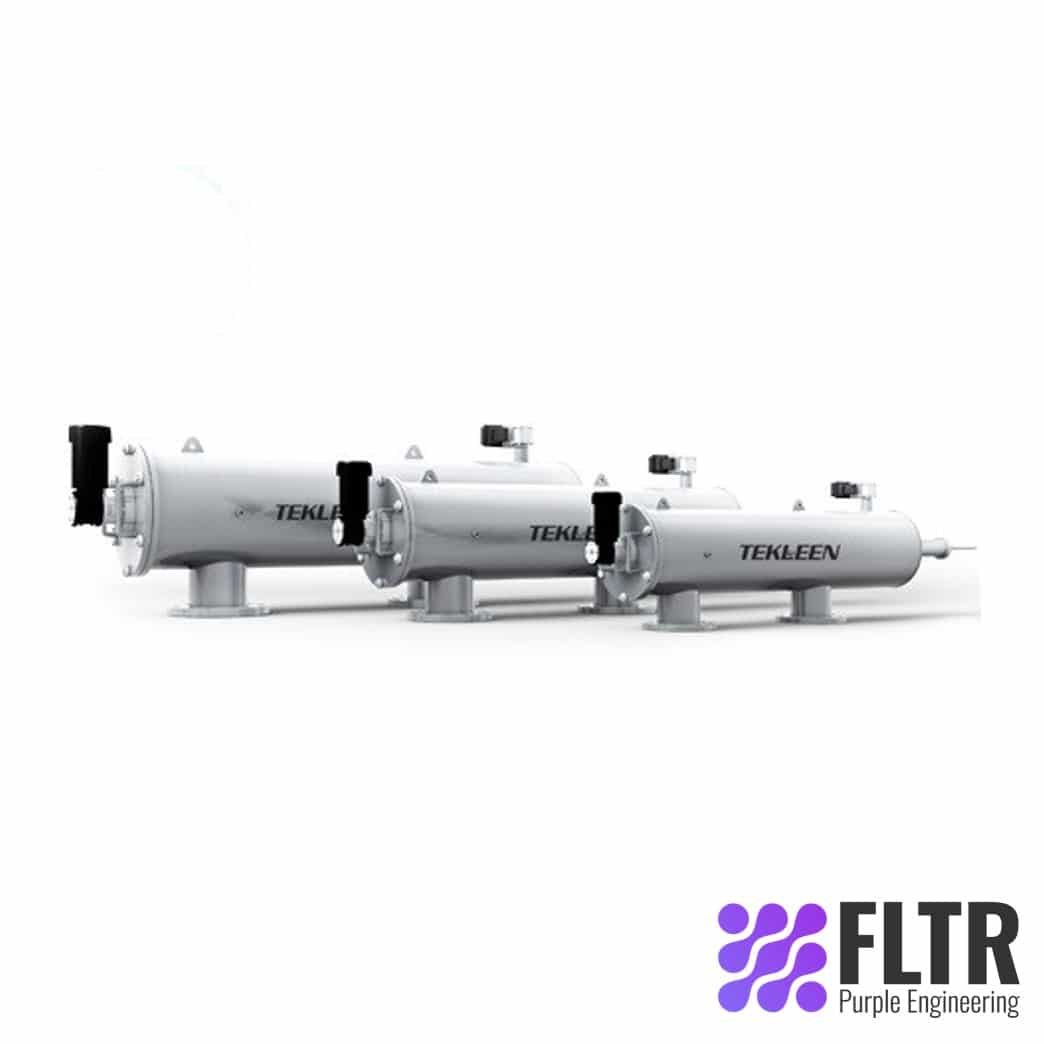

The new line of fully automatic, self-cleaning water filters with working pressure as low as 15 psi – the Low-Pressure Filter (LPF) Series. They are available in a wide range of industrial configurations and are designed and manufactured in accordance to ANSI and ASME standards. ASME U stamp is an option. Sizes range from 2″ – 36″, flow rates from 100 – 20,000 gpm, screen mesh from 10µ – 3,000µ.

The filters are available in stainless steel, carbon steel with powder epoxy coating, and titanium. Clean filter pressure drop with 100µ screen is less than 1 psi at the rated flow of the filter.

Standard Features

• Line Sizes: 2″ – 24″
• Flow Rate: 100 – 20,000 GPM
• Screen Opening: 10µ – 2,000µ
• Material: SST or Carbon Steel
• Pressure: 15 – 150 PSI
• Temperature to: 160°F (210°F Optional)
• Flush Valve Size: 1″, 1.5″, & 2″
• Flush Flow Rate: 60 – 160 GPM
• Flush Duration: 5 – 10 Seconds
• Flushing Volume: 5 – 30 Gallons
• NSF Approved

Basic Functionality
