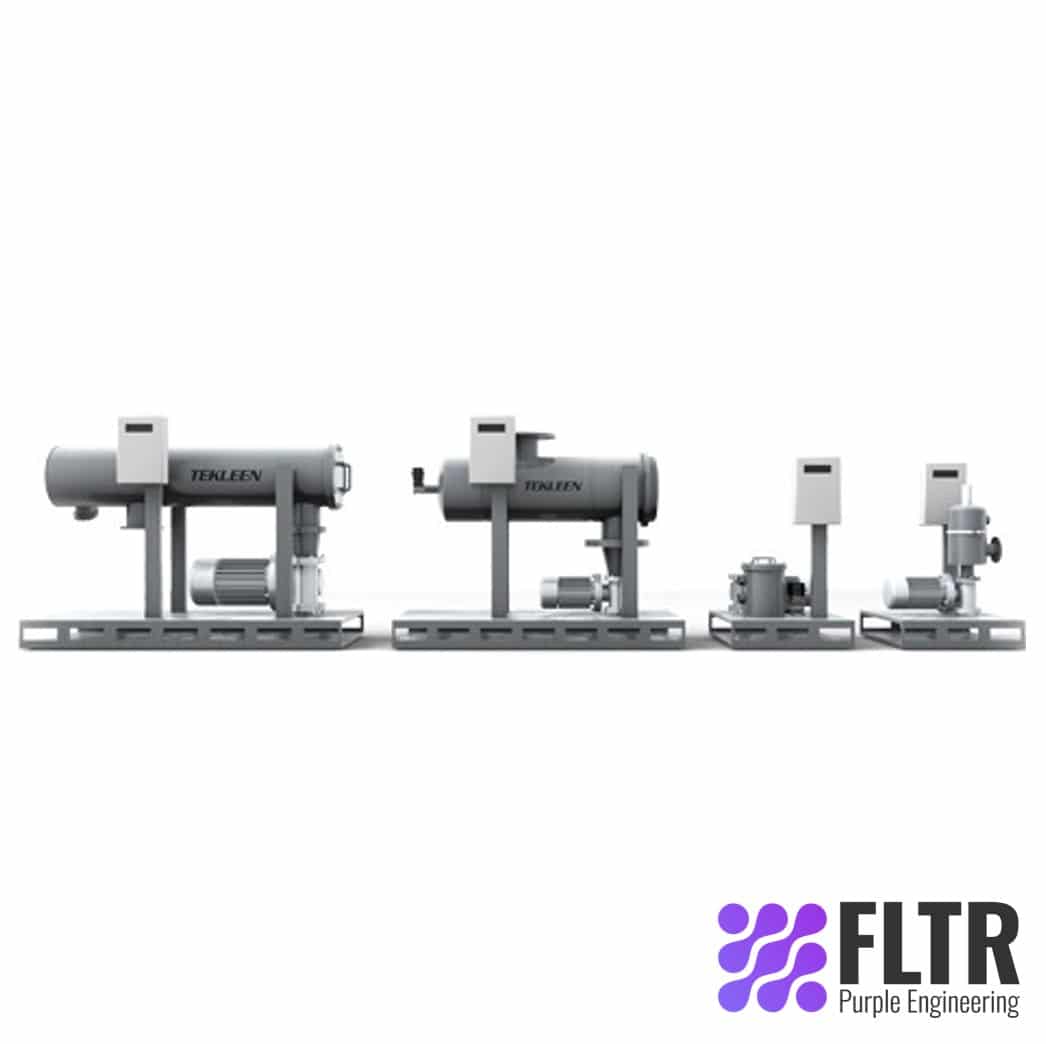

Skid Series – Skid OBF3-I w/ Pump
Skid Series – Skid OBF3-I w/ Pump
Skid OBF3-I w/ Pump is the compact and immediate, turnkey solution for many filtration needs. The skids are easily transported by a forklift to any mounting location. Light in weight and small in size, they offer a wide flow from 10-1,300 gpm and a filtration range from 10µ – 2,000µ. They feature SST centrifugal pumps from 3 to 50 h/p, with any voltage. Standard is 100% SST construction at a very competitive price.
Request a Quote for
Skid Series – Skid OBF3-I w/ Pump
Send us the details and we will get back to you.
Filter Skids are the compact and immediate, turnkey solution for many filtration needs. The skids are easily transported by a forklift to any mounting location. Light in weight and small in size, they offer a wide flow from 10-1,300 gpm and a filtration range from 10µ – 2,000µ. They feature SST centrifugal pumps from 3 to 50 h/p, with any voltage. Standard is 100% SST construction at a very competitive price.
Standard Features
- Line Sizes: 2″ – 8″
- Flow Rate: 10 – 1,300 GPM
- Screen Opening: 10µ – 2,000µ
- Material: SST 316L or Carbon Steel
- Pressure: 15 – 150 PSI
- Temperature to: 160°F (210°F Optional)
- Flush Valve Size: 1″, 2″
- Flush Flow Rate: 60 – 160 GPM
- Flush Duration: 5 – 10 Seconds
- Flushing Volume: 5 – 30 Gallons
Contact us to request a quote today.
| Filter Model | Flange Size | Screen Area | Max Flow | Empty Weight |
| (mm) | (m²) | (m³/h) | (kgs) | |
| Skid OBF3-I w/ Pump | 80 | 0.13935 | 56.75 | 90.8 |
