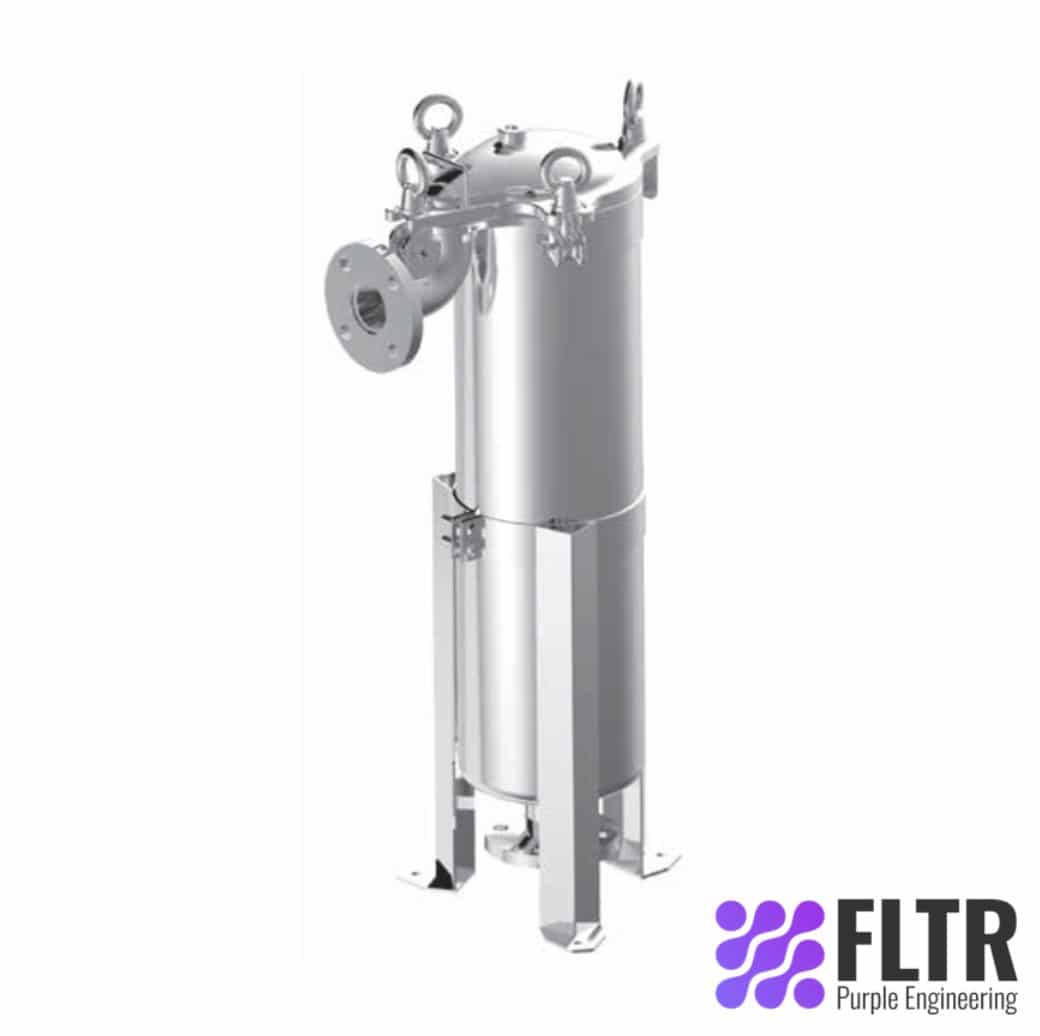

Top Loading Single Filter Bag Housing (Bag No.1-No.2) -KU
Top Loading Single Filter Bag Housing (Bag No.1-No.2) -KU
Top Loading Single Filter Bag Housing (Bag No.1-No.2) -KU is an ACID-Washed, Electrolyzed, Polished and Sand Blasted exterior and interior, Filter Bag Housing capable of operating at 75 0 C and 150psi of pressure which is designed for 100 0 C of temperature and 150psi of pressure.
Request a Quote for
Top Loading Single Filter Bag Housing (Bag No.1-No.2) -KU
Send us the details and we will get back to you.
Top Loading Single Filter Bag Housing (Bag No.1-No.2) -KU is an ACID-Washed, Electrolyzed, Polished and Sand Blasted exterior and interior, Filter Bag Housing capable of operating at 75 0 C and 150psi of pressure which is designed for 100 0 C of temperature and 150psi of pressure.
| KU | 2 | 4 | SB | 2 | 10K | E | EA |
| Model | No. of Rounds | Material | Inlet & Outlet | Inlet & Outlet Size | Inlet & Outlet Type | O-ring | Exterior/ Interior Surface Finishing |
| KU | 1-Bag No.1 2-Bag No.2 |
4 – 304
6 – 316 6L – 316L |
SS – Side In&
Side Out
SB – Side In & Bottom Out |
2-2″ 221-2-1/2″ 3-3″
|
150P – ANSI
10K – JSI PN10 – DIN C – CLAMP PF – PTF NF – NPTF PM – PTM NM – NPTM |
E-EPDM
N-NBR V-VITON S-SILICON TS – TEFLON+SILICON |
A- ACID-Washing
E- Electrolyze P- Polishing S-Sand Blasting
|
| Model | A m/m | B m/m | C m/m | D m/m | E m/m | F(PCD) | G | M3/Hr | GPM | Weight | Volume |
| m/m | m/m | ||||||||||
| KU1 | Ø216 | 555 | 390 | 270 | 515 | Ø310 | Ø12 | 20 | 90 | 40kg | 16L |
| KU2 | Ø216 | 905 | 740 | 270 | 515 | Ø310 | Ø12 | 45 | 200 | 48kg | 31L |
